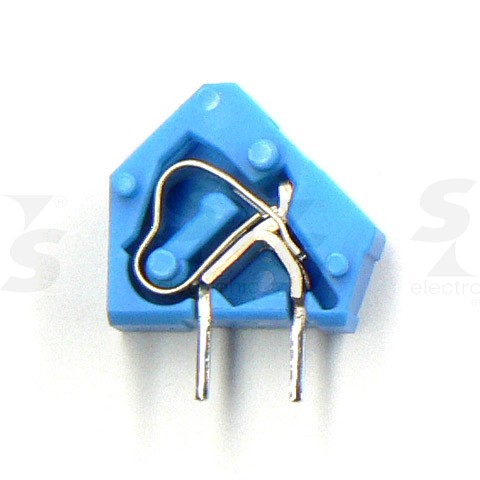

236-744 WAGO
Виробник: WAGO
Category: PCB terminal blocks
Description: PCB terminal block; angled 45°; 5mm; ways: 1; on PCBs; 0.08÷2.5mm2
Type of connector: PCB terminal block
Spatial orientation: angled 45°
Contacts pitch: 5mm
Number of ways: 1
Mechanical mounting: on PCBs
Electrical mounting: spring clamp; THT
Wire cross-section: 0.08...2.5mm2
Wire size: 28AWG...12AWG
Connector: terminal
Contact plating: tinned
Current rating: 24A
Height: 13mm
Colour: blue
Rated voltage: 0.25kV
Body material: polyamide 66
Connectors features: assembling possibility
Contact material: copper
Operating temperature: -60...105°C
Depth: 14mm
Flammability rating: UL94V-0
Connector pinout layout: 1x1
Conform to the norm: UL
Number of terminals: 1
Connector series: 236
Category: PCB terminal blocks
Description: PCB terminal block; angled 45°; 5mm; ways: 1; on PCBs; 0.08÷2.5mm2
Type of connector: PCB terminal block
Spatial orientation: angled 45°
Contacts pitch: 5mm
Number of ways: 1
Mechanical mounting: on PCBs
Electrical mounting: spring clamp; THT
Wire cross-section: 0.08...2.5mm2
Wire size: 28AWG...12AWG
Connector: terminal
Contact plating: tinned
Current rating: 24A
Height: 13mm
Colour: blue
Rated voltage: 0.25kV
Body material: polyamide 66
Connectors features: assembling possibility
Contact material: copper
Operating temperature: -60...105°C
Depth: 14mm
Flammability rating: UL94V-0
Connector pinout layout: 1x1
Conform to the norm: UL
Number of terminals: 1
Connector series: 236
на замовлення 2023 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
15+ | 26.21 грн |
20+ | 22.05 грн |
46+ | 17.73 грн |
125+ | 16.76 грн |
Відгуки про товар
Написати відгук
Технічний опис 236-744 WAGO
Category: PCB terminal blocks, Description: PCB terminal block; angled 45°; 5mm; ways: 1; on PCBs; 0.08÷2.5mm2, Type of connector: PCB terminal block, Spatial orientation: angled 45°, Contacts pitch: 5mm, Number of ways: 1, Mechanical mounting: on PCBs, Electrical mounting: spring clamp; THT, Wire cross-section: 0.08...2.5mm2, Wire size: 28AWG...12AWG, Connector: terminal, Contact plating: tinned, Current rating: 24A, Height: 13mm, Colour: blue, Rated voltage: 0.25kV, Body material: polyamide 66, Connectors features: assembling possibility, Contact material: copper, Operating temperature: -60...105°C, Depth: 14mm, Flammability rating: UL94V-0, Connector pinout layout: 1x1, Conform to the norm: UL, Number of terminals: 1, Connector series: 236, кількість в упаковці: 1 шт.
Інші пропозиції 236-744 за ціною від 20.11 грн до 69.23 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
236-744 | Виробник : WAGO |
Category: PCB terminal blocks Description: PCB terminal block; angled 45°; 5mm; ways: 1; on PCBs; 0.08÷2.5mm2 Type of connector: PCB terminal block Spatial orientation: angled 45° Contacts pitch: 5mm Number of ways: 1 Mechanical mounting: on PCBs Electrical mounting: spring clamp; THT Wire cross-section: 0.08...2.5mm2 Wire size: 28AWG...12AWG Connector: terminal Contact plating: tinned Current rating: 24A Height: 13mm Colour: blue Rated voltage: 0.25kV Body material: polyamide 66 Connectors features: assembling possibility Contact material: copper Operating temperature: -60...105°C Depth: 14mm Flammability rating: UL94V-0 Connector pinout layout: 1x1 Conform to the norm: UL Number of terminals: 1 Connector series: 236 кількість в упаковці: 1 шт |
на замовлення 2023 шт: термін постачання 7-14 дні (днів) |
|
|||||||||||||||||||
236-744 | Виробник : WAGO Corporation |
Description: STACKABLE PCB TERMINAL BLOCK; 2. Packaging: Box Color: Blue Mounting Type: Through Hole Wire Gauge: 12-28 AWG Mating Orientation: 45° (135°) Angle with Board Positions Per Level: 1 Wire Termination: Screwless - Spring Cage, Tension Clamp Part Status: Active Current: 15 A Number of Levels: 1 Voltage: 300 V |
на замовлення 2120 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
236-744 | Виробник : WAGO Innovative Connections | Conn PC Terminal Block F 1 POS Solder Thru-Hole 24A Box |
на замовлення 1550 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
236-744 | Виробник : WAGO Innovative Connections | Conn PC Terminal Block F 1 POS Solder Thru-Hole 24A Box |
на замовлення 302 шт: термін постачання 21-31 дні (днів) |
||||||||||||||||||||
236-744 (Клемі для друк.плат 2,5 QMM 5 MM сині) Код товару: 53491 |
Роз'єми, клеми, з'єднувачі > Клемники Короткий опис: Клемник на друковану плату, одна секція, крок 5мм, 16А, колір синій, для проводів 2,5мм.кв Крок, мм: 5 mm К-сть контактів: 1 |
товар відсутній
|
|||||||||||||||||||||
236-744 | Виробник : WAGO Innovative Connections | Conn PC Terminal Block F 1 POS Solder Thru-Hole 24A Box |
товар відсутній |
||||||||||||||||||||
236-744 | Виробник : WAGO Innovative | Conn PC Terminal Block F 1 POS Solder Thru-Hole 24A Box |
товар відсутній |
