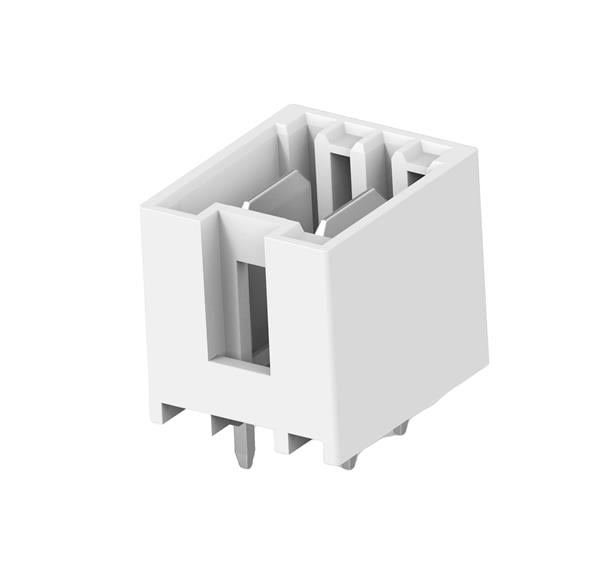

2392771-2 TE Connectivity

Description: 2P, RAST 5 TAB HEADER, THV, Packaging: Tube, Features: Board Guide, Glow Wire Compliant, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 20A, Mounting Type: Through Hole, Number of Positions: 2, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 120°C, Contact Type: Tab, Fastening Type: Detent Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Natural, Pitch - Mating: 0.197" (5.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 78.7µin (2.00µm), Contact Finish - Post: Tin, Contact Shape: Rectangular, Contact Length - Post: 0.138" (3.50mm), Insulation Height: 0.504" (12.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon.
