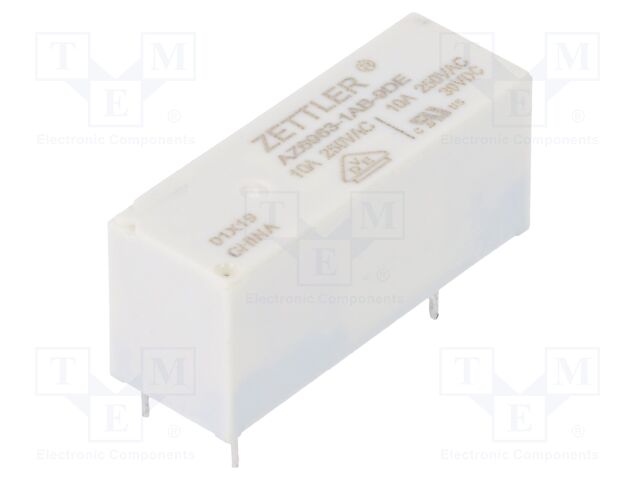

AZ6963-1AB-9DE ZETTLER
Виробник: ZETTLER
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 10A; 10A/250VAC; PCB
Body dimensions: 28.8x10.1x12.5mm
Coil resistance: 360Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: AZ6963
Rated coil voltage: 9V DC
Coil voltage min.: 6.3V DC
Coil voltage max.: 20.8V DC
Coil power consumption: 120mW
Operate time: 7ms
Release time: 3ms
Switched voltage: max. 240V DC; max. 440V AC
Contact current max.: 10A
Contact resistance: 100mΩ
Mounting: PCB
Terminal pitch: 5mm
Operating temperature: -40...85°C
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 10A; 10A/250VAC; PCB
Body dimensions: 28.8x10.1x12.5mm
Coil resistance: 360Ω
Contacts configuration: SPST-NO
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: AZ6963
Rated coil voltage: 9V DC
Coil voltage min.: 6.3V DC
Coil voltage max.: 20.8V DC
Coil power consumption: 120mW
Operate time: 7ms
Release time: 3ms
Switched voltage: max. 240V DC; max. 440V AC
Contact current max.: 10A
Contact resistance: 100mΩ
Mounting: PCB
Terminal pitch: 5mm
Operating temperature: -40...85°C
на замовлення 904 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
5+ | 72.93 грн |
15+ | 55.73 грн |
40+ | 52.98 грн |
Відгуки про товар
Написати відгук
Технічний опис AZ6963-1AB-9DE ZETTLER
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 10A; 10A/250VAC; PCB, Body dimensions: 28.8x10.1x12.5mm, Coil resistance: 360Ω, Contacts configuration: SPST-NO, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 30V DC, Type of relay: electromagnetic, Relay variant: miniature, Relay series: AZ6963, Rated coil voltage: 9V DC, Coil voltage min.: 6.3V DC, Coil voltage max.: 20.8V DC, Coil power consumption: 120mW, Operate time: 7ms, Release time: 3ms, Switched voltage: max. 240V DC; max. 440V AC, Contact current max.: 10A, Contact resistance: 100mΩ, Mounting: PCB, Terminal pitch: 5mm, Operating temperature: -40...85°C, кількість в упаковці: 1 шт.
Інші пропозиції AZ6963-1AB-9DE за ціною від 63.57 грн до 104.92 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AZ6963-1AB-9DE | Виробник : ZETTLER |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 10A; 10A/250VAC; PCB Body dimensions: 28.8x10.1x12.5mm Coil resistance: 360Ω Contacts configuration: SPST-NO AC contacts rating @R: 10A / 250V AC DC contacts rating @R: 10A / 30V DC Type of relay: electromagnetic Relay variant: miniature Relay series: AZ6963 Rated coil voltage: 9V DC Coil voltage min.: 6.3V DC Coil voltage max.: 20.8V DC Coil power consumption: 120mW Operate time: 7ms Release time: 3ms Switched voltage: max. 240V DC; max. 440V AC Contact current max.: 10A Contact resistance: 100mΩ Mounting: PCB Terminal pitch: 5mm Operating temperature: -40...85°C кількість в упаковці: 1 шт |
на замовлення 904 шт: термін постачання 7-14 дні (днів) |
|
