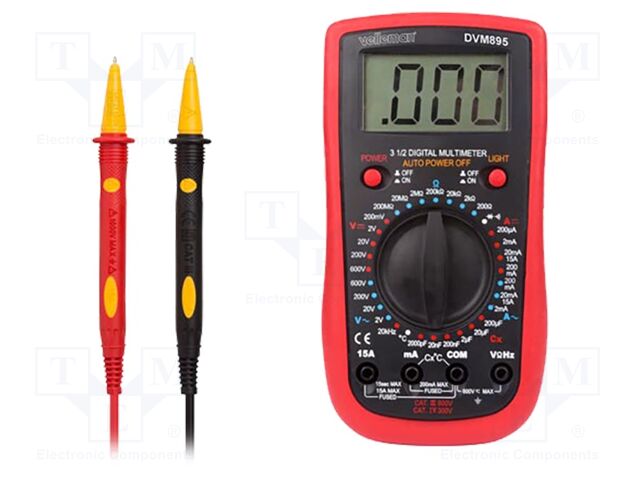

DVM895 VELLEMAN

Category: Portable digital multimeters, Description: Digital multimeter; LCD; 3,5 digit (1999); f range: 20kHz, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature (external probe required), Kind of display used: LCD, Display parameters: 3,5 digit (1999), DC voltage measuring range: 0...200mV; 2V; 20V; 200V; 600V, DC voltage measuring accuracy: ±(0.5% + 2 digit), AC voltage measuring range: 0...2V; 20V; 200V; 600V, AC voltage measuring accuracy: ±(0.8% + 3 digit), Bandwidth for AC voltage measurements: 40...500Hz, DC current measuring range: 0.2mA; 2mA; 20mA; 200mA; 15A, DC current measuring accuracy: ±(1.2% + 2 digit), AC current measuring range: 2mA; 20mA; 200mA; 15A, AC current measuring accuracy: ±(1.5% + 3 digit), Bandwidth for AC current measurements: 40...500Hz, Resistance measuring range: 0...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ; 200MΩ, Capacitance measuring range: 2nF; 20nF; 200nF; 2µF; 200µF, Capacitance measuring accuracy: ±(2.5%+ 5 digit), Frequency measuring range: 20kHz, Frequency measuring accuracy: ±(2%+5 digit), Temperature measuring range: -50...800°C, Temperature measurement accuracy: ±(3% + 3 digit), Resistance measuring accuracy: ±(1%+3 digit), Test: diodes, Continuity test: acoustic indication; .
