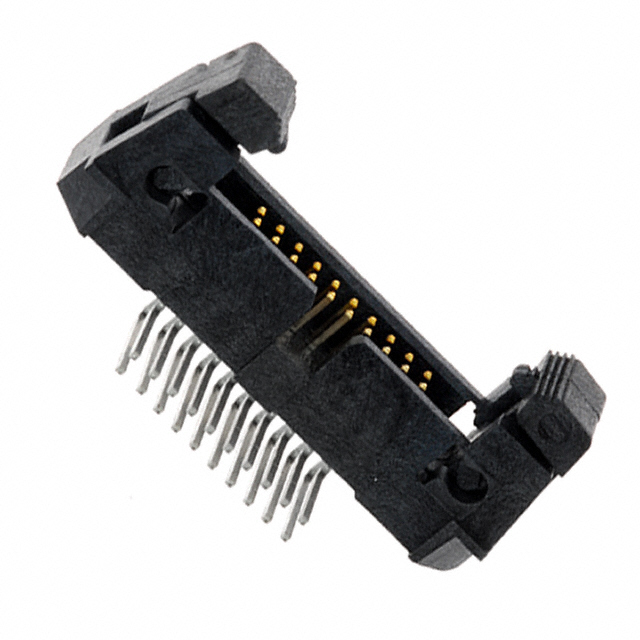

EHF-110-01-L-D-RA Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER R/A 20POS 1.27MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.263" (6.67mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER R/A 20POS 1.27MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.263" (6.67mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 3066 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 309.09 грн |
10+ | 270.45 грн |
100+ | 238.25 грн |
500+ | 190.05 грн |
1000+ | 162.1 грн |
Відгуки про товар
Написати відгук
Технічний опис EHF-110-01-L-D-RA Samtec Inc.
Description: CONN HEADER R/A 20POS 1.27MM, Packaging: Tube, Features: Keying Slot, Connector Type: Header, Current Rating (Amps): 1.75A, Mounting Type: Through Hole, Right Angle, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Number of Positions Loaded: All, Termination: Solder, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.263" (6.67mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Інші пропозиції EHF-110-01-L-D-RA за ціною від 275.72 грн до 415.92 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EHF-110-01-L-D-RA | Виробник : SAMTEC |
Description: SAMTEC - EHF-110-01-L-D-RA - Stiftleiste, abgewinkelt, Wire-to-Board, 1.27 mm, 2 Reihe(n), 20 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 20Contacts euEccn: NLR Steckverbindersysteme: Wire-to-Board Produktpalette: EHF productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt Anzahl der Reihen: 2Rows Rastermaß: 1.27mm |
на замовлення 43 шт: термін постачання 21-31 дні (днів) |
|
|||||||||
EHF-110-01-L-D-RA | Виробник : Samtec | Headers & Wire Housings .050" Shrouded IDC Header with Ejectors |
на замовлення 347 шт: термін постачання 21-30 дні (днів) |
|
