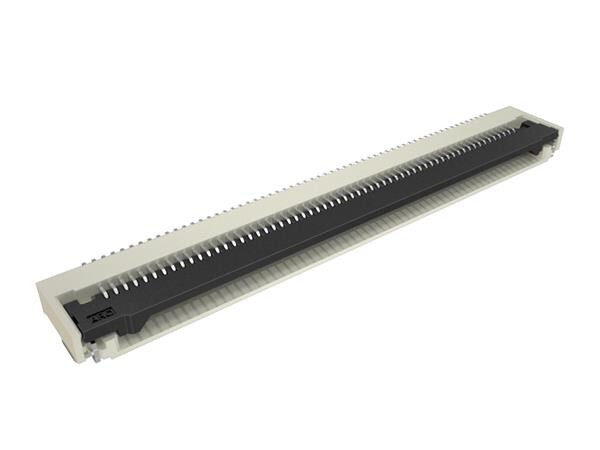

F3051A7H111056E200 Amphenol ICC (FCI)

Description: FLEX CONNECTOR, P=0.50MM, H=2.00, Packaging: Tape & Reel (TR), Features: Solder Retention, Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 56, Pitch: 0.020" (0.50mm), Operating Temperature: -40°C ~ 105°C, Termination: Solder, Height Above Board: 0.079" (2.00mm), Locking Feature: Flip Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyamide (PA9T), Nylon 9T, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Cable End Type: Tapered, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom.
