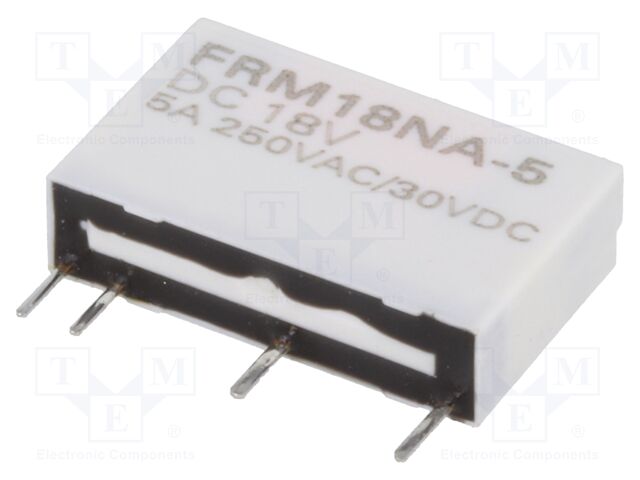

FRM18NA-5 DC18V FORWARD INDUSTRIAL CO.
Виробник: FORWARD INDUSTRIAL CO.
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 18V DC
Contact current max.: 5A
Relay series: FRM18
Relay variant: interface
Operating temperature: -40...70°C
Mounting: PCB
Body dimensions: 20x12.5x5mm
Switched voltage: max. 110V DC; max. 250V AC
Coil resistance: 2.7kΩ
AC contacts rating @R: 5A / 250V AC
Contact resistance: 50mΩ
Contact material: silver alloy
Coil power consumption: 120mW
DC contacts rating @R: 5A / 30V DC
Coil current: 6.7mA
Mechanical durability: 20000000 cycles
Terminal pitch: 7.62mm
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 18V DC
Contact current max.: 5A
Relay series: FRM18
Relay variant: interface
Operating temperature: -40...70°C
Mounting: PCB
Body dimensions: 20x12.5x5mm
Switched voltage: max. 110V DC; max. 250V AC
Coil resistance: 2.7kΩ
AC contacts rating @R: 5A / 250V AC
Contact resistance: 50mΩ
Contact material: silver alloy
Coil power consumption: 120mW
DC contacts rating @R: 5A / 30V DC
Coil current: 6.7mA
Mechanical durability: 20000000 cycles
Terminal pitch: 7.62mm
на замовлення 455 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
3+ | 134 грн |
5+ | 107.56 грн |
11+ | 81.55 грн |
28+ | 77.33 грн |
Відгуки про товар
Написати відгук
Технічний опис FRM18NA-5 DC18V FORWARD INDUSTRIAL CO.
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 18V DC, Contact current max.: 5A, Relay series: FRM18, Relay variant: interface, Operating temperature: -40...70°C, Mounting: PCB, Body dimensions: 20x12.5x5mm, Switched voltage: max. 110V DC; max. 250V AC, Coil resistance: 2.7kΩ, AC contacts rating @R: 5A / 250V AC, Contact resistance: 50mΩ, Contact material: silver alloy, Coil power consumption: 120mW, DC contacts rating @R: 5A / 30V DC, Coil current: 6.7mA, Mechanical durability: 20000000 cycles, Terminal pitch: 7.62mm, кількість в упаковці: 1 шт.
Інші пропозиції FRM18NA-5 DC18V за ціною від 92.79 грн до 160.8 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FRM18NA-5 DC18V | Виробник : FORWARD INDUSTRIAL CO. |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; Icontacts max: 5A Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 18V DC Contact current max.: 5A Relay series: FRM18 Relay variant: interface Operating temperature: -40...70°C Mounting: PCB Body dimensions: 20x12.5x5mm Switched voltage: max. 110V DC; max. 250V AC Coil resistance: 2.7kΩ AC contacts rating @R: 5A / 250V AC Contact resistance: 50mΩ Contact material: silver alloy Coil power consumption: 120mW DC contacts rating @R: 5A / 30V DC Coil current: 6.7mA Mechanical durability: 20000000 cycles Terminal pitch: 7.62mm кількість в упаковці: 1 шт |
на замовлення 455 шт: термін постачання 7-14 дні (днів) |
|
|||||||||||
FRM18NA-5 DC18V (FRM18NA-18VDC) Код товару: 174667 |
Реле |
товар відсутній
|
