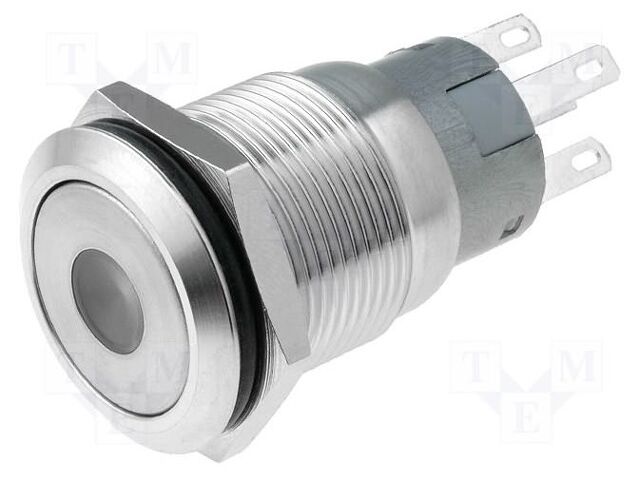

LAS1-AGQ-11ZD/B/24V ONPOW
Виробник: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67
Operating temperature: -20...55°C
Illumination voltage: 24V
Mechanical durability: 1000000 cycles
DC contacts rating @R: 1A / 24V DC
Body colour: silver
AC contacts rating @R: 0.5A / 220V AC
Test voltage: 2kV
Button shape: flat
Contacts configuration: SPDT
Stable positions number: 2
Leads: for soldering
Operating Force: 5N
Body material: stainless steel
Backlight colour: blue
Switching method: ON-ON
Max. contact resistance:: 50mΩ
Ring shape: rounded
Electrical life: 50000 cycles
Illumination: ring
Number of positions: 2
IP rating: IP67
Contact material: silver alloy
Mounting hole diameter: Ø19mm
Type of switch: vandal resistant
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис LAS1-AGQ-11ZD/B/24V ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67, Operating temperature: -20...55°C, Illumination voltage: 24V, Mechanical durability: 1000000 cycles, DC contacts rating @R: 1A / 24V DC, Body colour: silver, AC contacts rating @R: 0.5A / 220V AC, Test voltage: 2kV, Button shape: flat, Contacts configuration: SPDT, Stable positions number: 2, Leads: for soldering, Operating Force: 5N, Body material: stainless steel, Backlight colour: blue, Switching method: ON-ON, Max. contact resistance:: 50mΩ, Ring shape: rounded, Electrical life: 50000 cycles, Illumination: ring, Number of positions: 2, IP rating: IP67, Contact material: silver alloy, Mounting hole diameter: Ø19mm, Type of switch: vandal resistant, кількість в упаковці: 1 шт.
