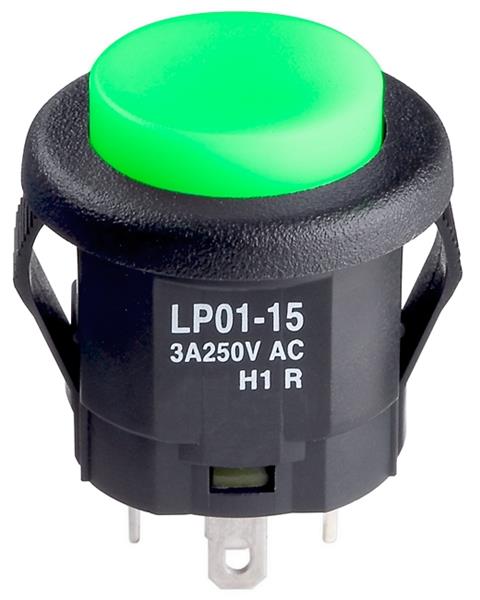

LP0115CMKW015FB NKK Switches
на замовлення 133 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 893.38 грн |
| 10+ | 820.73 грн |
| 25+ | 694.32 грн |
| 50+ | 656.26 грн |
| 100+ | 636.9 грн |
| 250+ | 602.19 грн |
Відгуки про товар
Написати відгук
Технічний опис LP0115CMKW015FB NKK Switches
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON), Mounting: on panel; SNAP-IN, Operating temperature: -10...50°C, Manufacturer series: LPR, DC contacts rating @R: 3A / 30V DC, Body colour: black, AC contacts rating @R: 3A / 250V AC, Button shape: round, Contacts configuration: SPDT, Stable positions number: 1, Number of terminals: 5, Leads: connectors 2,8x0,5mm; for soldering, Operating Force: 1.5N, Body material: polyamide, Backlight colour: green, Key stroke: 3mm, Body dimensions: Ø20x16.5mm, Switching method: ON-(ON), Min. insulation resistance: 200MΩ, Kind of material: fiber glass reinforced, Max. contact resistance:: 50mΩ, Electrical life: 50000 cycles, Conform to the norm: UL, Illumination: LED, Number of positions: 2, Contact plating: silver plated, Contact material: phosphor bronze, Mounting hole diameter: Ø17.3mm, Poles number: 1, Type of switch: push-button, Mechanical durability: 500000 cycles, кількість в упаковці: 1 шт.
Інші пропозиції LP0115CMKW015FB за ціною від 690.86 грн до 970.61 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LP0115CMKW015FB | Виробник : NKK Switches |
 Description: SWITCH PUSHBUTTON SPDT 3A 125VPackaging: Bulk Current Rating (Amps): 3A (AC/DC) Mounting Type: Panel Mount, Snap-In Circuit: SPDT Type: Standard, Illuminated Switch Function: On-Mom Operating Temperature: -10°C ~ 50°C Termination Style: Solder, Quick Connect - 0.110" (2.8mm) Illumination Type, Color: LED, Green Illumination Voltage (Nominal): 2.1 VDC Actuator Type: Round, Button Panel Cutout Dimensions: Circular - 17.30mm Dia Color - Actuator/Cap: White Actuator Marking: No Marking Part Status: Active Voltage Rating - AC: 125 V Voltage Rating - DC: 30 V |
на замовлення 157 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
| LP0115CMKW015FB | Виробник : NKK SWITCHES |
Category: Standard Switches Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON) Mounting: on panel; SNAP-IN Operating temperature: -10...50°C Manufacturer series: LPR DC contacts rating @R: 3A / 30V DC Body colour: black AC contacts rating @R: 3A / 250V AC Button shape: round Contacts configuration: SPDT Stable positions number: 1 Number of terminals: 5 Leads: connectors 2,8x0,5mm; for soldering Operating Force: 1.5N Body material: polyamide Backlight colour: green Key stroke: 3mm Body dimensions: Ø20x16.5mm Switching method: ON-(ON) Min. insulation resistance: 200MΩ Kind of material: fiber glass reinforced Max. contact resistance:: 50mΩ Electrical life: 50000 cycles Conform to the norm: UL Illumination: LED Number of positions: 2 Contact plating: silver plated Contact material: phosphor bronze Mounting hole diameter: Ø17.3mm Poles number: 1 Type of switch: push-button Mechanical durability: 500000 cycles кількість в упаковці: 1 шт |
товар відсутній |
||||||||||||||
| LP0115CMKW015FB | Виробник : NKK SWITCHES |
Category: Standard Switches Description: Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-(ON) Mounting: on panel; SNAP-IN Operating temperature: -10...50°C Manufacturer series: LPR DC contacts rating @R: 3A / 30V DC Body colour: black AC contacts rating @R: 3A / 250V AC Button shape: round Contacts configuration: SPDT Stable positions number: 1 Number of terminals: 5 Leads: connectors 2,8x0,5mm; for soldering Operating Force: 1.5N Body material: polyamide Backlight colour: green Key stroke: 3mm Body dimensions: Ø20x16.5mm Switching method: ON-(ON) Min. insulation resistance: 200MΩ Kind of material: fiber glass reinforced Max. contact resistance:: 50mΩ Electrical life: 50000 cycles Conform to the norm: UL Illumination: LED Number of positions: 2 Contact plating: silver plated Contact material: phosphor bronze Mounting hole diameter: Ø17.3mm Poles number: 1 Type of switch: push-button Mechanical durability: 500000 cycles |
товар відсутній |
