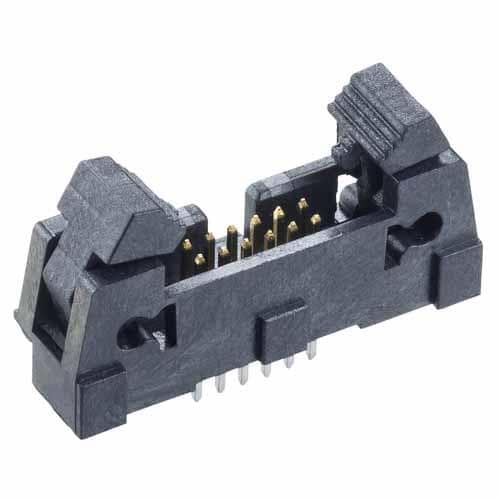

M50-3550642 Harwin Inc.

Description: CONN HEADER VERT 12POS 1.27MM, Packaging: Tube, Features: Keying Slot, Connector Type: Header, Current Rating (Amps): 1.75A per Contact, Mounting Type: Through Hole, Number of Positions: 12, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.107" (2.71mm), Insulation Height: 0.325" (8.25mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.351" (8.92mm), Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
