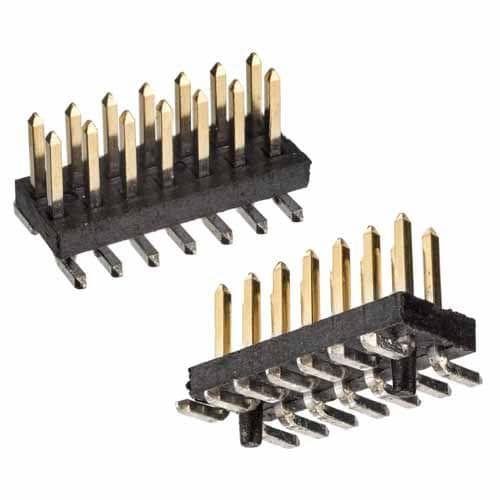

M50-3610742R Harwin Inc.
Виробник: Harwin Inc.Description: CONN HEADER SMD 14POS 1.27MM
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): 1A
Mounting Type: Surface Mount
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.118" (3.00mm)
на замовлення 1400 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 700+ | 96.29 грн |
| 1400+ | 79.48 грн |
Відгуки про товар
Написати відгук
Технічний опис M50-3610742R Harwin Inc.
Description: CONN HEADER SMD 14POS 1.27MM, Features: Board Guide, Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 250V, Current Rating (Amps): 1A, Mounting Type: Surface Mount, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 1.00µin (0.025µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.039" (1.00mm), Shrouding: Unshrouded, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.118" (3.00mm).
Інші пропозиції M50-3610742R за ціною від 78.78 грн до 155.78 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
M50-3610742R | Виробник : Harwin Inc. |
Description: CONN HEADER SMD 14POS 1.27MM Features: Board Guide, Pick and Place Packaging: Cut Tape (CT) Connector Type: Header Voltage Rating: 250V Current Rating (Amps): 1A Mounting Type: Surface Mount Number of Positions: 14 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 1.00µin (0.025µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.039" (1.00mm) Shrouding: Unshrouded Insulation Material: Thermoplastic Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.118" (3.00mm) |
на замовлення 1816 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||
 |
M50-3610742R | Виробник : Harwin |
Headers & Wire Housings 07+07 DIL SMT P/HDR W/PEGS T/R |
на замовлення 806 шт: термін постачання 21-30 дні (днів) |
|
