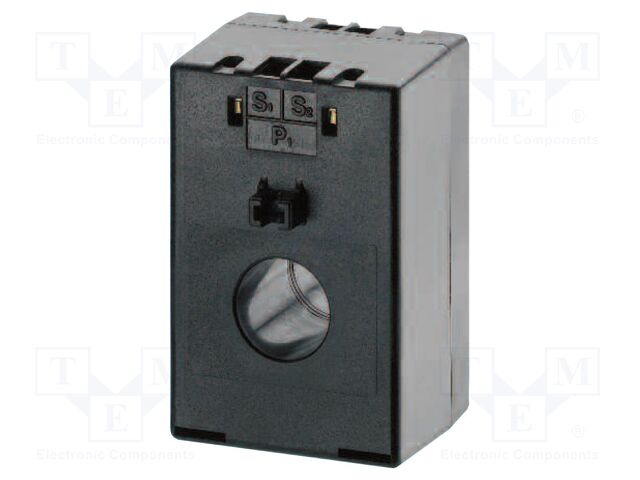

M65F125/1A CROMPTON - TE CONNECTIVITY
Виробник: CROMPTON - TE CONNECTIVITY
Category: Current Transformers
Description: Current transformer; Iin: 125A; Iout: 1A; Rail: 20x10mm; Øint: 23mm
Mounting: for DIN rail mounting (optional); screw
Operating temperature: -20...85°C
Dimensions (a x b x c): 60x50x94mm
Manufacturer series: M65F
Conform to the norm: EN 60044-1
Accuracy class: 0.5 @max 2.5VA; 1 @max 5VA; 3 @max 7.5VA
Mounting rail size: 20x10mm
Input current: 125A
Type of test accessories: current transformer
Operating frequency: 50...60Hz
Internal diameter: 23mm
Output current: 1A
кількість в упаковці: 1 шт
Category: Current Transformers
Description: Current transformer; Iin: 125A; Iout: 1A; Rail: 20x10mm; Øint: 23mm
Mounting: for DIN rail mounting (optional); screw
Operating temperature: -20...85°C
Dimensions (a x b x c): 60x50x94mm
Manufacturer series: M65F
Conform to the norm: EN 60044-1
Accuracy class: 0.5 @max 2.5VA; 1 @max 5VA; 3 @max 7.5VA
Mounting rail size: 20x10mm
Input current: 125A
Type of test accessories: current transformer
Operating frequency: 50...60Hz
Internal diameter: 23mm
Output current: 1A
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис M65F125/1A CROMPTON - TE CONNECTIVITY
Category: Current Transformers, Description: Current transformer; Iin: 125A; Iout: 1A; Rail: 20x10mm; Øint: 23mm, Mounting: for DIN rail mounting (optional); screw, Operating temperature: -20...85°C, Dimensions (a x b x c): 60x50x94mm, Manufacturer series: M65F, Conform to the norm: EN 60044-1, Accuracy class: 0.5 @max 2.5VA; 1 @max 5VA; 3 @max 7.5VA, Mounting rail size: 20x10mm, Input current: 125A, Type of test accessories: current transformer, Operating frequency: 50...60Hz, Internal diameter: 23mm, Output current: 1A, кількість в упаковці: 1 шт.
