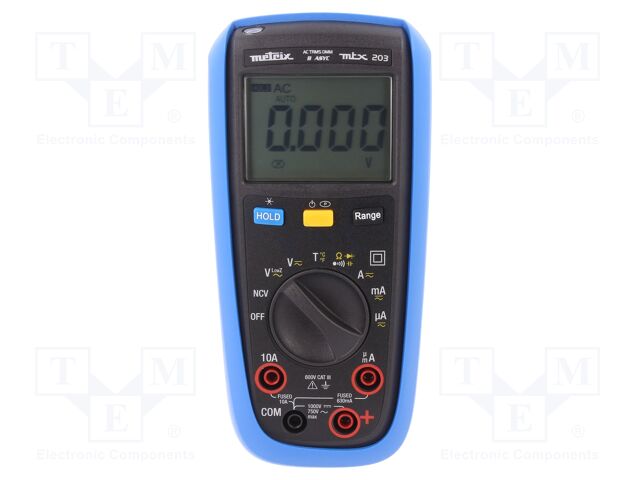

MTX 203 METRIX
Виробник: METRIXCategory: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 6V,60V,600V,1kV; True RMS
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.2% + 2 digit)
AC voltage measuring range: 6V; 60V; 600V; 750V
AC voltage measuring accuracy: ±(0.5% + 4 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.5% + 3 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring accuracy: ±(0.5% + 5 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 100mF
Capacitance measuring accuracy: ±(2%+ 5 digit)
Temperature measurement accuracy: ±(2% + 1°C)
Temperature measuring range (with K-type thermocouple): -55...1200°C
Resistance measuring accuracy: ±(0.5%+5 digit)
Test: diodes
Continuity test: acoustic indication; <50Ω
IP rating: IP54
Power supply: battery LR6 AA 1,5V x2
Standard equipment: banana plug - K plug adapter; holster; K-type temperature probe; test leads
Conform to the norm: CAT III 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 80x170x50mm
Producer guarantee (months): 24
Kind of temperature sensor: thermocouple K
Measuring instrument features: auto and manual ranging; automatic power-off; contactless voltage detector; HOLD function; low battery indicator; low input impedance function (LoZ)
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Manufacturer series: MTX 200
Illumination: yes
кількість в упаковці: 1 шт
