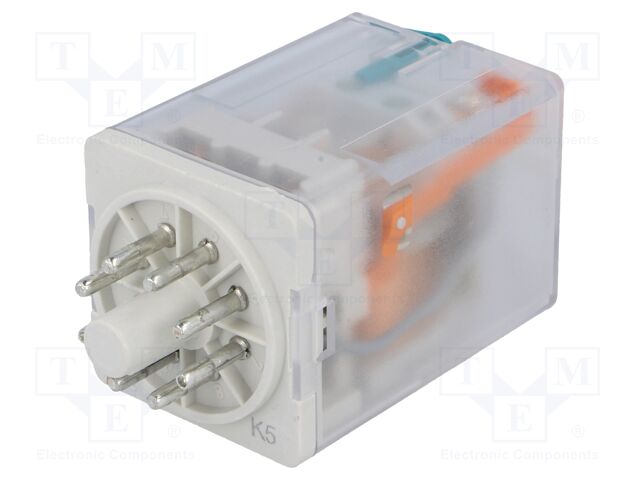

R15-2012-23-1048-WT RELPOL
Виробник: RELPOLCategory: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 48VDC; Icontacts max: 20A
Number of pins: 8
Contact current max.: 20A
Related items: GOP8; GZ8; GZP8; GZU8; PZ8
Mounting: socket
Leads: stud terminals
Relay series: R15
Operating temperature: -40...70°C
Body dimensions: 35x35x54.5mm
Electrical connection: round socket
OEM number: 802889
Kind of connector: octal
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 250V DC; max. 440V AC
Rated coil voltage: 48V DC
Contacts configuration: DPDT
Relay variant: industrial
Coil resistance: 1.75kΩ
Type of relay: electromagnetic
Coil power consumption: 1.5W
Contact resistance: 100mΩ
Optional equipment: mechanical indicator; test button with blocking function
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис R15-2012-23-1048-WT RELPOL
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 48VDC; Icontacts max: 20A, Number of pins: 8, Contact current max.: 20A, Related items: GOP8; GZ8; GZP8; GZU8; PZ8, Mounting: socket, Leads: stud terminals, Relay series: R15, Operating temperature: -40...70°C, Body dimensions: 35x35x54.5mm, Electrical connection: round socket, OEM number: 802889, Kind of connector: octal, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 24V DC, Switched voltage: max. 250V DC; max. 440V AC, Rated coil voltage: 48V DC, Contacts configuration: DPDT, Relay variant: industrial, Coil resistance: 1.75kΩ, Type of relay: electromagnetic, Coil power consumption: 1.5W, Contact resistance: 100mΩ, Optional equipment: mechanical indicator; test button with blocking function, кількість в упаковці: 1 шт.
