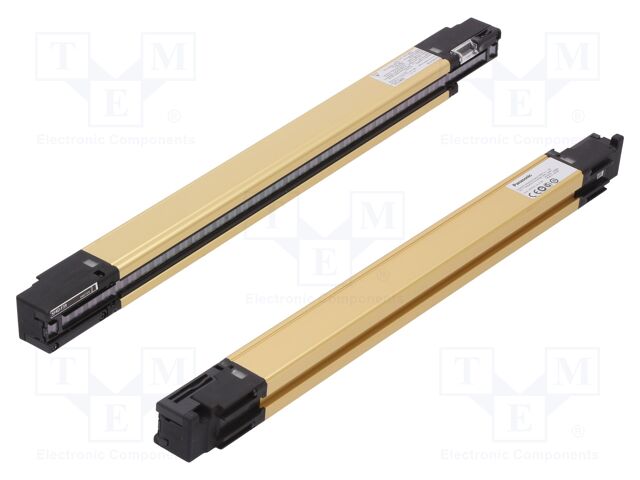

SF4D-F39 PANASONIC
Виробник: PANASONICCategory: Light Curtains
Description: Safety light curtain; H: 390mm; 0÷12m; IP67; SF4D; 24VDC; lead
Type of sensor: safety light curtain
Height: 390mm
Range: 0...12m
IP rating: IP67
Manufacturer series: SF4D
Supply voltage: 24V DC
Connection: lead
Operating temperature: -10...55°C
Switched current, max.: 350mA
Kind of output 1: NPN; PNP
Kind of output 2: NPN; PNP
Operation mode: transmitter-receiver
Enclosure material: aluminium
Resolution: 10mm
Safety category: 4
Kit contents: receiver; transmitter
Additional functions: fix blanking function; floating blanking function; IO-Link; mutting function; no dead zone; the possibility of optical synchronization
Related items: MS-SFD-1-5; MS-SFD-3-6; SF4D-TM1; SF-C13; SF-C21; SFD-CCB3; SFD-CCB3-MU; SFD-CCB5-S; SFD-CCB7; SFD-CCB7-MU; SFD-CCB10-S; SFD-WL3
Sensors features: finger protection
Software: download from manufacturers website
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис SF4D-F39 PANASONIC
Category: Light Curtains, Description: Safety light curtain; H: 390mm; 0÷12m; IP67; SF4D; 24VDC; lead, Type of sensor: safety light curtain, Height: 390mm, Range: 0...12m, IP rating: IP67, Manufacturer series: SF4D, Supply voltage: 24V DC, Connection: lead, Operating temperature: -10...55°C, Switched current, max.: 350mA, Kind of output 1: NPN; PNP, Kind of output 2: NPN; PNP, Operation mode: transmitter-receiver, Enclosure material: aluminium, Resolution: 10mm, Safety category: 4, Kit contents: receiver; transmitter, Additional functions: fix blanking function; floating blanking function; IO-Link; mutting function; no dead zone; the possibility of optical synchronization, Related items: MS-SFD-1-5; MS-SFD-3-6; SF4D-TM1; SF-C13; SF-C21; SFD-CCB3; SFD-CCB3-MU; SFD-CCB5-S; SFD-CCB7; SFD-CCB7-MU; SFD-CCB10-S; SFD-WL3, Sensors features: finger protection, Software: download from manufacturers website, кількість в упаковці: 1 шт.
