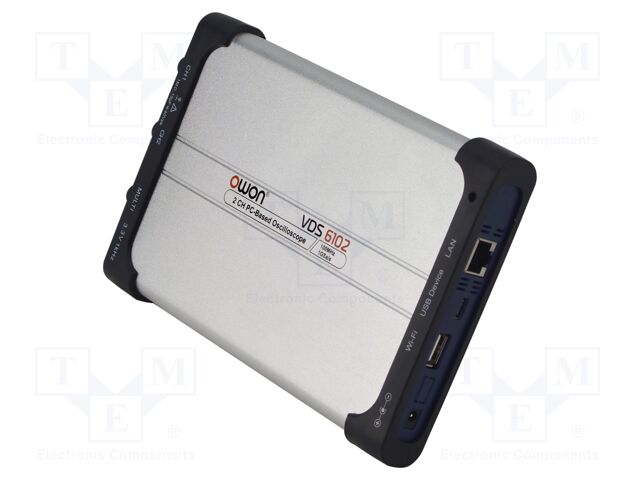

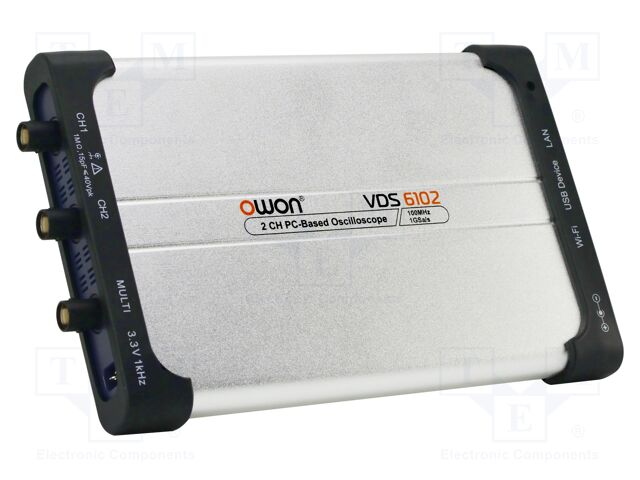

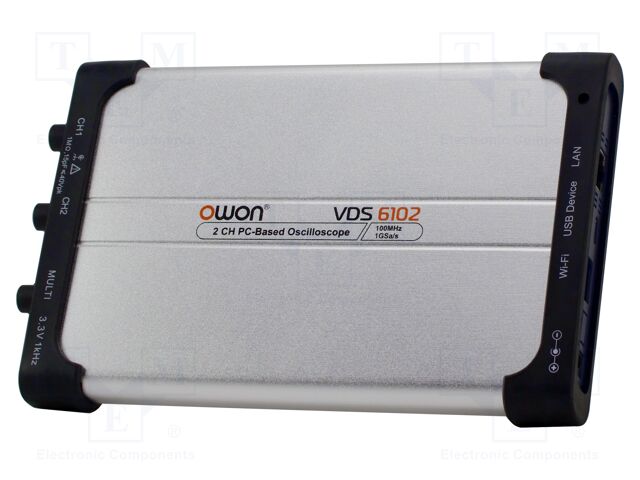

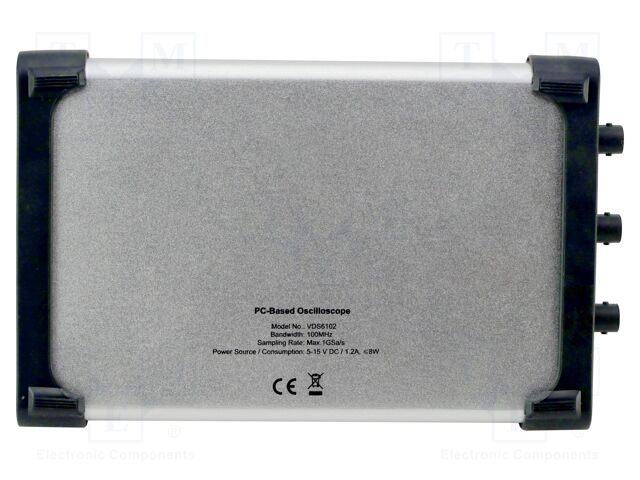

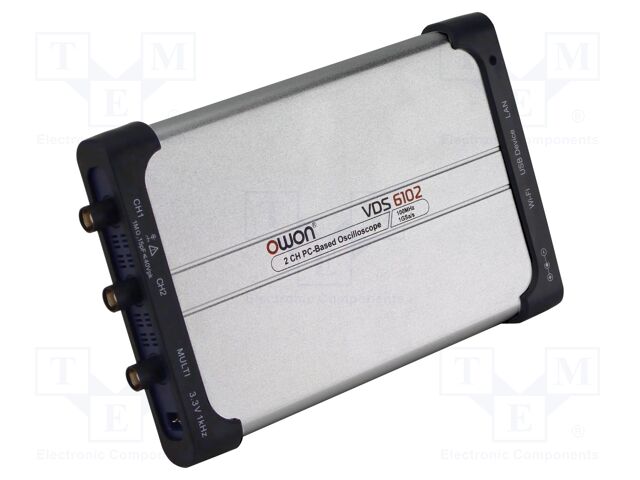

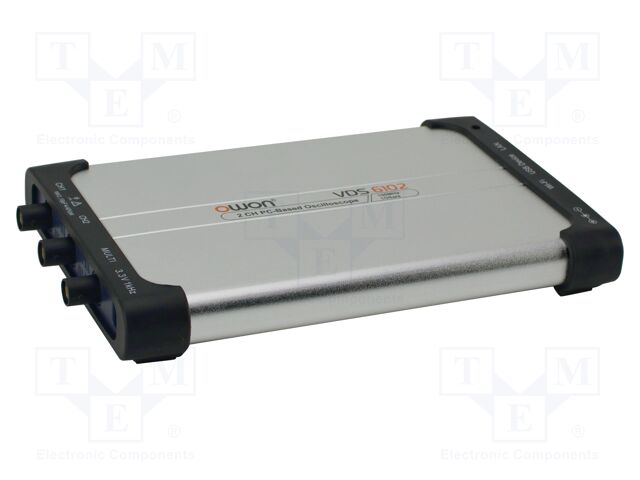

VDS6102 Owon Technology Lilliput Electronics (USA) Inc
Виробник: Owon Technology Lilliput Electronics (USA) Inc
Description: PC O-SCOPE, 2CHS, 60MHZ
Packaging: Box
Function: Save, AWG
Interface: USB (Type-C), LAN
Type: Bench
Voltage - Supply: 100 ~ 240VAC
Sampling Rate (Per Second): 1G
Voltage - Input (Max): CAT II 400V
Channels: 2
Input Impedance: 1M
Probe Type: Passive 10:1 (2)
Part Status: Active
Bandwidth: 100 MHz
Rise Time (Typ): 3.5 ns
Description: PC O-SCOPE, 2CHS, 60MHZ
Packaging: Box
Function: Save, AWG
Interface: USB (Type-C), LAN
Type: Bench
Voltage - Supply: 100 ~ 240VAC
Sampling Rate (Per Second): 1G
Voltage - Input (Max): CAT II 400V
Channels: 2
Input Impedance: 1M
Probe Type: Passive 10:1 (2)
Part Status: Active
Bandwidth: 100 MHz
Rise Time (Typ): 3.5 ns
на замовлення 50 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 26514.44 грн |
Відгуки про товар
Написати відгук
Технічний опис VDS6102 Owon Technology Lilliput Electronics (USA) Inc
Category: PC connected oscilloscopes, Description: PC connected oscilloscope; 100MHz; Ch: 2; 10Mpts; 1Gsps; 40V; 8bit, Type of oscilloscope: PC connected oscilloscope, Band: 100MHz, Number of channels: 2, Memory record length: 10Mpts, Sampling: 1Gsps, Max. input voltage: 40V, Trigger: falling-edge; pulse; rising-edge; slope; video signal, Trigger modes: automatic; normal; single, Input coupling: AC, DC, GND, Vertical resolution: 8bit, Dimensions: 190x120x18mm, Standard equipment: adapter AC-DC; BNC cable; mains cable; test probe x2; USB cable; user's manual, Interface: LAN; USB 2.0 host; USB C, Input impedance: 1MΩ/15pF, Rise time: ≤3.5ns, Input sensitivity: 2mV/div...5V/div, Additional functions: function generator, Measuring instrument features: supports SCPI, Software: LabVIEW, Supply voltage: 5...15V DC, Waveform frequency range: 0,1Hz...5MHz (sinus waveform); 0,1Hz...10kHz (pulse waveform); 0,1Hz...10kHz (ramp waveform); 0,1Hz...200kHz (rectangular waveform), Waveforms: impulse; ramp; rectangular; sinus, кількість в упаковці: 1 шт.
