M20-8900505R Harwin Inc. M20-890R.pdf Description: 5 POS. MALE SIL HORIZONTAL SMT C
Features: Pick and Place
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 5
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Contact Shape: Square
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.236" (6.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M20-8760642R Harwin Inc. M20-876R.pdf Description: 6+6 POS. MALE DIL VERTICAL SMT C
Features: Pick and Place
Packaging: Bulk
Connector Type: Header, Cuttable
Voltage Rating: 250VAC/DC
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 12
Number of Rows: 2
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.228" (5.80mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-8692605 Harwin Inc. M80-869.pdf Description: 13+13 POS. MALE DIL VERTICAL THR
Features: Strain Relief Clips
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M300-3240696M2 Harwin Inc. Description: 3+3 POS. MALE DIL CABLE HOUSING,
Features: Jackscrew
Packaging: Bulk
Connector Type: Plug
Contact Termination: Crimp
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 6
Pitch: 0.118" (3.00mm)
Operating Temperature: -65°C ~ 175°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Row Spacing: 0.118" (3.00mm)
Insulation Material: Polyamide (PA4T), Nylon 4T
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.

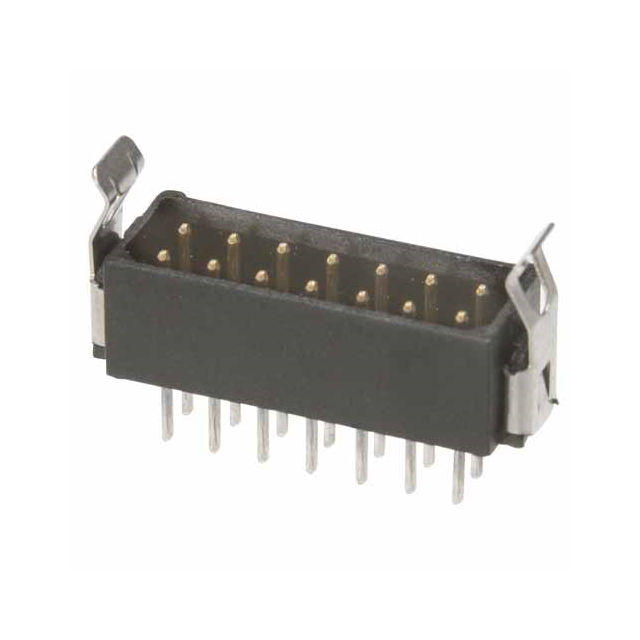

B5743-214-M-T-1 B5743-214-M-T-1 Harwin Inc. M80-867.pdf Description: 7+7 POS. MALE DIL VERTICAL THROU
Packaging: Tube
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
B5740-103-F-C-2 B5740-103-F-C-2 Harwin Inc. M80-898.pdf Description: 3 POS. FEMALE SIL 24-28AWG CABLE
Number of Rows: 1
Cable Termination: Crimp
Wire Type: Discrete
Contact Finish Thickness: 11.8µin (0.30µm)
Fastening Type: Locking Ramp
Contact Type: Female Socket
Pitch: 0.079" (2.00mm)
Number of Positions: 3
Wire Gauge: 24-28 AWG
Mounting Type: Free Hanging (In-Line)
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Packaging: Bulk
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10405MC Harwin Inc. M80-5T1XXXXMC.pdf Description: 2+2 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M300-3241096M2 Harwin Inc. Description: 5+5 POS. MALE DIL CABLE HOUSING,
Features: Jackscrew
Packaging: Bulk
Connector Type: Plug
Contact Termination: Crimp
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 10
Pitch: 0.118" (3.00mm)
Operating Temperature: -65°C ~ 175°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Row Spacing: 0.118" (3.00mm)
Insulation Material: Polyamide (PA4T), Nylon 4T
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-5010605 Harwin Inc. M80-501.pdf Description: 3+3 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5001005 Harwin Inc. Description: 5+5 POS. MALE DIL VERTICAL THROU
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5002242 Harwin Inc. Description: 11+11 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 22
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5002842 Harwin Inc. Description: 14+14 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 28
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10605ME Harwin Inc. M80-5T1XXXXME.pdf Description: 3+3 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 121°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5002005 Harwin Inc. M80-500.pdf Description: 10+10 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T20422ME Harwin Inc. M80-5T2XXXXME.pdf Description: 2+2 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5003242 Harwin Inc. Description: 16+16 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 32
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T21222ME Harwin Inc. DRG-01670-Technical-Drawing-Datasheet-M80-5T2XXXXME-pdf.pdf Description: 6+6 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Turn Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T14042ME Harwin Inc. M80-5T1XXXXME.pdf Description: 20+20 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 121°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5111205 Harwin Inc. M80-511.pdf Description: 6+6 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T21205MF Harwin Inc. M80-5T2XXXXMF.pdf Description: 6+6 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T21605MF Harwin Inc. M80-5T2XXXXMF.pdf Description: 8+8 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 16
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5112605 Harwin Inc. M80-511.pdf Description: 13+13 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5114205 Harwin Inc. M80-511.pdf Description: 21+21 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 42
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T24205MF Harwin Inc. M80-5T2XXXXMF.pdf Description: 21+21 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 42
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5003805 Harwin Inc. M80-500.pdf Description: 19+19 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 38
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13005MB Harwin Inc. M80-5T1XXXXMB.pdf Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T11042M3 Harwin Inc. Description: 5+5 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T12022M3 M80-5T12022M3 Harwin Inc. PD004-Product-Datasheet-Datamate-range-signal-connectors-HRi.pdf Description: 10+10 POS. MALE DIL VERTICAL THR
Packaging: Bulk
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T11005ME Harwin Inc. M80-5T1XXXXME.pdf Description: 5+5 POS. MALE DIL VERTICAL THROU
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Length - Post: 0.130" (3.30mm)
Contact Shape: Circular
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Screw Lock
Contact Type: Male Pin
Operating Temperature: -55°C ~ 121°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 10
Mounting Type: Through Hole
Current Rating (Amps): 2.2A
Voltage Rating: 800VAC/DC
Connector Type: Header
Features: Keying Slot, Mounting Flange
Packaging: Bulk
товару немає в наявності
В кошику  од. на суму  грн.
M80-4T11042F3 Harwin Inc. M80-4T1XXXXF3.pdf Description: 5+5 POS. FEMALE DIL VERTICAL THR
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Positions: 10
Mounting Type: Through Hole
Current Rating (Amps): 2.2A
Voltage Rating: 800VAC/DC
Connector Type: Receptacle
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Height: 0.205" (5.20mm)
Contact Length - Post: 0.118" (3.00mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Mated Stacking Heights: 7.3mm, 7.55mm
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Threaded
Contact Type: Female Socket
товару немає в наявності
В кошику  од. на суму  грн.
M80-5115005 Harwin Inc. M80-511.pdf Description: 25+25 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Threaded
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 50
Mounting Type: Through Hole
Connector Type: Header
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Length - Post: 0.173" (4.40mm)
Contact Shape: Circular
Contact Finish - Post: Gold
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10605M3 Harwin Inc. Description: 3+3 POS. MALE DIL VERTICAL THROU
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Length - Post: 0.130" (3.30mm)
Contact Shape: Circular
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Threaded
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 6
Mounting Type: Through Hole
Voltage Rating: 800V
Connector Type: Header
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Overall Contact Length: 0.350" (8.89mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T12642ME Harwin Inc. M80-5T1XXXXME.pdf Description: 13+13 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 121°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4T13442F3 Harwin Inc. M80-4T1XXXXF3.pdf Description: 17+17 POS. FEMALE DIL VERTICAL T
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 34
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13042ME Harwin Inc. M80-5T1XXXXME.pdf Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 121°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4T12042F3 Harwin Inc. M80-4T1XXXXF3.pdf Description: 10+10 POS. FEMALE DIL VERTICAL T
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 20
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13422M3 Harwin Inc. M80-5T1XXXXM3.pdf Description: 17+17 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4000000F2-04-321-00-000 Harwin Inc. Description: 4 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 20A
Mounting Type: Through Hole
Number of Positions: 4
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.205" (5.20mm)
Number of Rows: 1
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13842M3 Harwin Inc. M80-5T1XXXXM3.pdf Description: 19+19 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 38
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T14022M3 Harwin Inc. M80-5T1XXXXM3.pdf Description: 20+20 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4T10205F1-02-321-00-000 Harwin Inc. Description: 2+2 POS. FEMALE SIGNAL+POWER VER
Features: Jackscrews, Mating Flange, Mounting Flange
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Mounting Type: Through Hole
Number of Positions: 4 (2 + 2 Power)
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Gold
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13042M3 Harwin Inc. M80-5T1XXXXM3.pdf Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4000000F2-06-321-00-000 Harwin Inc. Description: 6 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 20A
Mounting Type: Through Hole
Number of Positions: 6
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.205" (5.20mm)
Number of Rows: 1
товару немає в наявності
В кошику  од. на суму  грн.
P70-2520045R P70-2520045R Harwin Inc. DRG-03237-Technical-Drawing-Datasheet-P70-25X-pdf.pdf Description: SMTT SPG LOADED POGO PIN 3.9MM
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Current Rating (Amps): 8A
Mounting Type: Surface Mount
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Maximum Working Height: 0.154" (3.91mm)
Recommended Working Height: 0.134" (3.41mm)
Minimum Working Height: 0.114" (2.90mm)
Pad Layout Dimension: Circular - 0.079" (2.00mm)
Plunger Size: 0.040" (1.02mm) Dia
Operating Force - Mid Compression: 60.16gf
товару немає в наявності
В кошику  од. на суму  грн.
P70-2520045R P70-2520045R Harwin Inc. DRG-03237-Technical-Drawing-Datasheet-P70-25X-pdf.pdf Description: SMTT SPG LOADED POGO PIN 3.9MM
Packaging: Cut Tape (CT)
Contact Finish: Gold
Current Rating (Amps): 8A
Mounting Type: Surface Mount
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Maximum Working Height: 0.154" (3.91mm)
Recommended Working Height: 0.134" (3.41mm)
Minimum Working Height: 0.114" (2.90mm)
Pad Layout Dimension: Circular - 0.079" (2.00mm)
Plunger Size: 0.040" (1.02mm) Dia
Operating Force - Mid Compression: 60.16gf
товару немає в наявності
В кошику  од. на суму  грн.
M80-4865005 M80-4865005 Harwin Inc. M80-486.pdf Description: DATAMATE J-TEK DIL FEMALE SMALL
Number of Rows: 2
Cable Termination: Crimp
Wire Type: Discrete
Contact Finish Thickness: 11.8µin (0.30µm)
Row Spacing: 0.079" (2.00mm)
Fastening Type: Screw Lock
Contact Type: Female Socket
Pitch: 0.079" (2.00mm)
Number of Positions: 50
Wire Gauge: 24-28 AWG
Mounting Type: Free Hanging (In-Line)
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Jackscrews, Polarizing Key, Potting Wall
Packaging: Bulk
на замовлення 16 шт:
термін постачання 21-31 дні (днів)
1+1821.26 грн
10+1489.97 грн
В кошику  од. на суму  грн.
M80-5T10642M1-03-331-00-000 M80-5T10642M1-03-331-00-000 Harwin Inc. PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf Description: 6+3 POS. MALE SIGNAL+POWER VERTI
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 9 (6 + 3 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4000000F1-10-329-00-000 Harwin Inc. M80-4000000F1-XX-XXX-00-000.pdf Description: 10 POS. FEMALE SIL 20AWG CABLE C
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 20 AWG
Number of Positions: 10
Pitch: 0.157" (4.00mm)
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Wire Type: Discrete
Cable Termination: Crimp and Solder
Number of Rows: 1
товару немає в наявності
В кошику  од. на суму  грн.
M20-9711445 M20-9711445 Harwin Inc. M20-971xx4x_Dwg.pdf Description: CONN HEADER R/A 14POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 14
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.276" (7.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4C11005F1-01-309-01-309 Harwin Inc. PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf Description: 10+2 POS. FEMALE 24-28AWG+RG174/
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 24-28 AWG
Number of Positions: 12 (10 + 2 Power)
Contact Type: Female Socket
Fastening Type: Screw Lock
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Wire Type: Discrete
Cable Termination: Crimp
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
G125-MH11005L1R G125-MH11005L1R Harwin Inc. PD007-Product-Datasheet-Gecko-range-signal-connectors-HRi.pdf Description: CONN HDR R/A 10POS
Packaging: Tape & Reel (TR)
Features: Board Lock
Connector Type: Header
Voltage Rating: 600VAC/DC
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
на замовлення 4250 шт:
термін постачання 21-31 дні (днів)
250+418.90 грн
500+384.15 грн
750+373.32 грн
1250+337.96 грн
1750+330.04 грн
Мінімальне замовлення: 250 шт
В кошику  од. на суму  грн.
G125-MH11005L1R G125-MH11005L1R Harwin Inc. PD007-Product-Datasheet-Gecko-range-signal-connectors-HRi.pdf Description: CONN HDR R/A 10POS
Packaging: Cut Tape (CT)
Features: Board Lock
Connector Type: Header
Voltage Rating: 600VAC/DC
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
на замовлення 4487 шт:
термін постачання 21-31 дні (днів)
1+618.69 грн
10+506.26 грн
100+430.31 грн
В кошику  од. на суму  грн.
F10-10003045R F10-10003045R Harwin Inc. DRG-03213-Technical-Drawing-Datasheet-F10-10XXXX45R-pdf.pdf Description: 0.5MM F 30 WAY SGL (6.40MM)
Number of Rows: 2
Mated Stacking Heights: 17.9mm
Contact Finish Thickness: FLASH
Pitch: 0.020" (0.50mm)
Number of Positions: 30
Mounting Type: Surface Mount
Contact Finish: Gold
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
товару немає в наявності
В кошику  од. на суму  грн.
F10-10003045R F10-10003045R Harwin Inc. DRG-03213-Technical-Drawing-Datasheet-F10-10XXXX45R-pdf.pdf Description: 0.5MM F 30 WAY SGL (6.40MM)
Number of Rows: 2
Mated Stacking Heights: 17.9mm
Contact Finish Thickness: FLASH
Pitch: 0.020" (0.50mm)
Number of Positions: 30
Mounting Type: Surface Mount
Contact Finish: Gold
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
на замовлення 479 шт:
термін постачання 21-31 дні (днів)
2+216.78 грн
10+177.59 грн
25+166.45 грн
50+148.73 грн
100+141.63 грн
250+132.76 грн
Мінімальне замовлення: 2 шт
В кошику  од. на суму  грн.
M55-2100242R M55-2100242R Harwin Inc. PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf Description: 2 POS FEM SIL HORIZ SMT T&R
Number of Rows: 1
Cable Termination: Solder
Wire Type: Ribbon Cable
Fastening Type: Latch Lock
Contact Type: Female Socket
Pitch: 0.050" (1.27mm)
Number of Positions: 24
Mounting Type: Board Edge, Surface Mount, Right Angle
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Board Guide, Solder Retention
Packaging: Tape & Reel (TR)
Insulation Height: 0.157" (4.00mm)
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Style: Board to Board or Cable
товару немає в наявності
В кошику  од. на суму  грн.
M55-2100242R M55-2100242R Harwin Inc. PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf Description: 2 POS FEM SIL HORIZ SMT T&R
Number of Rows: 1
Cable Termination: Solder
Wire Type: Ribbon Cable
Fastening Type: Latch Lock
Contact Type: Female Socket
Pitch: 0.050" (1.27mm)
Number of Positions: 24
Mounting Type: Board Edge, Surface Mount, Right Angle
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Board Guide, Solder Retention
Packaging: Cut Tape (CT)
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Style: Board to Board or Cable
Insulation Height: 0.157" (4.00mm)
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
на замовлення 734 шт:
термін постачання 21-31 дні (днів)
3+139.24 грн
10+113.59 грн
100+96.55 грн
Мінімальне замовлення: 3 шт
В кошику  од. на суму  грн.
M55-2101042R M55-2101042R Harwin Inc. PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf Description: 10 POS FEM SIL HORIZ SMT T&R
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Board Guide, Solder Retention
Packaging: Tape & Reel (TR)
Number of Rows: 1
Cable Termination: Solder
Wire Type: Ribbon Cable
Fastening Type: Latch Lock
Contact Type: Female Socket
Pitch: 0.050" (1.27mm)
Number of Positions: 10
Mounting Type: Board Edge, Surface Mount, Right Angle
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Style: Board to Board or Cable
Insulation Height: 0.157" (4.00mm)
Contact Finish - Post: Tin
товару немає в наявності
В кошику  од. на суму  грн.
M55-2101042R M55-2101042R Harwin Inc. PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf Description: 10 POS FEM SIL HORIZ SMT T&R
Number of Rows: 1
Cable Termination: Solder
Wire Type: Ribbon Cable
Fastening Type: Latch Lock
Contact Type: Female Socket
Pitch: 0.050" (1.27mm)
Number of Positions: 10
Mounting Type: Board Edge, Surface Mount, Right Angle
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Board Guide, Solder Retention
Packaging: Cut Tape (CT)
Insulation Height: 0.157" (4.00mm)
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Style: Board to Board or Cable
на замовлення 707 шт:
термін постачання 21-31 дні (днів)
2+173.26 грн
10+141.48 грн
100+120.24 грн
Мінімальне замовлення: 2 шт
В кошику  од. на суму  грн.
F11-11106042R F11-11106042R Harwin Inc. Description: 0.5MM F 60 WAY SGL+PWR (HORIZ)
Number of Rows: 2
Contact Finish Thickness: FLASH
Pitch: 0.020" (0.50mm)
Number of Positions: 60
Mounting Type: Surface Mount, Right Angle
Contact Finish: Gold
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
на замовлення 800 шт:
термін постачання 21-31 дні (днів)
400+282.31 грн
Мінімальне замовлення: 400 шт
В кошику  од. на суму  грн.
F11-11106042R F11-11106042R Harwin Inc. Description: 0.5MM F 60 WAY SGL+PWR (HORIZ)
Number of Rows: 2
Contact Finish Thickness: FLASH
Pitch: 0.020" (0.50mm)
Number of Positions: 60
Mounting Type: Surface Mount, Right Angle
Contact Finish: Gold
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
на замовлення 800 шт:
термін постачання 21-31 дні (днів)
1+500.81 грн
10+392.74 грн
25+362.07 грн
50+319.52 грн
100+300.48 грн
В кошику  од. на суму  грн.
M20-8900505R M20-890R.pdf
Виробник: Harwin Inc.
Description: 5 POS. MALE SIL HORIZONTAL SMT C
Features: Pick and Place
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 5
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Contact Shape: Square
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.236" (6.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M20-8760642R M20-876R.pdf
Виробник: Harwin Inc.
Description: 6+6 POS. MALE DIL VERTICAL SMT C
Features: Pick and Place
Packaging: Bulk
Connector Type: Header, Cuttable
Voltage Rating: 250VAC/DC
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 12
Number of Rows: 2
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.228" (5.80mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-8692605 M80-869.pdf
Виробник: Harwin Inc.
Description: 13+13 POS. MALE DIL VERTICAL THR
Features: Strain Relief Clips
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M300-3240696M2
Виробник: Harwin Inc.
Description: 3+3 POS. MALE DIL CABLE HOUSING,
Features: Jackscrew
Packaging: Bulk
Connector Type: Plug
Contact Termination: Crimp
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 6
Pitch: 0.118" (3.00mm)
Operating Temperature: -65°C ~ 175°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Row Spacing: 0.118" (3.00mm)
Insulation Material: Polyamide (PA4T), Nylon 4T
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
B5743-214-M-T-1 M80-867.pdf
B5743-214-M-T-1
Виробник: Harwin Inc.
Description: 7+7 POS. MALE DIL VERTICAL THROU
Packaging: Tube
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
B5740-103-F-C-2 M80-898.pdf
B5740-103-F-C-2
Виробник: Harwin Inc.
Description: 3 POS. FEMALE SIL 24-28AWG CABLE
Number of Rows: 1
Cable Termination: Crimp
Wire Type: Discrete
Contact Finish Thickness: 11.8µin (0.30µm)
Fastening Type: Locking Ramp
Contact Type: Female Socket
Pitch: 0.079" (2.00mm)
Number of Positions: 3
Wire Gauge: 24-28 AWG
Mounting Type: Free Hanging (In-Line)
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Packaging: Bulk
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10405MC M80-5T1XXXXMC.pdf
Виробник: Harwin Inc.
Description: 2+2 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M300-3241096M2
Виробник: Harwin Inc.
Description: 5+5 POS. MALE DIL CABLE HOUSING,
Features: Jackscrew
Packaging: Bulk
Connector Type: Plug
Contact Termination: Crimp
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 10
Pitch: 0.118" (3.00mm)
Operating Temperature: -65°C ~ 175°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Row Spacing: 0.118" (3.00mm)
Insulation Material: Polyamide (PA4T), Nylon 4T
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-5010605 M80-501.pdf
Виробник: Harwin Inc.
Description: 3+3 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5001005
Виробник: Harwin Inc.
Description: 5+5 POS. MALE DIL VERTICAL THROU
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5002242
Виробник: Harwin Inc.
Description: 11+11 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 22
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5002842
Виробник: Harwin Inc.
Description: 14+14 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 28
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10605ME M80-5T1XXXXME.pdf
Виробник: Harwin Inc.
Description: 3+3 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 121°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5002005 M80-500.pdf
Виробник: Harwin Inc.
Description: 10+10 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T20422ME M80-5T2XXXXME.pdf
Виробник: Harwin Inc.
Description: 2+2 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5003242
Виробник: Harwin Inc.
Description: 16+16 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 32
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T21222ME DRG-01670-Technical-Drawing-Datasheet-M80-5T2XXXXME-pdf.pdf
Виробник: Harwin Inc.
Description: 6+6 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Turn Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T14042ME M80-5T1XXXXME.pdf
Виробник: Harwin Inc.
Description: 20+20 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 121°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5111205 M80-511.pdf
Виробник: Harwin Inc.
Description: 6+6 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T21205MF M80-5T2XXXXMF.pdf
Виробник: Harwin Inc.
Description: 6+6 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T21605MF M80-5T2XXXXMF.pdf
Виробник: Harwin Inc.
Description: 8+8 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 16
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5112605 M80-511.pdf
Виробник: Harwin Inc.
Description: 13+13 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5114205 M80-511.pdf
Виробник: Harwin Inc.
Description: 21+21 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 42
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T24205MF M80-5T2XXXXMF.pdf
Виробник: Harwin Inc.
Description: 21+21 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 42
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5003805 M80-500.pdf
Виробник: Harwin Inc.
Description: 19+19 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 38
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13005MB M80-5T1XXXXMB.pdf
Виробник: Harwin Inc.
Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T11042M3
Виробник: Harwin Inc.
Description: 5+5 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T12022M3 PD004-Product-Datasheet-Datamate-range-signal-connectors-HRi.pdf
M80-5T12022M3
Виробник: Harwin Inc.
Description: 10+10 POS. MALE DIL VERTICAL THR
Packaging: Bulk
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T11005ME M80-5T1XXXXME.pdf
Виробник: Harwin Inc.
Description: 5+5 POS. MALE DIL VERTICAL THROU
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Length - Post: 0.130" (3.30mm)
Contact Shape: Circular
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Screw Lock
Contact Type: Male Pin
Operating Temperature: -55°C ~ 121°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 10
Mounting Type: Through Hole
Current Rating (Amps): 2.2A
Voltage Rating: 800VAC/DC
Connector Type: Header
Features: Keying Slot, Mounting Flange
Packaging: Bulk
товару немає в наявності
В кошику  од. на суму  грн.
M80-4T11042F3 M80-4T1XXXXF3.pdf
Виробник: Harwin Inc.
Description: 5+5 POS. FEMALE DIL VERTICAL THR
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Positions: 10
Mounting Type: Through Hole
Current Rating (Amps): 2.2A
Voltage Rating: 800VAC/DC
Connector Type: Receptacle
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Height: 0.205" (5.20mm)
Contact Length - Post: 0.118" (3.00mm)
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Mated Stacking Heights: 7.3mm, 7.55mm
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Threaded
Contact Type: Female Socket
товару немає в наявності
В кошику  од. на суму  грн.
M80-5115005 M80-511.pdf
Виробник: Harwin Inc.
Description: 25+25 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Threaded
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 50
Mounting Type: Through Hole
Connector Type: Header
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Length - Post: 0.173" (4.40mm)
Contact Shape: Circular
Contact Finish - Post: Gold
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10605M3
Виробник: Harwin Inc.
Description: 3+3 POS. MALE DIL VERTICAL THROU
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Length - Post: 0.130" (3.30mm)
Contact Shape: Circular
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Threaded
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 6
Mounting Type: Through Hole
Voltage Rating: 800V
Connector Type: Header
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Overall Contact Length: 0.350" (8.89mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T12642ME M80-5T1XXXXME.pdf
Виробник: Harwin Inc.
Description: 13+13 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 121°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4T13442F3 M80-4T1XXXXF3.pdf
Виробник: Harwin Inc.
Description: 17+17 POS. FEMALE DIL VERTICAL T
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 34
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13042ME M80-5T1XXXXME.pdf
Виробник: Harwin Inc.
Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 121°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4T12042F3 M80-4T1XXXXF3.pdf
Виробник: Harwin Inc.
Description: 10+10 POS. FEMALE DIL VERTICAL T
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 20
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13422M3 M80-5T1XXXXM3.pdf
Виробник: Harwin Inc.
Description: 17+17 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4000000F2-04-321-00-000
Виробник: Harwin Inc.
Description: 4 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 20A
Mounting Type: Through Hole
Number of Positions: 4
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.205" (5.20mm)
Number of Rows: 1
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13842M3 M80-5T1XXXXM3.pdf
Виробник: Harwin Inc.
Description: 19+19 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 38
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T14022M3 M80-5T1XXXXM3.pdf
Виробник: Harwin Inc.
Description: 20+20 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4T10205F1-02-321-00-000
Виробник: Harwin Inc.
Description: 2+2 POS. FEMALE SIGNAL+POWER VER
Features: Jackscrews, Mating Flange, Mounting Flange
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Mounting Type: Through Hole
Number of Positions: 4 (2 + 2 Power)
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Gold
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T13042M3 M80-5T1XXXXM3.pdf
Виробник: Harwin Inc.
Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4000000F2-06-321-00-000
Виробник: Harwin Inc.
Description: 6 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 20A
Mounting Type: Through Hole
Number of Positions: 6
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.205" (5.20mm)
Number of Rows: 1
товару немає в наявності
В кошику  од. на суму  грн.
P70-2520045R DRG-03237-Technical-Drawing-Datasheet-P70-25X-pdf.pdf
P70-2520045R
Виробник: Harwin Inc.
Description: SMTT SPG LOADED POGO PIN 3.9MM
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Current Rating (Amps): 8A
Mounting Type: Surface Mount
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Maximum Working Height: 0.154" (3.91mm)
Recommended Working Height: 0.134" (3.41mm)
Minimum Working Height: 0.114" (2.90mm)
Pad Layout Dimension: Circular - 0.079" (2.00mm)
Plunger Size: 0.040" (1.02mm) Dia
Operating Force - Mid Compression: 60.16gf
товару немає в наявності
В кошику  од. на суму  грн.
P70-2520045R DRG-03237-Technical-Drawing-Datasheet-P70-25X-pdf.pdf
P70-2520045R
Виробник: Harwin Inc.
Description: SMTT SPG LOADED POGO PIN 3.9MM
Packaging: Cut Tape (CT)
Contact Finish: Gold
Current Rating (Amps): 8A
Mounting Type: Surface Mount
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Maximum Working Height: 0.154" (3.91mm)
Recommended Working Height: 0.134" (3.41mm)
Minimum Working Height: 0.114" (2.90mm)
Pad Layout Dimension: Circular - 0.079" (2.00mm)
Plunger Size: 0.040" (1.02mm) Dia
Operating Force - Mid Compression: 60.16gf
товару немає в наявності
В кошику  од. на суму  грн.
M80-4865005 M80-486.pdf
M80-4865005
Виробник: Harwin Inc.
Description: DATAMATE J-TEK DIL FEMALE SMALL
Number of Rows: 2
Cable Termination: Crimp
Wire Type: Discrete
Contact Finish Thickness: 11.8µin (0.30µm)
Row Spacing: 0.079" (2.00mm)
Fastening Type: Screw Lock
Contact Type: Female Socket
Pitch: 0.079" (2.00mm)
Number of Positions: 50
Wire Gauge: 24-28 AWG
Mounting Type: Free Hanging (In-Line)
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Jackscrews, Polarizing Key, Potting Wall
Packaging: Bulk
на замовлення 16 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1821.26 грн
10+1489.97 грн
В кошику  од. на суму  грн.
M80-5T10642M1-03-331-00-000 PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf
M80-5T10642M1-03-331-00-000
Виробник: Harwin Inc.
Description: 6+3 POS. MALE SIGNAL+POWER VERTI
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 9 (6 + 3 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4000000F1-10-329-00-000 M80-4000000F1-XX-XXX-00-000.pdf
Виробник: Harwin Inc.
Description: 10 POS. FEMALE SIL 20AWG CABLE C
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 20 AWG
Number of Positions: 10
Pitch: 0.157" (4.00mm)
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Wire Type: Discrete
Cable Termination: Crimp and Solder
Number of Rows: 1
товару немає в наявності
В кошику  од. на суму  грн.
M20-9711445 M20-971xx4x_Dwg.pdf
M20-9711445
Виробник: Harwin Inc.
Description: CONN HEADER R/A 14POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 14
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.276" (7.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-4C11005F1-01-309-01-309 PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf
Виробник: Harwin Inc.
Description: 10+2 POS. FEMALE 24-28AWG+RG174/
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 24-28 AWG
Number of Positions: 12 (10 + 2 Power)
Contact Type: Female Socket
Fastening Type: Screw Lock
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Wire Type: Discrete
Cable Termination: Crimp
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
G125-MH11005L1R PD007-Product-Datasheet-Gecko-range-signal-connectors-HRi.pdf
G125-MH11005L1R
Виробник: Harwin Inc.
Description: CONN HDR R/A 10POS
Packaging: Tape & Reel (TR)
Features: Board Lock
Connector Type: Header
Voltage Rating: 600VAC/DC
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
на замовлення 4250 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
250+418.90 грн
500+384.15 грн
750+373.32 грн
1250+337.96 грн
1750+330.04 грн
Мінімальне замовлення: 250 шт
В кошику  од. на суму  грн.
G125-MH11005L1R PD007-Product-Datasheet-Gecko-range-signal-connectors-HRi.pdf
G125-MH11005L1R
Виробник: Harwin Inc.
Description: CONN HDR R/A 10POS
Packaging: Cut Tape (CT)
Features: Board Lock
Connector Type: Header
Voltage Rating: 600VAC/DC
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.218" (5.55mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
на замовлення 4487 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+618.69 грн
10+506.26 грн
100+430.31 грн
В кошику  од. на суму  грн.
F10-10003045R DRG-03213-Technical-Drawing-Datasheet-F10-10XXXX45R-pdf.pdf
F10-10003045R
Виробник: Harwin Inc.
Description: 0.5MM F 30 WAY SGL (6.40MM)
Number of Rows: 2
Mated Stacking Heights: 17.9mm
Contact Finish Thickness: FLASH
Pitch: 0.020" (0.50mm)
Number of Positions: 30
Mounting Type: Surface Mount
Contact Finish: Gold
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
товару немає в наявності
В кошику  од. на суму  грн.
F10-10003045R DRG-03213-Technical-Drawing-Datasheet-F10-10XXXX45R-pdf.pdf
F10-10003045R
Виробник: Harwin Inc.
Description: 0.5MM F 30 WAY SGL (6.40MM)
Number of Rows: 2
Mated Stacking Heights: 17.9mm
Contact Finish Thickness: FLASH
Pitch: 0.020" (0.50mm)
Number of Positions: 30
Mounting Type: Surface Mount
Contact Finish: Gold
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
на замовлення 479 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+216.78 грн
10+177.59 грн
25+166.45 грн
50+148.73 грн
100+141.63 грн
250+132.76 грн
Мінімальне замовлення: 2 шт
В кошику  од. на суму  грн.
M55-2100242R PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf
M55-2100242R
Виробник: Harwin Inc.
Description: 2 POS FEM SIL HORIZ SMT T&R
Number of Rows: 1
Cable Termination: Solder
Wire Type: Ribbon Cable
Fastening Type: Latch Lock
Contact Type: Female Socket
Pitch: 0.050" (1.27mm)
Number of Positions: 24
Mounting Type: Board Edge, Surface Mount, Right Angle
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Board Guide, Solder Retention
Packaging: Tape & Reel (TR)
Insulation Height: 0.157" (4.00mm)
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Style: Board to Board or Cable
товару немає в наявності
В кошику  од. на суму  грн.
M55-2100242R PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf
M55-2100242R
Виробник: Harwin Inc.
Description: 2 POS FEM SIL HORIZ SMT T&R
Number of Rows: 1
Cable Termination: Solder
Wire Type: Ribbon Cable
Fastening Type: Latch Lock
Contact Type: Female Socket
Pitch: 0.050" (1.27mm)
Number of Positions: 24
Mounting Type: Board Edge, Surface Mount, Right Angle
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Board Guide, Solder Retention
Packaging: Cut Tape (CT)
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Style: Board to Board or Cable
Insulation Height: 0.157" (4.00mm)
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
на замовлення 734 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
3+139.24 грн
10+113.59 грн
100+96.55 грн
Мінімальне замовлення: 3 шт
В кошику  од. на суму  грн.
M55-2101042R PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf
M55-2101042R
Виробник: Harwin Inc.
Description: 10 POS FEM SIL HORIZ SMT T&R
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Board Guide, Solder Retention
Packaging: Tape & Reel (TR)
Number of Rows: 1
Cable Termination: Solder
Wire Type: Ribbon Cable
Fastening Type: Latch Lock
Contact Type: Female Socket
Pitch: 0.050" (1.27mm)
Number of Positions: 10
Mounting Type: Board Edge, Surface Mount, Right Angle
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Style: Board to Board or Cable
Insulation Height: 0.157" (4.00mm)
Contact Finish - Post: Tin
товару немає в наявності
В кошику  од. на суму  грн.
M55-2101042R PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf
M55-2101042R
Виробник: Harwin Inc.
Description: 10 POS FEM SIL HORIZ SMT T&R
Number of Rows: 1
Cable Termination: Solder
Wire Type: Ribbon Cable
Fastening Type: Latch Lock
Contact Type: Female Socket
Pitch: 0.050" (1.27mm)
Number of Positions: 10
Mounting Type: Board Edge, Surface Mount, Right Angle
Color: Black
Contact Finish: Gold
Connector Type: Receptacle
Features: Board Guide, Solder Retention
Packaging: Cut Tape (CT)
Insulation Height: 0.157" (4.00mm)
Contact Finish - Post: Tin
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Style: Board to Board or Cable
на замовлення 707 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+173.26 грн
10+141.48 грн
100+120.24 грн
Мінімальне замовлення: 2 шт
В кошику  од. на суму  грн.
F11-11106042R
F11-11106042R
Виробник: Harwin Inc.
Description: 0.5MM F 60 WAY SGL+PWR (HORIZ)
Number of Rows: 2
Contact Finish Thickness: FLASH
Pitch: 0.020" (0.50mm)
Number of Positions: 60
Mounting Type: Surface Mount, Right Angle
Contact Finish: Gold
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
на замовлення 800 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
400+282.31 грн
Мінімальне замовлення: 400 шт
В кошику  од. на суму  грн.
F11-11106042R
F11-11106042R
Виробник: Harwin Inc.
Description: 0.5MM F 60 WAY SGL+PWR (HORIZ)
Number of Rows: 2
Contact Finish Thickness: FLASH
Pitch: 0.020" (0.50mm)
Number of Positions: 60
Mounting Type: Surface Mount, Right Angle
Contact Finish: Gold
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
на замовлення 800 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+500.81 грн
10+392.74 грн
25+362.07 грн
50+319.52 грн
100+300.48 грн
В кошику  од. на суму  грн.
Обрати Сторінку:   [  << Попередня Сторінка ]  1 22 44 66 88 110 132 154 176 198 209 210 211 212 213 214 215 216 217 218 219 220  [ Наступна Сторінка >> ]
