Продукція > HT INSTRUMENTS > Всі товари виробника HT INSTRUMENTS (110) > Сторінка 2 з 2

Виробник: HT INSTRUMENTS
Category: Calibrators
Description: Meter: calibrator; voltage,current; VDC: 0÷100mV,10V; I DC: 0÷24mA
Type of meter: calibrator
Kind of calibrator: current; voltage
Kind of display used: LCD
DC voltage measuring range: 0...100mV; 10V
DC voltage measuring accuracy: ±(0.02% + 4 digit)
DC current measuring range: 0...24mA
DC current measuring accuracy: ±(0.02% + 4 digit)
Voltage source: 0...100mV; 0...10V
Voltage source accuracy: ±(0,02% + 4 digits)
Current source accuracy: ±(0,02% + 4 digit)
Current source: 0...24mA
Dimensions: 195x92x55mm
Power supply: rechargeable battery Li-Ion 7,4V x1
Measuring instrument features: 24V loop supply voltage; measurement and sourcing of current in mA and A; measurement or generation of voltage in mV and V; simultaneous readout in mA and % of range
Standard equipment: 2 crocodile clips; battery charger; hard case; test leads ( 2pcs.)
Measurement: DC current; DC voltage
Battery/ rechargeable battery: rechargeable battery Li-Ion 7,4V x1

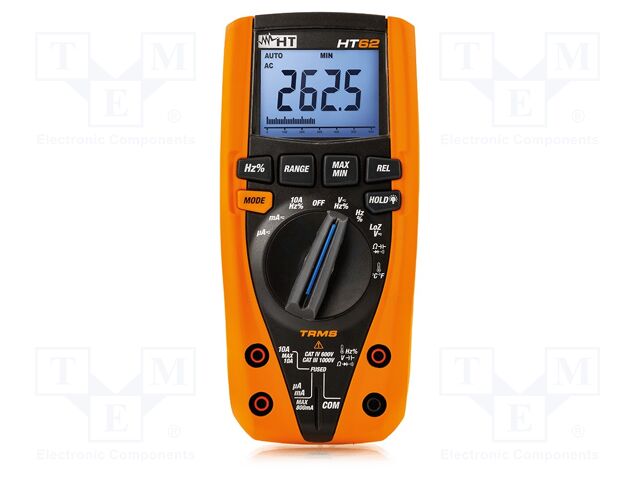

Виробник: HT INSTRUMENTS
Category: Portable digital multimeters
Description: Multimeter calibrator; LCD; VDC: 50mV,500mV,5V,50V,500V,1kV
Kind of display used: LCD
Type of meter: multimeter calibrator
True effective value measurement: True RMS AC
Resistance measuring accuracy: ±(0%+10% range)
DC current measuring range: 50mA; 1A
AC current measuring range: 50mA; 1A
AC voltage measuring range: 50mV; 500mV; 5V; 50V; 500V; 1kV
DC voltage measuring range: 50mV; 500mV; 5V; 50V; 500V; 1kV
DC voltage measuring accuracy: ±(0.05% + 5 digit)
DC current measuring accuracy: ±(0.05% + 5 digit)
Dimensions: 207x95x52mm
AC voltage measuring accuracy: ±(0.5% + 20 digit)
AC current measuring accuracy: ±(1% + 20 digit)
Frequency measuring accuracy: ±3 digit
Frequency measuring range: 500Hz; 5kHz; 50kHz; 100kHz
Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Measuring instrument features: 0% or 100% of signal value (4mA, 20mA) source function; 24V loop supply voltage; automatic and manual step setting; HART range with loop and built-in 250Ω resistor; HOLD function; MIN/MAX/AVG function
Standard equipment: 2 crocodile clips; magnetic catch; test leads
Measurement: AC current; AC voltage; DC current; DC voltage; frequency; resistance
Continuity test: acoustic indication; <30Ω
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Power supply: battery LR6 AA 1,5V x4
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-2-030

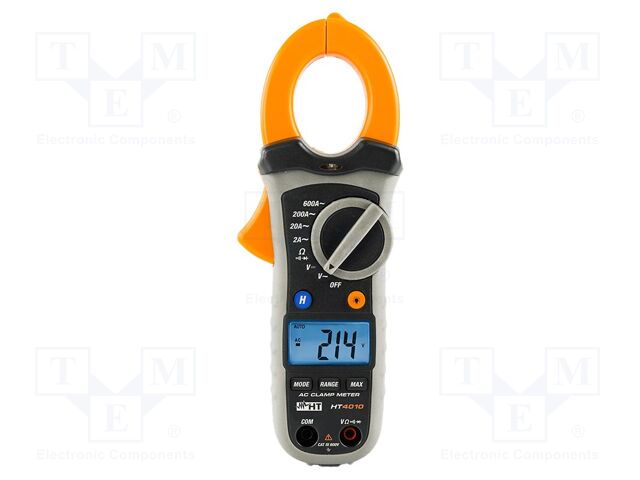

Виробник: HT INSTRUMENTS
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; pincers type; LCD; Øcable: 30mm; Test: diodes
Type of meter: multifunction
Measurement: AC current; AC voltage; continuity; DC voltage; resistance
Kind of display used: LCD
DC voltage measuring range: 200mV; 2V; 20V; 200V; 1kV
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring range: 200mV; 2V; 20V; 200V; 1kV
AC voltage measuring accuracy: ±(1% + 4 digit)
Resistance measuring range: 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ
Resistance measuring accuracy: ±(1%+5 digit)
Continuity test: <100Ω
Power supply: battery 6F22 9V x1
Standard equipment: carrying case; test leads ( 2pcs.); user's manual
Conform to the norm: CAT III 600V; CAT III 1000V; EN 61010-1
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; MAX function
Illumination: yes
Operating temperature: 5...40°C
Max. diameter of measured cable: 30mm
Dimensions: 215x74x43mm
Pollution degree: 2
AC current measuring range: 2A; 20A; 200A; 600A
AC current measuring accuracy: ±(2.5% + 4 digit)
Test: diodes
Battery/ rechargeable battery: battery 6F22 9V x1
Kind of meter: pincers type

Виробник: HT INSTRUMENTS
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; pincers type; LCD; Øcable: 30mm; True RMS
Type of meter: multifunction
Kind of meter: pincers type
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; MIN/MAX function; PEAK function; REL function
Kind of display used: LCD
Max. diameter of measured cable: 30mm
AC current measuring range: 60A; 600A
AC current measuring accuracy: ±(2.8% + 8 digit)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1% + 10 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF
Capacitance measuring accuracy: ±(2.5%+ 5 digit)
Frequency measuring range: 99.99Hz; 999.9Hz; 9.999kHz; 60kHz
Frequency measuring accuracy: ±(1%+5 digit)
Temperature measuring range: -20...760°C
Temperature measurement accuracy: ±(2% + 3°C)
Test: diodes
Pollution degree: 2
Dimensions: 215x74x43mm
Power supply: battery 6F22 9V x1
Measurement: AC current; AC voltage; capacitance; continuity; DC voltage; duty cycle; frequency; resistance; temperature
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-1
Operating temperature: 5...40°C
Standard equipment: adapter for connecting K-type probe to the meter; carrying case; K-type temperature probe; test leads ( 2pcs.); user's manual
Battery/ rechargeable battery: battery 6F22 9V x1
Continuity test: <60Ω
Illumination: yes
Bargraph: yes
Resistance measuring accuracy: ±(1%+5 digit)

Виробник: HT INSTRUMENTS
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; pincers type; Øcable: 30mm; LCD; True RMS
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Kind of display used: LCD
Bargraph: yes
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1% + 4 digit)
DC current measuring range: 60A; 600A
DC current measuring accuracy: ±(2% + 8 digit)
AC current measuring range: 60A; 600A
AC current measuring accuracy: ±(2.2% + 8 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF
Capacitance measuring accuracy: ±(2.5%+ 5 digit)
Frequency measuring range: 99.99Hz; 999.9Hz; 9.999kHz; 60kHz
Frequency measuring accuracy: ±(1%+5 digit)
Temperature measuring range: -20...760°C
Temperature measurement accuracy: ±(2% + 3°C)
Resistance measuring accuracy: ±(1%+5 digit)
Continuity test: <60Ω
Power supply: battery 6F22 9V x1
Standard equipment: adapter for connecting K-type probe to the meter; carrying case; K-type temperature probe; test leads ( 2pcs.); user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-1
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; MIN/MAX function; PEAK function; REL function
Battery/ rechargeable battery: battery 6F22 9V x1
Test: diodes
Kind of meter: pincers type
Illumination: yes
Operating temperature: 5...40°C
Max. diameter of measured cable: 30mm
Dimensions: 215x74x43mm
Pollution degree: 2

Виробник: HT INSTRUMENTS
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; pincers type; LCD; Øcable: 45mm; True RMS
Type of meter: multifunction
Kind of meter: pincers type
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; MIN/MAX function; PEAK function; REL function
Kind of display used: LCD
Max. diameter of measured cable: 45mm
AC current measuring range: 60A; 600A; 1kA
AC current measuring accuracy: ±(2.8% + 8 digit)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1% + 4 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Pollution degree: 2
Dimensions: 252x88x51mm
Power supply: battery 6F22 9V x1
Measurement: AC current; AC voltage; continuity; DC voltage; resistance
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-1
Operating temperature: 5...40°C
Standard equipment: carrying case; test leads ( 2pcs.); user's manual
Battery/ rechargeable battery: battery 6F22 9V x1
Continuity test: <50Ω
Illumination: yes
Bargraph: yes
Resistance measuring accuracy: ±(1%+5 digit)

Виробник: HT INSTRUMENTS
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; pincers type; Øcable: 45mm; LCD; True RMS
Type of meter: multifunction
Kind of meter: pincers type
Max. diameter of measured cable: 45mm
Kind of display used: LCD
DC current measuring range: 100mA...999.9A
AC current measuring range: 500mA...999.9A
Measuring instrument features: automatic power-off; autoranging; HOLD function; MIN/MAX function; PEAK function
DC current measuring accuracy: ±(2% + 5 digit)
AC current measuring accuracy: ±(1% + 5 digit)
DC voltage measuring range: 100mV...999.9V
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring range: 100mV...999.9V
AC voltage measuring accuracy: ±(1% + 3 digit)
Resistance measuring accuracy: ±(1%+5 digit)
True effective value measurement: True RMS
Resistance measuring range: 100mΩ...29.9kΩ
Frequency measuring range: 42.5...69Hz
Frequency measuring accuracy: ±(1%+5 digit)
Pollution degree: 2
Dimensions: 252x88x44mm
Power supply: battery LR03 AAA 1,5V x2
Standard equipment: calibration certificate; carrying case; crocodile clip x2; test leads ( 2pcs.); user's manual
Measurement: AC current; active electric energy; active power; AC voltage; apparent power; continuity; DC current; DC voltage; frequency; harmonics; inrush current; phase sequence; power; power factor; reactive electric energy; reactive power; resistance
Conform to the norm: CAT IV 600V; EN 61010-1; EN 61010-2-032; EN 61010-031; EN 61326-1
Operating temperature: 0...40°C
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Continuity test: <150Ω
Illumination: yes
Bargraph: yes

Виробник: HT INSTRUMENTS
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; pincers type; Øcable: 45mm; LCD; True RMS
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Kind of display used: LCD
Bargraph: yes
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1% + 4 digit)
DC current measuring range: 60A; 600A; 1kA
DC current measuring accuracy: ±(2% + 8 digit)
AC current measuring range: 60A; 600A; 1kA
AC current measuring accuracy: ±(2.2% + 8 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF
Capacitance measuring accuracy: ±(2.5%+ 5 digit)
Frequency measuring range: 99.99Hz; 999.9Hz; 9.999kHz; 60kHz
Frequency measuring accuracy: ±(1%+5 digit)
Temperature measuring range: -20...760°C
Temperature measurement accuracy: ±(2% + 3°C)
Resistance measuring accuracy: ±(1%+5 digit)
Continuity test: <60Ω
Power supply: battery 6F22 9V x1
Standard equipment: adapter for connecting K-type probe to the meter; carrying case; K-type temperature probe; test leads ( 2pcs.); user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-1; EN 61326-1
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; MIN/MAX function; PEAK function; REL function
Battery/ rechargeable battery: battery 6F22 9V x1
Test: diodes
Kind of meter: pincers type
IP rating: IP20
Illumination: yes
Operating temperature: 0...40°C
Max. diameter of measured cable: 45mm
Dimensions: 252x88x44mm
Pollution degree: 2

Виробник: HT INSTRUMENTS
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; pincers type; Øcable: 45mm; LCD; True RMS
Type of meter: multifunction
Kind of meter: pincers type
Max. diameter of measured cable: 45mm
Kind of display used: LCD
DC current measuring range: 60A; 600A; 1kA
AC current measuring range: 1...999.9A
Measuring instrument features: automatic power-off; autoranging; graphical display of measurement results; HOLD function; MIN/MAX function; PEAK function; REL function
DC current measuring accuracy: ±(2% + 5 digit)
AC current measuring accuracy: ±(1% + 5 digit)
DC voltage measuring range: 100mV...1.5kV
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring range: 1...999.9V
AC voltage measuring accuracy: ±(1% + 3 digit)
Resistance measuring accuracy: ±(1%+5 digit)
True effective value measurement: True RMS
Resistance measuring range: 100mΩ...29.9kΩ
Frequency measuring range: 42.5...69Hz
Frequency measuring accuracy: ±(1%+5 digit)
Pollution degree: 2
Dimensions: 252x88x44mm
Power supply: battery LR03 AAA 1,5V x2
Standard equipment: calibration certificate; carrying case; crocodile clip x2; manual (CD); software; test leads ( 2pcs.)
Measurement: AC current; active electric energy; active power; AC voltage; apparent power; continuity; DC current; DC voltage; frequency; harmonics; inrush current; phase sequence; power; power factor; reactive electric energy; reactive power; resistance
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-1; EN 61010-2-032; EN 61010-031; EN 61326-1; EN 301328V2.1.1; EN 301489-17V3.1.1
Interface: WiFi
IP rating: IP20
Operating temperature: 0...40°C
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Continuity test: <150Ω
Illumination: yes
Measurement memory: 99

Виробник: HT INSTRUMENTS
Category: Meters and AC/DC Clamp Probes

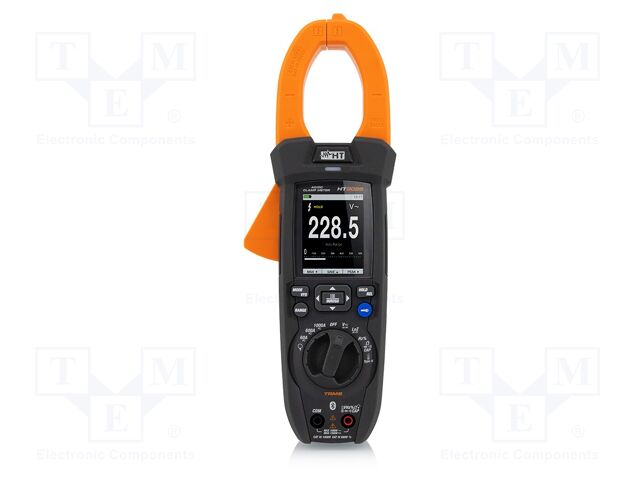

Description: Meter: multifunction; pincers type; Øcable: 40mm; LCD TFT; IP40
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; inrush current; resistance; temperature
Kind of display used: LCD TFT
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1.5kV
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1.2% + 5 digit)
DC current measuring range: 60A; 600A; 1kA
DC current measuring accuracy: ±(2% + 8 digit)
AC current measuring range: 60A; 600A; 1kA
AC current measuring accuracy: ±(2.5% + 5 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF; 100mF
Capacitance measuring accuracy: ±(3%+ 8 digit)
Frequency measuring range: 60Hz; 600Hz; 6kHz; 60kHz; 600kHz; 6MHz; 10MHz
Frequency measuring accuracy: ±(0.2%+5 digit)
Temperature measuring range: -40...1000°C
Resistance measuring accuracy: ±(0.8%+5 digit)
Continuity test: <50Ω
Power supply: rechargeable battery Li-Ion 7,4V 1200mAh x1
Standard equipment: adapter for connecting K-type probe to the meter; battery charger; calibration certificate; carrying case; K-type temperature probe; test leads ( 2pcs.); user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-1; EN 61326-1
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; low input impedance function (LoZ); MIN/MAX function; PEAK function; REL function; white LED torch
Battery/ rechargeable battery: rechargeable battery Li-Ion 7,4V 1200mAh x1
Illumination: yes
Dimensions: 280x100x50mm
Max. diameter of measured cable: 40mm
Temperature measurement accuracy: ±(1.5% + 3°C)
Pollution degree: 2
Measurement memory: 128
Interface: Bluetooth
Test: diodes
Kind of meter: pincers type
IP rating: IP40
Bargraph: yes
Operating temperature: 5...40°C

Виробник: HT INSTRUMENTS
Category: Meters and AC/DC Clamp Probes
Description: Current clamp adapter; Øcable: 52mm; I DC: 1÷1000A; ±1%; Len: 2m
Type of test accessories: current clamp adapter
Max. diameter of measured cable: 52mm
DC current measuring range: 1...1000A
AC current measuring accuracy: ±1%
Dimensions: 213x85x24mm
Power supply: battery 6F22 9V x1
Conform to the norm: CAT III 600V
Cable length: 2m
Measurement frequency: 20kHz

Виробник: HT INSTRUMENTS
Category: Sound Meters
Description: Data logger; sound level; IP40; Display: LCD; 260x65x50mm; 0÷40°C
Operating temperature: 0...40°C
Standard equipment: hard case; stand; USB cable; windshield
Type of meter: data logger
Measurement: sound level
IP rating: IP40
Kind of display used: LCD
Interface: USB
Body dimensions: 260x65x50mm
Sound level measuring resolution: 0.1dB
Sound level measuring accuracy: ±1.4dB
Sound level measuring range: 30...130dB
Measurement memory: 32700
Power supply: battery 6F22 9V x1

Виробник: HT INSTRUMENTS
Category: Anemometers and Thermoanemometers
Description: Thermoanemometer; LCD; 0÷50°C; 0÷100%RH; 190x65x45mm
Type of meter: thermoanemometer
Kind of display used: LCD
Temperature measuring range: 0...50°C
Humidity measuring range: 0...100% RH
Measuring range: 0,1...20m/s; 0,4...72km/h; 20...3937ft/min
Measurement accuracy: ±(5%+0.03 digit)
Power supply: battery 6F22 9V x1
Measuring instrument features: automatic power-off; HOLD function
Measurement: humidity; temperature; wind speed
Measuring unit: ft/min; km/h; knots; mph; m/s
Dimensions: 190x65x45mm
Battery/ rechargeable battery: battery 6F22 9V x1
Kind of meter: digital

Виробник: HT INSTRUMENTS
Category: Thermohygrometers
Description: Thermo-hygrometer; LCD; -20÷60°C; 0÷100%RH; Accur: ±0.5°C; IP40
Type of meter: thermo-hygrometer
Kind of display used: LCD
Temperature measuring range: -20...60°C
Humidity measuring range: 0...100% RH
Temperature measurement accuracy: ±0.5°C
Humidity measuring accuracy: ±3%
Power supply: battery 6F22 9V x1
Measurement: dew point; humidity; temperature; wet bulb
Measuring instrument features: HOLD function; MIN/MAX function
Standard equipment: hard case
Dimensions: 270x65x45mm
IP rating: IP40
Battery/ rechargeable battery: battery 6F22 9V x1
Illumination: yes

Виробник: HT INSTRUMENTS
Category: Thermohygrometers
Description: Thermo-hygrometer; LCD; Sampling: 3x/s; -28÷77°C; 0÷100%RH; 8: 1
Type of meter: thermo-hygrometer
Kind of display used: LCD
Sampling: 3x/s
Temperature measuring range: -28...77°C
Non-contact temperature measuring range: -50...200°C
Non-contact temperature measuring accuracy: ±2%; ±2°C
Humidity measuring range: 0...100% RH
Optical resolution: 8:1
Temperature measurement accuracy: ±2°C
Humidity measuring accuracy: ±3%
Power supply: battery 6F22 9V x1
Measurement: building materials humidity; building materials humidity (non-invasive); humidity; non-contact temeprature (IR); temperature; wood humidity; wood humidity (non-invasive)
Measuring instrument features: HOLD function; MIN/MAX function
Standard equipment: hard case; moisture probe
Dimensions: 230x65x45mm
IP rating: IP40
Battery/ rechargeable battery: battery 6F22 9V x1
Illumination: yes

Виробник: HT INSTRUMENTS
Category: Inspection Cameras, Boroscopes

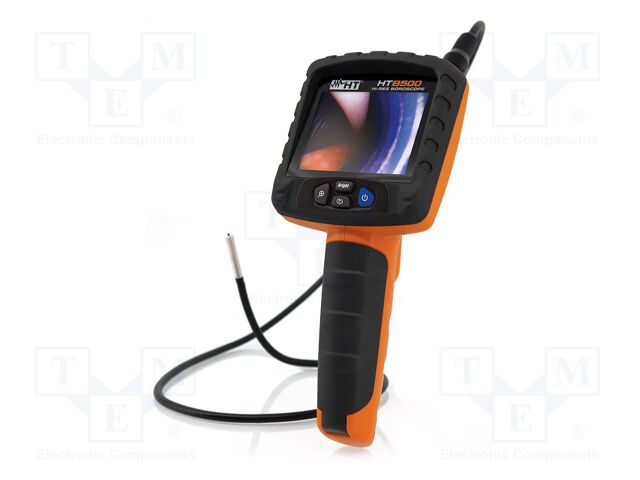

Description: Inspection camera; Display: LCD 3,5"; Cam.res: 640x480; Len: 1m
Type of meter: inspection camera
Kind of display used: LCD 3,5"
Camera resolution: 640x480
IP rating: IP54; IP67 (probe)
Power supply: rechargeable battery Li-Ion 3,7V 2000mAh x1
Measuring instrument features: LED for measurement spot illumination; SD card slot; TV-Out (PAL/NTSC)
Standard equipment: case
Display resolution: 640x320
Operating temperature: 0...50°C
Probe diameter: 6mm
Cable length: 1m

Виробник: HT INSTRUMENTS
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4 digit; VDC: 400mV,4V,40V,400V,600V
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance
Kind of display used: LCD
Display parameters: 4 digit
DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring range: 4V; 40V; 400V; 600V
AC voltage measuring accuracy: ±(1% + 3 digit)
DC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 4A; 10A
DC current measuring accuracy: ±(1% + 3 digit)
AC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 6A; 10A
AC current measuring accuracy: ±(1.2% + 3 digit)
True effective value measurement: True RMS
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF
Capacitance measuring accuracy: ±(3%+ 5 digit)
Frequency measuring range: 10Hz...10kHz
Frequency measuring accuracy: ±1.2%
Resistance measuring accuracy: ±(1.5%+5 digit)
Continuity test: <50Ω
Power supply: battery LR03 AAA 1,5V x2
Standard equipment: calibration certificate; carrying case; test leads ( 2pcs.); user's manual
Conform to the norm: CAT III 600V; EN 61010-1; EN 61326-1
Measuring instrument features: automatic power-off; auto polarity; autoranging; built-in torch; HOLD function; low battery indicator; MIN/MAX function; reinforced enclosure
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Test: diodes
Resistance to: fall from 3m height; shockproof
Illumination: yes
Operating temperature: 5...50°C
Dimensions: 120x65x45mm
Pollution degree: 2

Виробник: HT INSTRUMENTS
Category: Portable digital multimeters
Description: Digital multimeter; LCD; VDC: 0÷690V; VAC: 0÷690V; True RMS
Standard equipment: calibration certificate; case; test leads; test mains cable
Conform to the norm: CAT III 690V; CAT IV 600V; EN 61010-2-030; EN 61010-2-033; EN 61557-7
Measurement: AC current (option); AC voltage; DC voltage; frequency; harmonics; inrush current; RCD tripping time; resistance; short circuit loop impedance
Dimensions: 175x85x55mm
Power supply: battery LR03 AAA 1,5V x4
Battery/ rechargeable battery: battery LR03 AAA 1,5V x4
Kind of display used: LCD
True effective value measurement: True RMS
DC voltage measuring range: 0...690V
AC voltage measuring range: 0...690V
Resistance measuring range: 199.9Ω; 1.999kΩ
Frequency measuring range: 33...99.99Hz; 999.9Hz
Frequency measuring accuracy: ±(5%+10 digit)
DC voltage measuring accuracy: ±(0.5% + 2 digit)
Resistance measuring accuracy: ±(1%+5 digit)
AC voltage measuring accuracy: ±(0.5% + 2 digit)
Measuring instrument features: auto and manual ranging; HOLD function; MIN/MAX function
RCD test: AC, A-type RCDs
Continuity test: acoustic indication; <30Ω
Type of meter: digital multimeter

Виробник: HT INSTRUMENTS
Category: Test Leads - Sets with Accessories
Description: Set of cables and adapters; banana plug 4mm; red,blue,green
Conform to the norm: CAT III 600V
Type of test accessories: set of cables and adapters
Standard equipment: 3 crocodile clips; a earth spike x2; test leads (3m, 10m, 15m)
Test lead configuration: banana plug 4mm
Colour: blue; green; red

Виробник: HT INSTRUMENTS
Category: Test Leads - Sets with Accessories
Description: Set of cables and adapters; probe tip,banana plug 4mm; 1kV; 10A
Test lead configuration: banana plug 4mm; probe tip
Colour: black; green
Conform to the norm: CAT III 1000V; CAT IV 600V
Type of test accessories: set of cables and adapters
Jaw capacity: 35mm
Cable length: 1.5m
Current rating: 10A
Rated voltage: 1kV
Standard equipment: 2 crocodile clips; test lead x2

Виробник: HT INSTRUMENTS
Category: Test Leads - Sets
Description: Test leads; Urated: 1kV; Inom: 10A; Len: 1.5m; black,red; 2pcs.
Type of test accessories: test leads
Test lead configuration: angular banana plug 4mm; probe tip
Colour: black; red
Conform to the norm: CAT III 1000V
Quantity in set/package: 2pcs.
Cable length: 1.5m
Current rating: 10A
Rated voltage: 1kV

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters

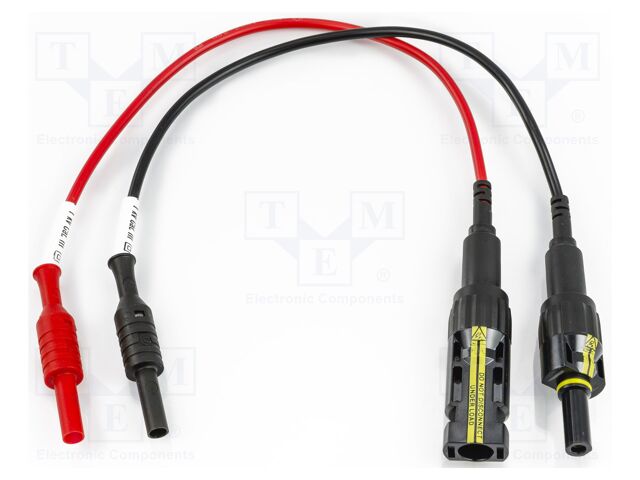

Description: Test acces: test leads; banana plug x2,MC4; 3m; 2pcs.
Type of test accessories: test leads
Cable/adapter structure: banana plug x2; MC4
Quantity in set/package: 2pcs.
Cable length: 3m

Виробник: HT INSTRUMENTS
Category: 4mm Crocodile Clips
Description: Crocodile clip; 36A; 1kV; black,red; 2pcs; 41mm; banana 4mm plug
Rated voltage: 1kV
Colour: black; red
Conform to the norm: CAT III 1000V; CAT IV 600V
Type of test accessories: crocodile clip
Jaw capacity: 41mm
Quantity in set/package: 2pcs.
Current rating: 36A
Cable/adapter structure: banana 4mm plug

Виробник: HT INSTRUMENTS
Category: Test Leads - Sets
Description: Test leads; Urated: 1kV; Inom: 36A; Len: 2m; black,red; 2pcs.
Rated voltage: 1kV
Test lead configuration: banana plug 4mm; both sides
Colour: black; red
Conform to the norm: CAT III 1000V
Type of test accessories: test leads
Cable length: 2m
Quantity in set/package: 2pcs.
Current rating: 36A

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Test acces: adapter; MC4; 2pcs.
Type of test accessories: adapter
Related items: HTI-HV00PVCS; HTI-HV0PVCPS
Cable/adapter structure: MC4
Quantity in set/package: 2pcs.

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Test acces: set of cables and adapters; black,red; 3m
Type of test accessories: set of cables and adapters
Related items: HTI-HV00PVPR
Colour: black; red
Cable/adapter structure: banana 4mm plug; battery clamps; MC4
Cable length: 3m
Standard equipment: adapter x2; test leads ( 2pcs.)

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Test acces: connection cable; 2pcs.
Type of test accessories: connection cable
Quantity in set/package: 2pcs.
Test lead configuration: banana plug 3mm; banana plug 4mm; MC4 connector

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Test acces: test leads; black,green; 25m; 20A; 1kV
Type of test accessories: test leads
Current rating: 20A
Rated voltage: 1kV
Colour: black; green
Conform to the norm: CAT III 1000V; CAT IV 600V
Test lead configuration: banana plug 4mm; both sides
Cable length: 25m

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Test acces: adapter kit; photovoltaics; MC4; 4pcs.
Type of test accessories: adapter kit
Application: photovoltaics
Cable/adapter structure: MC4
Quantity in set/package: 4pcs.

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Test acces: test leads; 0.25m; 2pcs; 1.5kV
Type of test accessories: test leads
Quantity in set/package: 2pcs.
Cable length: 0.25m
Rated voltage: 1.5kV

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Test acces: test leads; black,red; 20m; 2pcs.
Type of test accessories: test leads
Quantity in set/package: 2pcs.
Cable length: 20m
Colour: black; red
Related items: HTI-HV00PVPR

Виробник: HT INSTRUMENTS
Category: Accessories - Others
Description: Adapter phase divider; 16A; angle plug EU
Current rating: 16A
Conform to the norm: EN 61010-1; EN 61010-2-030
Type of test accessories: adapter phase divider
Cable/adapter structure: angle plug EU

Виробник: HT INSTRUMENTS
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; R range: 0÷19.99Ω
Power supply: battery LR6 AA 1,5V x4
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Conform to the norm: CAT III 550V; EN 61557-1
Type of meter: insulation resistance
Kind of display used: LCD
Resistance measuring range: 0...19.99Ω
DC voltage measuring range: 100mV...600V
AC voltage measuring range: 100mV...600V
Body dimensions: 240x100x45mm
DC voltage measuring accuracy: ±(0.5% + 1 digit)
AC voltage measuring accuracy: ±(0.8% + 4 digit)
Insulation resistance measuring accuracy: ±(2% + 5digit)
Resistance measuring accuracy: ±(2%+3 digit)
Test voltage: 250V; 500V; 1kV
Insulation resistance measuring ranges: 0.001...0.25MΩ; 0.251...3.999MΩ; 4...39.99MΩ; 40...399.9MΩ; 400...1000MΩ; 1000...4000MΩ
Standard equipment: 2 crocodile clips; case; test leads ( 2pcs.)
Continuity test: acoustic indication; optical indication; 0Ω...19.99Ω
Measurement: AC voltage; continuity; DC voltage; insulation resistance; resistance

Виробник: HT INSTRUMENTS
Category: Earth Resistance Meter
Description: Meter: grounding resistance; LCD
Type of meter: grounding resistance
Kind of display used: LCD
Earthing resistance measuring range: 19.99Ω; 199.9Ω; 1999Ω; 19.99kΩ; 49.9kΩ
Earthing resistance measuring accuracy: ±(3% + 3 digit)
Body dimensions: 240x100x45mm
Power supply: battery LR6 AA 1,5V x4
Measurement: resistance (2-wire); resistance (3-wire)
Standard equipment: 3 crocodile clips; 3m long test lead (green); 15m long test lead (red); 30m long test lead (blue); a earth spike x2; calibration certificate; case
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Conform to the norm: CAT III 550V; EN 61557-1

Виробник: HT INSTRUMENTS
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; VAC accuracy: ±(2%+2digit)
Type of meter: insulation resistance
Kind of display used: LCD
Measurement: AC voltage; continuity; DC voltage; earthing resistance; frequency; insulation resistance; phase sequence; resistance
Resistance measuring range: 39.99Ω; 399.9Ω; 3999Ω; 39.99kΩ
Insulation resistance measuring accuracy: ±(5% + 2digit)
AC voltage measuring range: 999.9mV; 9.999V; 99.99V; 605V
AC voltage measuring accuracy: ±(2% + 2 digit)
DC voltage measuring range: 999.9mV; 9.999V; 99.99V; 605V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
True effective value measurement: True RMS AC
Frequency measuring range: 30...400Hz
Frequency measuring accuracy: ±(0.5%+2 digit)
Continuity test: acoustic indication; optical indication; 10mΩ...99.9Ω
Test voltage: 500V
Conform to the norm: CAT III 550V; EN 61557-1
Measuring instrument features: HOLD function; MIN/MAX/AVG function
Standard equipment: 2 crocodile clips; calibration certificate; case; test leads ( 2pcs.)
Power supply: battery LR6 AA 1,5V x4
Body dimensions: 240x100x45mm
Insulation resistance measuring ranges: 19.99MΩ; 199.9MΩ; 999MΩ
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Resistance measuring accuracy: ±(1%+5 digit)

Виробник: HT INSTRUMENTS
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; LCD; Earthing R range: 1÷1999Ω; 30÷400Hz
Kind of display used: LCD
True effective value measurement: True RMS
AC voltage measuring range: 999.9mV; 9.999V; 99.99V; 605V
DC voltage measuring range: 999.9mV; 9.999V; 99.99V; 605V
Earthing resistance measuring range: 1...1999Ω
Insulation resistance measuring ranges: 19.99MΩ; 199.9MΩ; 999MΩ
Body dimensions: 240x100x45mm
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring accuracy: ±(2% + 2 digit)
Frequency measuring accuracy: ±(0.5%+2 digit)
Resistance measuring accuracy: ±(1%+5 digit)
Resistance measuring range: 39.99Ω; 399.9Ω; 3999Ω; 39.99kΩ
Insulation resistance measuring accuracy: ±(5% + 2digit)
Frequency measuring range: 30...400Hz
Test voltage: 250V; 500V
Standard equipment: 2 crocodile clips; calibration certificate; case; test leads ( 2pcs.); test mains cable
RCD test: AC, A-type RCDs
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; earthing resistance; frequency; insulation resistance; phase sequence; RCD tripping time; resistance
Continuity test: acoustic indication; optical indication; 10mΩ...99.9Ω
Measuring instrument features: automatic test mode; HOLD function; MIN/MAX/AVG function
Type of meter: appliance meter
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Power supply: battery LR6 AA 1,5V x4
Conform to the norm: CAT III 550V; EN 61557-1

Виробник: HT INSTRUMENTS
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; LCD; Earthing R range: 1÷1999Ω; 30÷400Hz
Type of meter: appliance meter
Kind of display used: LCD
Earthing resistance measuring range: 1...1999Ω
Continuity test: acoustic indication; optical indication; 10mΩ...99.9Ω
RCD test: AC, A-type RCDs
AC voltage measuring range: 999.9mV; 9.999V; 99.99V; 605V
AC voltage measuring accuracy: ±(2% + 2 digit)
DC voltage measuring range: 999.9mV; 9.999V; 99.99V; 605V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
Detection: cable and wire continuity; discontinuities and short circuits in conductors
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; earthing resistance; frequency; insulation resistance; phase sequence; RCD tripping time; resistance
Frequency measuring range: 30...400Hz
Frequency measuring accuracy: ±(0.5%+2 digit)
Insulation resistance measuring ranges: 19.99MΩ; 199.9MΩ; 999MΩ
Insulation resistance measuring accuracy: ±(5% + 2digit)
Resistance measuring range: 39.99Ω; 399.9Ω; 3999Ω; 39.99kΩ
Test voltage: 250V; 500V
True effective value measurement: True RMS
Conform to the norm: CAT III 550V; EN 61557-1
Power supply: battery LR6 AA 1,5V x4
Measuring instrument features: automatic test mode; HOLD function; MIN/MAX/AVG function
Body dimensions: 240x100x45mm
Standard equipment: 2 crocodile clips; calibration certificate; case; HT4003 - current clamp; RJ45 connection cable; test leads ( 2pcs.); test mains cable
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Test: wiring RJ45
Resistance measuring accuracy: ±(1%+5 digit)

Виробник: HT INSTRUMENTS
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; touch screen,colour,LCD TFT; 320x240
Standard equipment: 4 crocodile clips; calibration certificate; hard case; neckstrap; power supply AC 230V; stylus; test adapter HTI-HA0EV100; test leads ( 4pcs.); USB cable
Conform to the norm: CAT IV 300V; EN 61557-1
IP rating: IP40
Measurement: AC current (with current clamps); active power; AC voltage; continuity; DC voltage; earthing resistance; frequency; harmonics; impedance; insulation resistance; leakage current; phase sequence; RCD tripping current; RCD tripping time; short circuit loop impedance; votlage drop
Power supply: rechargeable battery Ni-MH x6
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x6
Interface: USB; WiFi
Kind of display used: colour; LCD TFT; touch screen
Software: HTanalysis App; included
Illumination: yes
Loop impedance measurement: 0...199.9Ω
Earthing resistance measuring range: 10mΩ...50kΩ
Body dimensions: 225x165x75mm
Earthing resistance measuring accuracy: ±(2% + 2 digit)
Loop impedance measuring accuracy: ±(5% + 3 digit)
Test voltage: 50V; 100V; 250V; 500V; 1kV
Weight with battery: 1.2kg
Display resolution: 320x240
Measurement memory: 999
Insulation resistance measuring ranges: 0.01MΩ...2GΩ
RCD test: AC, A, B-type RCDs; general purpose
Continuity test: acoustic indication; optical indication
Type of meter: appliance meter

Виробник: HT INSTRUMENTS
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; touch screen,colour,LCD TFT; 320x240
Standard equipment: 4 crocodile clips; calibration certificate; hard case; neckstrap; power supply AC 230V; stylus; test leads ( 4pcs.); USB cable
Conform to the norm: CAT IV 300V; EN 61557-1
IP rating: IP40
Measurement: AC current (with current clamps); active power; AC voltage; continuity; DC voltage; earthing resistance; frequency; harmonics; impedance; insulation resistance; leakage current; phase sequence; RCD tripping current; RCD tripping time; reactive power; short circuit loop impedance; votlage drop
Power supply: rechargeable battery Ni-MH x6
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x6
Interface: USB; WiFi
Kind of display used: colour; LCD TFT; touch screen
Software: HTanalysis App; included
Illumination: yes
Loop impedance measurement: 0...199.9Ω
Earthing resistance measuring range: 10mΩ...50kΩ
Body dimensions: 225x165x75mm
Earthing resistance measuring accuracy: ±(2% + 2 digit)
Loop impedance measuring accuracy: ±(5% + 3 digit)
Test voltage: 50V; 100V; 250V; 500V; 1kV
Weight with battery: 1.2kg
Display resolution: 320x240
Measurement memory: 999
Insulation resistance measuring ranges: 0.01MΩ...2GΩ
RCD test: AC, A, B-type RCDs; general purpose
Continuity test: acoustic indication; optical indication
Type of meter: appliance meter

Виробник: HT INSTRUMENTS
Category: Portable digital multimeters
Description: Digital multimeter; LCD; VDC: 0÷999.9V; VAC: 0÷999.9V; True RMS AC
Type of meter: digital multimeter
Measurement: AC voltage; DC voltage; frequency; harmonics; inrush current; insulation resistance; phase sequence; resistance
Kind of display used: LCD
DC voltage measuring range: 0...999.9V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 0...999.9V
AC voltage measuring accuracy: ±(0.5% + 2 digit)
True effective value measurement: True RMS AC
Resistance measuring range: 199.9Ω; 1.999kΩ
Frequency measuring range: 32...99.99Hz; 999.9Hz
Frequency measuring accuracy: ±(0.1%+1 digit)
Resistance measuring accuracy: ±(1%+5 digit)
Insulation resistance measuring accuracy: ±(2% + 2digit)
Continuity test: acoustic indication; <30Ω
Dimensions: 175x85x55mm
Standard equipment: 2 crocodile clips; calibration certificate; case; test leads
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-2-030; EN 61010-2-033
Measuring instrument features: auto and manual ranging; HOLD function; MIN/MAX function
Battery/ rechargeable battery: battery LR03 AAA 1,5V x4
Insulation resistance measuring ranges: 10kΩ...9.99MΩ; 10...199.9MΩ; 200...999MΩ; 1000...1999MΩ
Test voltage: 50V; 100V; 250V; 500V; 1kV

Виробник: HT INSTRUMENTS
Category: Power Quality Analyzers
Description: Meter: power quality analyser; touch screen,LCD 3,5"; IN: 9
Measurement: AC current; active power; AC voltage; apparent power; distorting power; energy; flicker; harmonics; inrush current; power factor; reactive power
Standard equipment: calibration certificate; current clamp HTFLEX335 x 4; hard case; microSD 32GB memory card; USB cable
Conform to the norm: EN 61010-1; EN 61010-2-030; EN 61010-2-031; EN 61010-2-032; EN 61010-2-033; EN 61326-1
Power supply: rechargeable battery Ni-MH 1,2V x6
Software: HTAgorà
IP rating: IP40
Kind of display used: LCD 3,5"; touch screen
Measuring instrument features: option of memory card connection SD; up to 3180 simultaneously recordable electrical parameters
Type of meter: power quality analyser
Kind of network: single-phase; three-phase
Dimensions: 235x165x75mm
Number of inputs: 9
Supply voltage: 100...415V AC
Display resolution: 320x240
Interface: RJ45; USB; WiFi

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Meter: appliance meter; VDC accuracy: ±(0.5%+2digit); 3÷1500V
Type of meter: appliance meter
DC voltage measuring accuracy: ±(0.5% + 2 digit)
DC voltage measuring range: 3...1500V
DC current measuring accuracy: ±(1% + 2 digit)
DC current measuring range: 100mA...15A
Insulation resistance measuring accuracy: ±(5% + 5digit)
Insulation resistance measuring ranges: 250Ω; 500Ω; 1kΩ
Measurement memory: 999
Standard equipment: 4 crocodile clips; calibration certificate; carrying case; remote unit for measurement of irradiance; solar irradiance meter HT305; temperature probe; test leads ( 4pcs.)
Conform to the norm: CAT III 300V; IEC 60891; IEC 61010-1; IEC 61010-031; IEC 61326-1
IP rating: IP40
Kind of display used: LCD
Measurement: DC current; DC voltage; insulation resistance PV; irradiance (external probe required); power; temperature (external probe required)
Battery/ rechargeable battery: battery LR6 AA 1,5V x6
Measuring instruments application: photovoltaics
Interface: USB
Power supply: battery LR6 AA 1,5V x6
Dimensions: 235x165x75mm
Display resolution: 128x128
Operating temperature: 0...40°C
Storage temperature: -10...60°C

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Meter: appliance meter; VDC accuracy: ±(1%+2digit); 3÷1500V; IP40
Display resolution: 240x240
Power supply: battery LR6 AA 1,5V x6
Conform to the norm: CAT III 1500V; IEC 61010-1; IEC 61010-2-030; IEC 61010-031; IEC 61326-1
Measurement: DC current; DC voltage; insulation resistance PV
Interface: USB; WiFi
Measuring instrument features: GFL function for fault finding on strings and PV modules; tests on single-facial and bi-facial modules
IP rating: IP40
Kind of display used: LCD
Measuring instruments application: photovoltaics
Operating temperature: -10...50°C
Storage temperature: -20...60°C
Dimensions: 235x165x75mm
DC current measuring range: 100mA...40A
DC current measuring accuracy: ±(1% + 2 digit)
DC voltage measuring accuracy: ±(1% + 2 digit)
DC voltage measuring range: 3...1500V
Insulation resistance measuring accuracy: ±(5% + 5digit)
Insulation resistance measuring ranges: 250Ω; 500Ω; 1kΩ; 1.5kΩ
Measurement memory: 999
Standard equipment: 2 crocodile clips; battery charger; calibration certificate; hard case; neckstrap; test leads ( 2pcs.); USB cable
Type of meter: appliance meter
Battery/ rechargeable battery: battery LR6 AA 1,5V x6

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Meter: appliance meter; VDC accuracy: ±(1%+2digit); 3÷1500V; IP40
Display resolution: 240x240
Power supply: battery LR6 AA 1,5V x6
Conform to the norm: CAT III 1500V; IEC 61010-1; IEC 61010-2-030; IEC 61010-031; IEC 61326-1
Measurement: DC current; DC voltage; insulation resistance PV
Interface: USB; WiFi
Measuring instrument features: GFL function for fault finding on strings and PV modules; tests on single-facial and bi-facial modules
IP rating: IP40
Kind of display used: LCD
Measuring instruments application: photovoltaics
Operating temperature: -10...50°C
Storage temperature: -20...60°C
Dimensions: 235x165x75mm
DC current measuring range: 100mA...40A
DC current measuring accuracy: ±(1% + 2 digit)
DC voltage measuring accuracy: ±(1% + 2 digit)
DC voltage measuring range: 3...1500V
Insulation resistance measuring accuracy: ±(5% + 5digit)
Insulation resistance measuring ranges: 250Ω; 500Ω; 1kΩ; 1.5kΩ
Measurement memory: 999
Standard equipment: 2 crocodile clips; battery charger; calibration certificate; hard case; neckstrap; remote unit for measurement of irradiance; solar irradiance meter HT305; test leads ( 2pcs.); USB cable
Type of meter: appliance meter
Battery/ rechargeable battery: battery LR6 AA 1,5V x6

Виробник: HT INSTRUMENTS
Category: LAN and Telephone Networks Testers
Description: Tester: LAN wiring; LCD; Measured cable l: max.250m; F,RJ11,RJ45
Type of tester: LAN wiring
Kind of display used: LCD
Detection: cable and wire continuity; discontinuities and short circuits in conductors
Kind of connector: F; RJ11; RJ45
Power supply: battery LR03 AAA 1,5V x6
Measuring instrument features: cable length measurement; connection map test: discontinuity, short circuit, reversed pairs, crossed pairs
Test: wiring RJ11; wiring RJ45; wiring type F
Illumination: yes
Dimensions: 156x73x35mm
Measured cable length: max. 250m
Battery/ rechargeable battery: battery LR03 AAA 1,5V x6
Standard equipment: case; RJ45 Patch Cords x2

Виробник: HT INSTRUMENTS
Category: LAN and Telephone Networks Testers
Description: Tester: LAN wiring; LCD; Measured cable l: max.200m; RJ45; IP40
Type of tester: LAN wiring
Kind of display used: LCD
Detection: cable and wire continuity; discontinuities and short circuits in conductors
Kind of connector: RJ45
Power supply: battery 6F22 9V x1
Measuring instrument features: cable length measurement; connection map test: discontinuity, short circuit, reversed pairs, crossed pairs
Test: wiring RJ45
IP rating: IP40
Illumination: yes
Dimensions: 190x65x45mm
Measured cable length: max. 200m
Battery/ rechargeable battery: battery 6F22 9V x1
Standard equipment: case; remote unit x2; RJ45 Patch Cords x3

Виробник: HT INSTRUMENTS
Category: PV and EVSE Testers and Meters
Description: Measuring kit: photovoltaic system analyzer; 3÷1500V; 100mA÷15A
Type of measuring kit: photovoltaic system analyzer
DC voltage measuring accuracy: ±(0.5% + 2 digit)
DC voltage measuring range: 3...1500V
DC current measuring accuracy: ±(1% + 2 digit)
DC current measuring range: 100mA...15A
Measurement memory: 999
Standard equipment: 4 crocodile clips; battery charger; calibration certificate; hard case; HTI-HP004004 - current clamp; neckstrap; remote unit for measurement of irradiance; solar irradiance meter HT305; test leads ( 2pcs.); USB cable
Conform to the norm: CAT III 300V; IEC 60891; IEC 61010-1; IEC 61010-031; IEC 61326-1
IP rating: IP40
Kind of display used: LCD
Measurement: DC current; DC voltage; I-V curve
Battery/ rechargeable battery: battery LR6 AA 1,5V x6
Measuring instruments application: photovoltaics
Interface: USB; WiFi
Power supply: battery LR6 AA 1,5V x6
Dimensions: 235x165x75mm
Software: HTanalysis App
Display resolution: 128x128
Operating temperature: 0...40°C
Storage temperature: -10...60°C

Виробник: HT INSTRUMENTS
Category: Bags & Soft Cases
Description: Strap for meters; for meter
Type of test accessories: Strap for meters
Related items: HTI-HA500000
Application: for meter

Виробник: HT INSTRUMENTS
Category: Test Leads - Sets with Accessories
Description: Set of cables and adapters; 1kV; 10A; 2m; black,blue,green
Type of test accessories: set of cables and adapters
Colour: black; blue; green
Conform to the norm: CAT III 1000V; CAT IV 600V
Current rating: 10A
Jaw capacity: 40mm
Cable length: 2m
Rated voltage: 1kV
Standard equipment: 3 crocodile clips; test lead x3; test probe x3

Виробник: HT INSTRUMENTS
Category: Test Leads - Sets with Accessories
Description: Set of cables and adapters; 1kV; 10A; 2m; black,red,blue,green
Type of test accessories: set of cables and adapters
Colour: black; blue; green; red
Conform to the norm: CAT III 1000V; CAT IV 600V
Current rating: 10A
Jaw capacity: 40mm
Cable length: 2m
Rated voltage: 1kV
Standard equipment: 4 crocodile clips; test lead x4; test probe x3
