Продукція > MAGNETICS, A DIVISION OF SPANG & CO. > Всі товари виробника MAGNETICS, A DIVISION OF SPANG & CO. (1313) > Сторінка 16 з 22
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C058438A2 | Magnetics, a division of Spang & Co. |
 Description: FERRITE CORE TOROID 281NH HI FLXTolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.875" (47.63mm) Height: 0.745" (18.92mm) Core Type: Toroid Inductance Factor (Al): 281 nH Initial Permeability (µi): 125 Finish: Coated Gap: Ungapped Part Status: Active Effective Length (le) mm: 107.0 Effective Area (Ae) mm²: 199.0 Effective Magnetic Volume (Ve) mm³: 21300.0 |
на замовлення 672 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
C058439A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 135NH Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.875" (47.63mm) Height: 0.710" (18.03mm) Core Type: Toroid Inductance Factor (Al): 135 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Part Status: Active Effective Length (le) mm: 107.0 Effective Area (Ae) mm²: 199.0 Effective Magnetic Volume (Ve) mm³: 21300.0 |
на замовлення 630 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
C058548A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 127NH HI FLX Packaging: Bulk Tolerance: ±8% Material: High Flux Diameter: 1.291" (32.80mm) Height: 0.420" (10.67mm) Core Type: Toroid Inductance Factor (Al): 127 nH Initial Permeability (µi): 125 Finish: Coated Gap: Ungapped Effective Length (le) mm: 81.4 Effective Area (Ae) mm²: 65.6 Effective Magnetic Volume (Ve) mm³: 5340.0 |
на замовлення 826 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| C058548A2HT19 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 125 PERM KHAKI 548 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.325" (33.66mm) Height: 0.748" (19.00mm) Core Type: Toroid Inductance Factor (Al): 214 nH Initial Permeability (µi): 125 Finish: Coated Gap: Ungapped Effective Length (le) mm: 81.4 Effective Area (Ae) mm²: 110.5 Effective Magnetic Volume (Ve) mm³: 9000.0 |
товару немає в наявності |
Мінімальне замовлення: 175 шт В кошику од. на суму грн. | |||||||||||||||||||
| C058548A5 | Magnetics, a division of Spang & Co. |
Description: OBSOLETE HIGH FLUX 125 PERM KHAK Effective Area (Ae) mm²: 65.6 Effective Length (le) mm: 81.4 Gap: Ungapped Finish: Coated Initial Permeability (µi): 125 Inductance Factor (Al): 127 nH Core Type: Toroid Height: 0.450" (11.45mm) Diameter: 1.325" (33.66mm) Material: High Flux Effective Magnetic Volume (Ve) mm³: 5340 Tolerance: ±8% Packaging: Bulk |
товару немає в наявності |
Мінімальне замовлення: 500 шт В кошику од. на суму грн. | |||||||||||||||||||
| C058552A2 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 090 PERM KHAKI 548 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.325" (33.66mm) Height: 0.450" (11.45mm) Core Type: Toroid Inductance Factor (Al): 91 nH Initial Permeability (µi): 90 Finish: Coated Gap: Ungapped Effective Length (le) mm: 81.4 Effective Area (Ae) mm²: 65.6 Effective Magnetic Volume (Ve) mm³: 5340 |
товару немає в наявності |
Мінімальне замовлення: 250 шт В кошику од. на суму грн. | |||||||||||||||||||
| C058583A2 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 160 PERM KHAKI 585 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.385" (35.18mm) Height: 0.384" (9.78mm) Core Type: Toroid Inductance Factor (Al): 101 nH Initial Permeability (µi): 160 Finish: Coated Gap: Ungapped Effective Length (le) mm: 89.5 Effective Area (Ae) mm²: 46.4 Effective Magnetic Volume (Ve) mm³: 4150 |
товару немає в наявності |
Мінімальне замовлення: 600 шт В кошику од. на суму грн. | |||||||||||||||||||
| C058585A2 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 125 PERM KHAKI 585 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.385" (35.18mm) Height: 0.384" (9.78mm) Core Type: Toroid Inductance Factor (Al): 79 nH Initial Permeability (µi): 125 Finish: Coated Gap: Ungapped Effective Length (le) mm: 89.5 Effective Area (Ae) mm²: 46.4 Effective Magnetic Volume (Ve) mm³: 4150 |
товару немає в наявності |
Мінімальне замовлення: 600 шт В кошику од. на суму грн. | |||||||||||||||||||
|
|
C058586A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 38NH HIGH FL Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.385" (35.18mm) Height: 0.350" (8.90mm) Core Type: Toroid Inductance Factor (Al): 38 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Effective Length (le) mm: 89.5 Effective Area (Ae) mm²: 46.4 Effective Magnetic Volume (Ve) mm³: 4150 |
на замовлення 295 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
C058848A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 32NH HIGH FL Inductance Factor (Al): 32 nH Core Type: Toroid Height: 0.280" (7.11mm) Diameter: 0.830" (21.08mm) Material: High Flux Tolerance: ±8% Packaging: Bulk Effective Magnetic Volume (Ve) mm³: 1120.0 Effective Area (Ae) mm²: 22.1 Effective Length (le) mm: 50.9 Gap: Ungapped Finish: Coated Initial Permeability (µi): 60 |
на замовлення 713 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| C058848A2HT14 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 060 PERM KHAKI 206 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 0.830" (21.08mm) Height: 0.551" (14.00mm) Core Type: Toroid Inductance Factor (Al): 64 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Effective Length (le) mm: 50.9 Effective Area (Ae) mm²: 44.2 Effective Magnetic Volume (Ve) mm³: 2250.0 |
товару немає в наявності |
Мінімальне замовлення: 800 шт В кошику од. на суму грн. | |||||||||||||||||||
|
|
C058867A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 68NH HIGH FL Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 3.063" (77.80mm) Height: 0.500" (12.70mm) Core Type: Toroid Inductance Factor (Al): 68 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Effective Length (le) mm: 196.0 Effective Area (Ae) mm²: 176.0 Effective Magnetic Volume (Ve) mm³: 34500.0 |
на замовлення 40 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
C058894A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 75NH HIGH FL Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.090" (27.69mm) Height: 0.470" (11.94mm) Core Type: Toroid Inductance Factor (Al): 75 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Effective Length (le) mm: 63.5 Effective Area (Ae) mm²: 65.4 Effective Magnetic Volume (Ve) mm³: 4150.0 |
на замовлення 466 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| C058894A2HT15 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 060 PERM KHAKI 930 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.090" (27.69mm) Height: 0.591" (15.00mm) Core Type: Toroid Inductance Factor (Al): 94 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Effective Length (le) mm: 63.5 Effective Area (Ae) mm²: 82.1 Effective Magnetic Volume (Ve) mm³: 5210 |
товару немає в наявності |
Мінімальне замовлення: 360 шт В кошику од. на суму грн. | |||||||||||||||||||
|
|
C058894A2HT19 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 120NH HI FLX Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.090" (27.69mm) Height: 0.748" (19.00mm) Core Type: Toroid Inductance Factor (Al): 120 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Part Status: Active Effective Length (le) mm: 63.5 Effective Area (Ae) mm²: 105.0 Effective Magnetic Volume (Ve) mm³: 6670.0 |
на замовлення 109 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| C058894A2HT34 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 060 PERM KHAKI 930 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.090" (27.69mm) Height: 1.339" (34.00mm) Core Type: Toroid Inductance Factor (Al): 225 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Effective Length (le) mm: 63.5 Effective Area (Ae) mm²: 196 Effective Magnetic Volume (Ve) mm³: 12400 |
товару немає в наявності |
Мінімальне замовлення: 160 шт В кошику од. на суму грн. | |||||||||||||||||||
|
|
C058906A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 178NH HI FLX Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 3.108" (78.94mm) Height: 0.670" (17.02mm) Core Type: Toroid Inductance Factor (Al): 178 nH Initial Permeability (µi): 125 Finish: Coated Gap: Ungapped Effective Length (le) mm: 196.0 Effective Area (Ae) mm²: 221.0 Effective Magnetic Volume (Ve) mm³: 43400.0 |
на замовлення 27 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| C058907A2 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 060 PERM KHAKI 906 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 3.108" (78.94mm) Height: 0.669" (17.00mm) Core Type: Toroid Inductance Factor (Al): 85 nH Initial Permeability (µi): 60 Finish: Coated Gap: Ungapped Effective Length (le) mm: 196.0 Effective Area (Ae) mm²: 221.0 Effective Magnetic Volume (Ve) mm³: 43400.0 |
товару немає в наявності |
Мінімальне замовлення: 40 шт В кошику од. на суму грн. | |||||||||||||||||||
|
|
C058928A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 201NH HI FLX Effective Magnetic Volume (Ve) mm³: 4150.0 Effective Area (Ae) mm²: 65.4 Effective Length (le) mm: 63.5 Part Status: Active Gap: Ungapped Finish: Coated Initial Permeability (µi): 160 Inductance Factor (Al): 201 nH Core Type: Toroid Height: 0.440" (11.18mm) Diameter: 1.060" (26.92mm) Material: High Flux Tolerance: ±8% Packaging: Bulk |
на замовлення 315 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
C058930A2 | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE TOROID 157NH Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.060" (26.92mm) Height: 0.440" (11.18mm) Core Type: Toroid Inductance Factor (Al): 157 nH Initial Permeability (µi): 125 Finish: Coated Gap: Ungapped Part Status: Active Effective Length (le) mm: 63.5 Effective Area (Ae) mm²: 65.4 Effective Magnetic Volume (Ve) mm³: 4150.0 |
на замовлення 305 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| C058930A2HT19 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 125 PERM KHAKI 930 SIZ Tolerance: ±8% Packaging: Bulk Material: High Flux Diameter: 1.090" (27.69mm) Height: 0.748" (19.00mm) Core Type: Toroid Inductance Factor (Al): 253 nH Initial Permeability (µi): 125 Finish: Coated Gap: Ungapped Effective Length (le) mm: 63.5 Effective Area (Ae) mm²: 105.0 Effective Magnetic Volume (Ve) mm³: 6670.0 |
товару немає в наявності |
Мінімальне замовлення: 280 шт В кошику од. на суму грн. | |||||||||||||||||||
| CAP0102B1 | Magnetics, a division of Spang & Co. |
Description: CAP (FOR 00K102TC SEG TOROID) Packaging: Bulk |
товару немає в наявності |
Мінімальне замовлення: 100 шт В кошику од. на суму грн. | |||||||||||||||||||
| CL41434EC | Magnetics, a division of Spang & Co. |
Description: PE CS CORE Tolerance: ±25% Packaging: Bulk Material: L Length: 0.551" (14.00mm) Width: 0.197" (5.00mm) Height: 0.138" (3.50mm) Core Type: Planar E/I Inductance Factor (Al): 600 nH Initial Permeability (µi): 900 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 20.1 Effective Area (Ae) mm²: 12.8 Minimum Core Cross Section (Amin) mm²: 11.4 Effective Magnetic Volume (Ve) mm³: 304 |
товару немає в наявності |
Мінімальне замовлення: 4900 шт В кошику од. на суму грн. | |||||||||||||||||||
| CL41434IC | Magnetics, a division of Spang & Co. |
Description: PI CS CORE Tolerance: ±25% Packaging: Bulk Material: L Length: 0.551" (14.00mm) Width: 0.197" (5.00mm) Height: 0.071" (1.80mm) Core Type: Planar E/I Inductance Factor (Al): 780 nH Initial Permeability (µi): 900 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 16.4 Effective Area (Ae) mm²: 14.2 Minimum Core Cross Section (Amin) mm²: 11.4 Effective Magnetic Volume (Ve) mm³: 230 |
товару немає в наявності |
Мінімальне замовлення: 4410 шт В кошику од. на суму грн. | |||||||||||||||||||
 |
CMC016010006H | Magnetics, a division of Spang & Co. |
Description: NANOCRYSTALLINE CORE TOROID 43UH Effective Area (Ae) mm²: 15.0 Effective Length (le) mm: 41.0 Part Status: Active Gap: Ungapped Finish: Polyester Initial Permeability (µi): 80000 Inductance Factor (Al): 43 µH Core Type: Toroid Height: 0.236" (6.00mm) Diameter: 0.630" (16.00mm) Material: Nanocrystalline Tolerance: ±30% Packaging: Bulk |
на замовлення 752 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
CMC020012008H | Magnetics, a division of Spang & Co. |
Description: NANOCRYSTAL CORE TOROID 61.5UH Tolerance: ±30% Packaging: Bulk Material: Nanocrystalline Diameter: 0.787" (20.00mm) Height: 0.315" (8.00mm) Core Type: Toroid Inductance Factor (Al): 61.5 µH Initial Permeability (µi): 80000 Finish: Polyester Gap: Ungapped Effective Length (le) mm: 50.2 Effective Area (Ae) mm²: 26.9 |
на замовлення 204 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
CMC025016010H | Magnetics, a division of Spang & Co. |
Description: NANOCRYSTAL CORE TOROID 65.5UH Tolerance: ±30% Packaging: Bulk Material: Nanocrystalline Diameter: 0.984" (25.00mm) Height: 0.394" (10.00mm) Core Type: Toroid Inductance Factor (Al): 65.5 µH Initial Permeability (µi): 80000 Finish: Polyester Gap: Ungapped Effective Length (le) mm: 64.3 Effective Area (Ae) mm²: 37.0 |
на замовлення 201 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
CMC030020010H | Magnetics, a division of Spang & Co. |
Description: NANOCRYSTAL CORE TOROID 59.3UH Tolerance: ±30% Packaging: Bulk Material: Nanocrystalline Diameter: 1.181" (30.00mm) Height: 0.394" (10.00mm) Core Type: Toroid Inductance Factor (Al): 59.3 µH Initial Permeability (µi): 80000 Finish: Polyester Gap: Ungapped Effective Length (le) mm: 78.5 Effective Area (Ae) mm²: 41.0 |
на замовлення 191 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
|
CMC030020012H | Magnetics, a division of Spang & Co. |
Description: NANOCRYSTALLINE CORE TOROID 55UH Tolerance: ±30% Packaging: Bulk Material: Nanocrystalline Diameter: 1.181" (30.00mm) Height: 0.472" (12.00mm) Core Type: Toroid Inductance Factor (Al): 55 µH Initial Permeability (µi): 80000 Finish: Polyester Gap: Ungapped Effective Length (le) mm: 79 Effective Area (Ae) mm²: 49 |
на замовлення 90 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
 |
CMC030020015H | Magnetics, a division of Spang & Co. |
Description: NANOCRYSTALLINE CORE TOROID 88UH Core Type: Toroid Height: 0.591" (15.00mm) Diameter: 1.181" (30.00mm) Material: Nanocrystalline Tolerance: ±30% Packaging: Bulk Effective Area (Ae) mm²: 63.0 Effective Length (le) mm: 79.0 Gap: Ungapped Finish: Polyester Initial Permeability (µi): 80000 Inductance Factor (Al): 88 µH |
на замовлення 128 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
 |
CMC040025015H | Magnetics, a division of Spang & Co. |
Description: NANOCRYSTAL CORE TOROID 101UH Tolerance: ±30% Packaging: Bulk Material: Nanocrystalline Diameter: 1.575" (40.00mm) Height: 0.591" (15.00mm) Core Type: Toroid Inductance Factor (Al): 101 µH Initial Permeability (µi): 80000 Finish: Polyester Gap: Ungapped Effective Length (le) mm: 102.0 Effective Area (Ae) mm²: 92.0 |
на замовлення 574 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
 |
CMC040032015H | Magnetics, a division of Spang & Co. |
Description: NANOCRYSTAL CORE TOROID 47.2UH Tolerance: ±30% Packaging: Bulk Material: Nanocrystalline Diameter: 1.575" (40.00mm) Height: 0.591" (15.00mm) Core Type: Toroid Inductance Factor (Al): 47.2 µH Initial Permeability (µi): 80000 Finish: Polyester Gap: Ungapped Effective Length (le) mm: 113.0 Effective Area (Ae) mm²: 50.0 |
на замовлення 418 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| CMF045030015H | Magnetics, a division of Spang & Co. |
Description: CMF045030015H Tolerance: ±30% Packaging: Bulk Material: Nanocrystalline Diameter: 1.772" (45.00mm) Height: 0.591" (15.00mm) Core Type: Toroid Inductance Factor (Al): 78 µH Initial Permeability (µi): 80000 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 118.0 Effective Area (Ae) mm²: 92.0 |
товару немає в наявності |
Мінімальне замовлення: 120 шт В кошику од. на суму грн. | |||||||||||||||||||
| CMF100080020H | Magnetics, a division of Spang & Co. |
Description: CMF100080020H Effective Area (Ae) mm²: 167.0 Effective Length (le) mm: 282.0 Gap: Ungapped Finish: Uncoated Initial Permeability (µi): 80000 Inductance Factor (Al): 57 µH Core Type: Toroid Height: 0.787" (20.00mm) Diameter: 3.937" (100.00mm) Material: Nanocrystalline Tolerance: ±30% Packaging: Bulk |
товару немає в наявності |
Мінімальне замовлення: 18 шт В кошику од. на суму грн. | |||||||||||||||||||
| CMP046036010H | Magnetics, a division of Spang & Co. |
Description: CMP046036010H Packaging: Bulk |
товару немає в наявності |
Мінімальне замовлення: 96 шт В кошику од. на суму грн. | |||||||||||||||||||
| CP42014EC | Magnetics, a division of Spang & Co. |
Description: ER CORE Packaging: Bulk Material: P Length: 0.787" (20.00mm) Width: 0.551" (14.00mm) Height: 0.268" (6.80mm) Core Type: ER Inductance Factor (Al): 4.026 µH Initial Permeability (µi): 2500 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 33.2 Effective Area (Ae) mm²: 59.0 Effective Magnetic Volume (Ve) mm³: 55.0 |
товару немає в наявності |
Мінімальне замовлення: 2016 шт В кошику од. на суму грн. | |||||||||||||||||||
| CP43208EC | Magnetics, a division of Spang & Co. |
Description: E-CORE WITH CLIP SLOTS Packaging: Bulk Material: P Length: 1.250" (31.75mm) Width: 0.800" (20.32mm) Height: 0.250" (6.35mm) Core Type: Planar E Inductance Factor (Al): 6.918 µH Initial Permeability (µi): 2500 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 41.4 Effective Area (Ae) mm²: 130.0 Minimum Core Cross Section (Amin) mm²: 130.0 Effective Magnetic Volume (Ve) mm³: 5380.0 |
товару немає в наявності |
Мінімальне замовлення: 1920 шт В кошику од. на суму грн. | |||||||||||||||||||
| CP43208IC | Magnetics, a division of Spang & Co. |
Description: I-CORE WITH CLIP SLOTS Packaging: Bulk Material: P Length: 1.250" (31.75mm) Width: 0.800" (20.32mm) Height: 0.125" (3.18mm) Core Type: Planar E/I Inductance Factor (Al): 7.745 µH Initial Permeability (µi): 2500 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 35.1 Effective Area (Ae) mm²: 130.0 Minimum Core Cross Section (Amin) mm²: 130.0 Effective Magnetic Volume (Ve) mm³: 4560.0 |
товару немає в наявності |
Мінімальне замовлення: 1920 шт В кошику од. на суму грн. | |||||||||||||||||||
| CR41434EC | Magnetics, a division of Spang & Co. |
Description: E-CORE WITH CLIP SLOTS Packaging: Bulk Material: R Length: 0.551" (14.00mm) Width: 0.197" (5.00mm) Height: 0.138" (3.50mm) Core Type: Planar E Inductance Factor (Al): 1.327 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 20.7 Effective Area (Ae) mm²: 14.66 Minimum Core Cross Section (Amin) mm²: 14.66 Effective Magnetic Volume (Ve) mm³: 304.0 |
на замовлення 11730 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||||
| CR41434IC | Magnetics, a division of Spang & Co. |
Description: I-CORE WITH CLIP SLOTS Packaging: Bulk Material: R Length: 0.551" (14.00mm) Width: 0.197" (5.00mm) Height: 0.071" (1.80mm) Core Type: Planar E/I Inductance Factor (Al): 1.504 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 16.4 Effective Area (Ae) mm²: 14.2 Minimum Core Cross Section (Amin) mm²: 11.4 Effective Magnetic Volume (Ve) mm³: 230.0 |
товару немає в наявності |
Мінімальне замовлення: 5880 шт В кошику од. на суму грн. | |||||||||||||||||||
| CR41805EC | Magnetics, a division of Spang & Co. |
Description: E-CORE WITH CLIP SLOTS Packaging: Bulk Material: R Length: 0.709" (18.00mm) Width: 0.394" (10.00mm) Height: 0.157" (4.00mm) Core Type: Planar E Inductance Factor (Al): 3.244 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 24.2 Effective Area (Ae) mm²: 40.1 Minimum Core Cross Section (Amin) mm²: 39.9 Effective Magnetic Volume (Ve) mm³: 972.0 |
товару немає в наявності |
Мінімальне замовлення: 3840 шт В кошику од. на суму грн. | |||||||||||||||||||
| CR41805IC | Magnetics, a division of Spang & Co. |
Description: I-CORE WITH CLIP SLOTS Packaging: Bulk Material: R Length: 0.709" (18.00mm) Width: 0.394" (10.00mm) Height: 0.094" (2.40mm) Core Type: I Inductance Factor (Al): 3.606 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 20.3 Effective Area (Ae) mm²: 39.5 Minimum Core Cross Section (Amin) mm²: 35.9 Effective Magnetic Volume (Ve) mm³: 830.0 |
товару немає в наявності |
Мінімальне замовлення: 3840 шт В кошику од. на суму грн. | |||||||||||||||||||
| CR42014EC | Magnetics, a division of Spang & Co. |
Description: ER CORE Packaging: Bulk Material: R Length: 0.787" (20.00mm) Width: 0.551" (14.00mm) Height: 0.248" (6.30mm) Core Type: ER Inductance Factor (Al): 3.788 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 33.2 Effective Area (Ae) mm²: 59.0 Minimum Core Cross Section (Amin) mm²: 55.0 Effective Magnetic Volume (Ve) mm³: 1960.0 |
товару немає в наявності |
Мінімальне замовлення: 2016 шт В кошику од. на суму грн. | |||||||||||||||||||
| CR42014IC | Magnetics, a division of Spang & Co. |
Description: IC CORE Packaging: Bulk Material: R Length: 0.787" (20.00mm) Width: 0.551" (14.00mm) Height: 0.091" (2.30mm) Core Type: Planar E/I Inductance Factor (Al): 4.5 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 25.1 Effective Area (Ae) mm²: 59.8 Minimum Core Cross Section (Amin) mm²: 55.0 Effective Magnetic Volume (Ve) mm³: 1500.0 |
товару немає в наявності |
Мінімальне замовлення: 2016 шт В кошику од. на суму грн. | |||||||||||||||||||
 |
CR42216EC | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE E 5.066UH Effective Magnetic Volume (Ve) mm³: 2451.0 Effective Area (Ae) mm²: 76.0 Effective Length (le) mm: 32.3 Part Status: Active Gap: Ungapped Finish: Uncoated Initial Permeability (µi): 2300 Inductance Factor (Al): 5.066 µH Core Type: E Height: 0.224" (5.70mm) Width: 0.622" (15.80mm) Length: 0.858" (21.80mm) Packaging: Bulk |
на замовлення 9151 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
 |
CR42216IC | Magnetics, a division of Spang & Co. |
Description: FERRITE CORE I 5.956UH Effective Magnetic Volume (Ve) mm³: 2100.0 Effective Area (Ae) mm²: 80.4 Effective Length (le) mm: 26.1 Part Status: Active Gap: Ungapped Finish: Uncoated Initial Permeability (µi): 2300 Inductance Factor (Al): 5.956 µH Core Type: I Height: 0.114" (2.90mm) Width: 0.622" (15.80mm) Length: 0.858" (21.80mm) Packaging: Bulk |
на замовлення 12508 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| CR43208EC | Magnetics, a division of Spang & Co. |
Description: E-CORE WITH CLIP SLOTS Effective Magnetic Volume (Ve) mm³: 5380.0 Minimum Core Cross Section (Amin) mm²: 130.0 Effective Area (Ae) mm²: 130.0 Effective Length (le) mm: 41.4 Gap: Ungapped Finish: Uncoated Initial Permeability (µi): 2300 Inductance Factor (Al): 6.521 µH Core Type: Planar E Height: 0.250" (6.35mm) Width: 0.800" (20.32mm) Length: 1.250" (31.75mm) Material: R Packaging: Bulk |
товару немає в наявності |
Мінімальне замовлення: 1536 шт В кошику од. на суму грн. | |||||||||||||||||||
| CR43208IC | Magnetics, a division of Spang & Co. |
Description: I-CORE WITH CLIP SLOTS Effective Magnetic Volume (Ve) mm³: 4560.0 Minimum Core Cross Section (Amin) mm²: 130.0 Effective Area (Ae) mm²: 130.0 Effective Length (le) mm: 35.1 Gap: Ungapped Finish: Uncoated Initial Permeability (µi): 2300 Inductance Factor (Al): 7.321 µH Core Type: I Height: 0.125" (3.18mm) Width: 0.800" (20.32mm) Length: 1.250" (31.75mm) Material: R Packaging: Bulk |
товару немає в наявності |
Мінімальне замовлення: 1536 шт В кошику од. на суму грн. | |||||||||||||||||||
| CR45810EC | Magnetics, a division of Spang & Co. |
Description: CLIP SLOT E-CORE Packaging: Bulk Material: R Length: 2.300" (58.42mm) Width: 1.500" (38.10mm) Height: 0.415" (10.54mm) Core Type: Planar E Inductance Factor (Al): 8.498 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 80.6 Effective Area (Ae) mm²: 308.0 Minimum Core Cross Section (Amin) mm²: 308.0 Effective Magnetic Volume (Ve) mm³: 24600.0 |
товару немає в наявності |
Мінімальне замовлення: 480 шт В кошику од. на суму грн. | |||||||||||||||||||
| CR45810IC | Magnetics, a division of Spang & Co. |
Description: CLIP SLOT I-CORE Packaging: Bulk Material: R Length: 2.300" (58.42mm) Width: 1.500" (38.10mm) Height: 0.160" (4.06mm) Core Type: Planar E/I Inductance Factor (Al): 9.821 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 68.3 Effective Area (Ae) mm²: 305.0 Minimum Core Cross Section (Amin) mm²: 281.0 Effective Magnetic Volume (Ve) mm³: 20829.0 |
товару немає в наявності |
Мінімальне замовлення: 480 шт В кошику од. на суму грн. | |||||||||||||||||||
 |

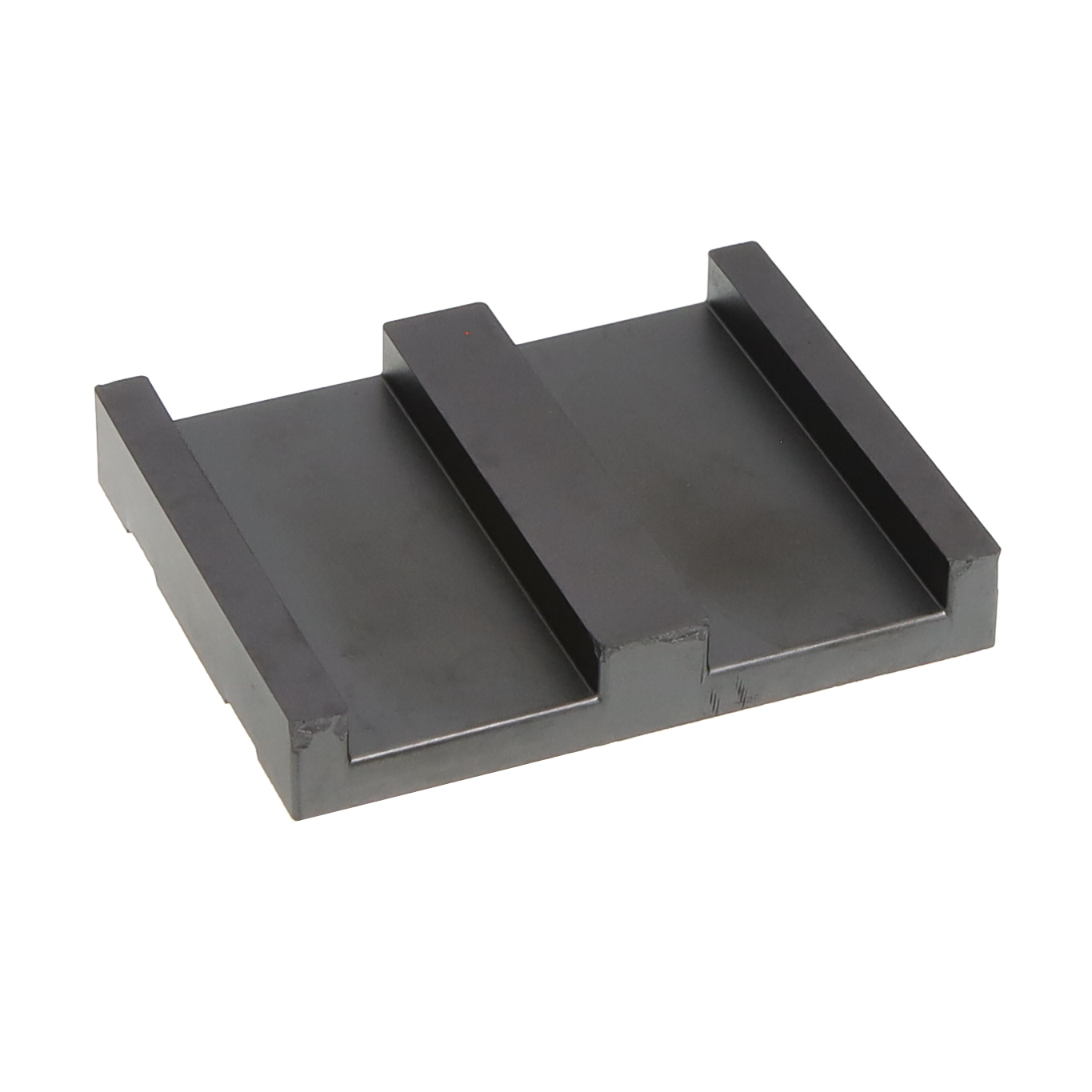

CR46410EC | Magnetics, a division of Spang & Co. |
Description: E-CORE WITH CLIP SLOTS Packaging: Bulk Material: R Length: 2.520" (64.00mm) Width: 2.000" (50.80mm) Height: 0.402" (10.20mm) Core Type: Planar E Inductance Factor (Al): 14.618 µH Initial Permeability (µi): 2300 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 80.2 Effective Area (Ae) mm²: 516.0 Minimum Core Cross Section (Amin) mm²: 516.0 Effective Magnetic Volume (Ve) mm³: 41400.0 |
на замовлення 249 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
| DF42311A315 | Magnetics, a division of Spang & Co. |
Description: GAPPED DOUBLE SLAB POT CORE Packaging: Bulk Material: F Length: 0.900" (22.86mm) Width: 0.600" (15.25mm) Height: 0.436" (11.08mm) Core Type: EQ Inductance Factor (Al): 315 nH Initial Permeability (µi): 3000 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 26.8 Effective Area (Ae) mm²: 51.2 Effective Magnetic Volume (Ve) mm³: 1370.0 |
товару немає в наявності |
Мінімальне замовлення: 576 шт В кошику од. на суму грн. | |||||||||||||||||||
| DF42311UG | Magnetics, a division of Spang & Co. |
Description: DOUBLE SLAB SCP POT CORE Tolerance: ±25% Packaging: Bulk Material: F Length: 0.900" (22.86mm) Width: 0.600" (15.25mm) Height: 0.436" (11.08mm) Core Type: EQ Inductance Factor (Al): 4.46 µH Initial Permeability (µi): 3000 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 26.8 Effective Area (Ae) mm²: 51.2 Minimum Core Cross Section (Amin) mm²: 37.8 Effective Magnetic Volume (Ve) mm³: 1370.0 |
товару немає в наявності |
Мінімальне замовлення: 1152 шт В кошику од. на суму грн. | |||||||||||||||||||
| DF42318UG | Magnetics, a division of Spang & Co. |
Description: DOUBLE SLAB SCP Tolerance: ±25% Packaging: Bulk Material: F Length: 0.900" (22.86mm) Width: 0.600" (15.25mm) Height: 0.709" (18.00mm) Core Type: EQ Inductance Factor (Al): 3.8 µH Initial Permeability (µi): 3000 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 39.9 Effective Area (Ae) mm²: 58.0 Minimum Core Cross Section (Amin) mm²: 40.7 Effective Magnetic Volume (Ve) mm³: 2310.0 |
товару немає в наявності |
Мінімальне замовлення: 960 шт В кошику од. на суму грн. | |||||||||||||||||||
| DP42318UG | Magnetics, a division of Spang & Co. |
Description: DOUBLE SLAB SCP Packaging: Bulk Material: P Length: 0.900" (22.86mm) Width: 0.600" (15.25mm) Height: 0.354" (9.00mm) Core Type: DS Inductance Factor (Al): 3.16 µH Initial Permeability (µi): 2500 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 39.9 Effective Area (Ae) mm²: 58.0 Minimum Core Cross Section (Amin) mm²: 40.7 Effective Magnetic Volume (Ve) mm³: 2310.0 |
товару немає в наявності |
Мінімальне замовлення: 864 шт В кошику од. на суму грн. | |||||||||||||||||||
| DP43622UG | Magnetics, a division of Spang & Co. |
Description: DOUBLE SLAB SCP Packaging: Bulk Material: P Length: 1.402" (35.61mm) Width: 0.939" (23.85mm) Height: 0.427" (10.85mm) Core Type: DS Inductance Factor (Al): 5.827 µH Initial Permeability (µi): 2500 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 56.9 Effective Area (Ae) mm²: 162.0 Minimum Core Cross Section (Amin) mm²: 140.0 Effective Magnetic Volume (Ve) mm³: 9250.0 |
товару немає в наявності |
Мінімальне замовлення: 216 шт В кошику од. на суму грн. | |||||||||||||||||||
| DP44229A250 | Magnetics, a division of Spang & Co. |
Description: GAPPED DOUBLE SLAB POT CORE Packaging: Bulk Material: P Length: 1.669" (42.40mm) Width: 1.118" (28.40mm) Height: 1.165" (29.60mm) Core Type: EQ Inductance Factor (Al): 250 nH Initial Permeability (µi): 2500 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 76 Effective Area (Ae) mm²: 232 Effective Magnetic Volume (Ve) mm³: 17600 |
товару немає в наявності |
Мінімальне замовлення: 100 шт В кошику од. на суму грн. | |||||||||||||||||||
| DP44229UG | Magnetics, a division of Spang & Co. |
Description: DOUBLE SLAB SCP Packaging: Bulk Material: P Length: 1.669" (42.40mm) Width: 1.118" (28.40mm) Height: 1.165" (29.60mm) Core Type: EQ Inductance Factor (Al): 7 µH Initial Permeability (µi): 2500 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 76 Effective Area (Ae) mm²: 232 Minimum Core Cross Section (Amin) mm²: 211 Effective Magnetic Volume (Ve) mm³: 17600 |
товару немає в наявності |
Мінімальне замовлення: 150 шт В кошику од. на суму грн. | |||||||||||||||||||
| DW42616UG | Magnetics, a division of Spang & Co. |
Description: DOUBLE SLAB SCP Packaging: Bulk Material: W Length: 1.004" (25.50mm) Width: 0.673" (17.09mm) Height: 0.634" (16.10mm) Core Type: EQ Inductance Factor (Al): 13 µH Initial Permeability (µi): 10000 Finish: Uncoated Gap: Ungapped Effective Length (le) mm: 38.9 Effective Area (Ae) mm²: 77 Minimum Core Cross Section (Amin) mm²: 62.7 Effective Magnetic Volume (Ve) mm³: 3000 |
товару немає в наявності |
Мінімальне замовлення: 444 шт В кошику од. на суму грн. | |||||||||||||||||||
| EQH2014E026L050 | Magnetics, a division of Spang & Co. |
Description: HIGH FLUX 026 PERM EQ 2014 SIZE Initial Permeability (µi): 26 Inductance Factor (Al): 81 nH Core Type: EQ Height: 0.197" (5.00mm) Width: 0.551" (14.00mm) Length: 0.787" (20.00mm) Material: High Flux Tolerance: ±8% Packaging: Bulk Effective Magnetic Volume (Ve) mm³: 1780 Effective Area (Ae) mm²: 60.8 Effective Length (le) mm: 29.3 Gap: Ungapped Finish: Uncoated |
товару немає в наявності |
Мінімальне замовлення: 672 шт В кошику од. на суму грн. |
| C058438A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 281NH HI FLX
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.875" (47.63mm)
Height: 0.745" (18.92mm)
Core Type: Toroid
Inductance Factor (Al): 281 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Part Status: Active
Effective Length (le) mm: 107.0
Effective Area (Ae) mm²: 199.0
Effective Magnetic Volume (Ve) mm³: 21300.0
Description: FERRITE CORE TOROID 281NH HI FLX
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.875" (47.63mm)
Height: 0.745" (18.92mm)
Core Type: Toroid
Inductance Factor (Al): 281 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Part Status: Active
Effective Length (le) mm: 107.0
Effective Area (Ae) mm²: 199.0
Effective Magnetic Volume (Ve) mm³: 21300.0
на замовлення 672 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 4471.22 грн |
| 10+ | 2834.17 грн |
| C058439A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 135NH
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.875" (47.63mm)
Height: 0.710" (18.03mm)
Core Type: Toroid
Inductance Factor (Al): 135 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Part Status: Active
Effective Length (le) mm: 107.0
Effective Area (Ae) mm²: 199.0
Effective Magnetic Volume (Ve) mm³: 21300.0
Description: FERRITE CORE TOROID 135NH
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.875" (47.63mm)
Height: 0.710" (18.03mm)
Core Type: Toroid
Inductance Factor (Al): 135 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Part Status: Active
Effective Length (le) mm: 107.0
Effective Area (Ae) mm²: 199.0
Effective Magnetic Volume (Ve) mm³: 21300.0
на замовлення 630 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 4300.74 грн |
| 10+ | 2704.63 грн |
| C058548A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 127NH HI FLX
Packaging: Bulk
Tolerance: ±8%
Material: High Flux
Diameter: 1.291" (32.80mm)
Height: 0.420" (10.67mm)
Core Type: Toroid
Inductance Factor (Al): 127 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 81.4
Effective Area (Ae) mm²: 65.6
Effective Magnetic Volume (Ve) mm³: 5340.0
Description: FERRITE CORE TOROID 127NH HI FLX
Packaging: Bulk
Tolerance: ±8%
Material: High Flux
Diameter: 1.291" (32.80mm)
Height: 0.420" (10.67mm)
Core Type: Toroid
Inductance Factor (Al): 127 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 81.4
Effective Area (Ae) mm²: 65.6
Effective Magnetic Volume (Ve) mm³: 5340.0
на замовлення 826 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 857.82 грн |
| 10+ | 550.63 грн |
| 25+ | 458.77 грн |
| 50+ | 374.04 грн |
| C058548A2HT19 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 125 PERM KHAKI 548 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.325" (33.66mm)
Height: 0.748" (19.00mm)
Core Type: Toroid
Inductance Factor (Al): 214 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 81.4
Effective Area (Ae) mm²: 110.5
Effective Magnetic Volume (Ve) mm³: 9000.0
Description: HIGH FLUX 125 PERM KHAKI 548 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.325" (33.66mm)
Height: 0.748" (19.00mm)
Core Type: Toroid
Inductance Factor (Al): 214 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 81.4
Effective Area (Ae) mm²: 110.5
Effective Magnetic Volume (Ve) mm³: 9000.0
товару немає в наявності
Мінімальне замовлення: 175 шт
В кошику
од. на суму грн.
| C058548A5 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: OBSOLETE HIGH FLUX 125 PERM KHAK
Effective Area (Ae) mm²: 65.6
Effective Length (le) mm: 81.4
Gap: Ungapped
Finish: Coated
Initial Permeability (µi): 125
Inductance Factor (Al): 127 nH
Core Type: Toroid
Height: 0.450" (11.45mm)
Diameter: 1.325" (33.66mm)
Material: High Flux
Effective Magnetic Volume (Ve) mm³: 5340
Tolerance: ±8%
Packaging: Bulk
Description: OBSOLETE HIGH FLUX 125 PERM KHAK
Effective Area (Ae) mm²: 65.6
Effective Length (le) mm: 81.4
Gap: Ungapped
Finish: Coated
Initial Permeability (µi): 125
Inductance Factor (Al): 127 nH
Core Type: Toroid
Height: 0.450" (11.45mm)
Diameter: 1.325" (33.66mm)
Material: High Flux
Effective Magnetic Volume (Ve) mm³: 5340
Tolerance: ±8%
Packaging: Bulk
товару немає в наявності
Мінімальне замовлення: 500 шт
В кошику
од. на суму грн.
| C058552A2 |
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 090 PERM KHAKI 548 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.325" (33.66mm)
Height: 0.450" (11.45mm)
Core Type: Toroid
Inductance Factor (Al): 91 nH
Initial Permeability (µi): 90
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 81.4
Effective Area (Ae) mm²: 65.6
Effective Magnetic Volume (Ve) mm³: 5340
Description: HIGH FLUX 090 PERM KHAKI 548 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.325" (33.66mm)
Height: 0.450" (11.45mm)
Core Type: Toroid
Inductance Factor (Al): 91 nH
Initial Permeability (µi): 90
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 81.4
Effective Area (Ae) mm²: 65.6
Effective Magnetic Volume (Ve) mm³: 5340
товару немає в наявності
Мінімальне замовлення: 250 шт
В кошику
од. на суму грн.
| C058583A2 |
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 160 PERM KHAKI 585 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.385" (35.18mm)
Height: 0.384" (9.78mm)
Core Type: Toroid
Inductance Factor (Al): 101 nH
Initial Permeability (µi): 160
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 89.5
Effective Area (Ae) mm²: 46.4
Effective Magnetic Volume (Ve) mm³: 4150
Description: HIGH FLUX 160 PERM KHAKI 585 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.385" (35.18mm)
Height: 0.384" (9.78mm)
Core Type: Toroid
Inductance Factor (Al): 101 nH
Initial Permeability (µi): 160
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 89.5
Effective Area (Ae) mm²: 46.4
Effective Magnetic Volume (Ve) mm³: 4150
товару немає в наявності
Мінімальне замовлення: 600 шт
В кошику
од. на суму грн.
| C058585A2 |
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 125 PERM KHAKI 585 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.385" (35.18mm)
Height: 0.384" (9.78mm)
Core Type: Toroid
Inductance Factor (Al): 79 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 89.5
Effective Area (Ae) mm²: 46.4
Effective Magnetic Volume (Ve) mm³: 4150
Description: HIGH FLUX 125 PERM KHAKI 585 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.385" (35.18mm)
Height: 0.384" (9.78mm)
Core Type: Toroid
Inductance Factor (Al): 79 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 89.5
Effective Area (Ae) mm²: 46.4
Effective Magnetic Volume (Ve) mm³: 4150
товару немає в наявності
Мінімальне замовлення: 600 шт
В кошику
од. на суму грн.
| C058586A2 |
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 38NH HIGH FL
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.385" (35.18mm)
Height: 0.350" (8.90mm)
Core Type: Toroid
Inductance Factor (Al): 38 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 89.5
Effective Area (Ae) mm²: 46.4
Effective Magnetic Volume (Ve) mm³: 4150
Description: FERRITE CORE TOROID 38NH HIGH FL
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.385" (35.18mm)
Height: 0.350" (8.90mm)
Core Type: Toroid
Inductance Factor (Al): 38 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 89.5
Effective Area (Ae) mm²: 46.4
Effective Magnetic Volume (Ve) mm³: 4150
на замовлення 295 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 853.17 грн |
| 10+ | 699.27 грн |
| C058848A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 32NH HIGH FL
Inductance Factor (Al): 32 nH
Core Type: Toroid
Height: 0.280" (7.11mm)
Diameter: 0.830" (21.08mm)
Material: High Flux
Tolerance: ±8%
Packaging: Bulk
Effective Magnetic Volume (Ve) mm³: 1120.0
Effective Area (Ae) mm²: 22.1
Effective Length (le) mm: 50.9
Gap: Ungapped
Finish: Coated
Initial Permeability (µi): 60
Description: FERRITE CORE TOROID 32NH HIGH FL
Inductance Factor (Al): 32 nH
Core Type: Toroid
Height: 0.280" (7.11mm)
Diameter: 0.830" (21.08mm)
Material: High Flux
Tolerance: ±8%
Packaging: Bulk
Effective Magnetic Volume (Ve) mm³: 1120.0
Effective Area (Ae) mm²: 22.1
Effective Length (le) mm: 50.9
Gap: Ungapped
Finish: Coated
Initial Permeability (µi): 60
на замовлення 713 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 311.51 грн |
| 10+ | 205.13 грн |
| 25+ | 173.93 грн |
| 50+ | 142.91 грн |
| 100+ | 124.03 грн |
| 250+ | 111.45 грн |
| C058848A2HT14 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 060 PERM KHAKI 206 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 0.830" (21.08mm)
Height: 0.551" (14.00mm)
Core Type: Toroid
Inductance Factor (Al): 64 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 50.9
Effective Area (Ae) mm²: 44.2
Effective Magnetic Volume (Ve) mm³: 2250.0
Description: HIGH FLUX 060 PERM KHAKI 206 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 0.830" (21.08mm)
Height: 0.551" (14.00mm)
Core Type: Toroid
Inductance Factor (Al): 64 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 50.9
Effective Area (Ae) mm²: 44.2
Effective Magnetic Volume (Ve) mm³: 2250.0
товару немає в наявності
Мінімальне замовлення: 800 шт
В кошику
од. на суму грн.
| C058867A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 68NH HIGH FL
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 3.063" (77.80mm)
Height: 0.500" (12.70mm)
Core Type: Toroid
Inductance Factor (Al): 68 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 196.0
Effective Area (Ae) mm²: 176.0
Effective Magnetic Volume (Ve) mm³: 34500.0
Description: FERRITE CORE TOROID 68NH HIGH FL
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 3.063" (77.80mm)
Height: 0.500" (12.70mm)
Core Type: Toroid
Inductance Factor (Al): 68 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 196.0
Effective Area (Ae) mm²: 176.0
Effective Magnetic Volume (Ve) mm³: 34500.0
на замовлення 40 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 3248.41 грн |
| 10+ | 2780.52 грн |
| C058894A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 75NH HIGH FL
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 0.470" (11.94mm)
Core Type: Toroid
Inductance Factor (Al): 75 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 65.4
Effective Magnetic Volume (Ve) mm³: 4150.0
Description: FERRITE CORE TOROID 75NH HIGH FL
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 0.470" (11.94mm)
Core Type: Toroid
Inductance Factor (Al): 75 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 65.4
Effective Magnetic Volume (Ve) mm³: 4150.0
на замовлення 466 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 648.60 грн |
| 10+ | 420.19 грн |
| 25+ | 352.21 грн |
| 50+ | 286.12 грн |
| 100+ | 253.88 грн |
| C058894A2HT15 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 060 PERM KHAKI 930 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 0.591" (15.00mm)
Core Type: Toroid
Inductance Factor (Al): 94 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 82.1
Effective Magnetic Volume (Ve) mm³: 5210
Description: HIGH FLUX 060 PERM KHAKI 930 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 0.591" (15.00mm)
Core Type: Toroid
Inductance Factor (Al): 94 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 82.1
Effective Magnetic Volume (Ve) mm³: 5210
товару немає в наявності
Мінімальне замовлення: 360 шт
В кошику
од. на суму грн.
| C058894A2HT19 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 120NH HI FLX
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 0.748" (19.00mm)
Core Type: Toroid
Inductance Factor (Al): 120 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Part Status: Active
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 105.0
Effective Magnetic Volume (Ve) mm³: 6670.0
Description: FERRITE CORE TOROID 120NH HI FLX
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 0.748" (19.00mm)
Core Type: Toroid
Inductance Factor (Al): 120 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Part Status: Active
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 105.0
Effective Magnetic Volume (Ve) mm³: 6670.0
на замовлення 109 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 990.33 грн |
| 10+ | 633.60 грн |
| 25+ | 526.88 грн |
| 50+ | 424.67 грн |
| 100+ | 418.86 грн |
| C058894A2HT34 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 060 PERM KHAKI 930 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 1.339" (34.00mm)
Core Type: Toroid
Inductance Factor (Al): 225 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 196
Effective Magnetic Volume (Ve) mm³: 12400
Description: HIGH FLUX 060 PERM KHAKI 930 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 1.339" (34.00mm)
Core Type: Toroid
Inductance Factor (Al): 225 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 196
Effective Magnetic Volume (Ve) mm³: 12400
товару немає в наявності
Мінімальне замовлення: 160 шт
В кошику
од. на суму грн.
| C058906A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 178NH HI FLX
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 3.108" (78.94mm)
Height: 0.670" (17.02mm)
Core Type: Toroid
Inductance Factor (Al): 178 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 196.0
Effective Area (Ae) mm²: 221.0
Effective Magnetic Volume (Ve) mm³: 43400.0
Description: FERRITE CORE TOROID 178NH HI FLX
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 3.108" (78.94mm)
Height: 0.670" (17.02mm)
Core Type: Toroid
Inductance Factor (Al): 178 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 196.0
Effective Area (Ae) mm²: 221.0
Effective Magnetic Volume (Ve) mm³: 43400.0
на замовлення 27 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 3792.40 грн |
| 10+ | 3562.17 грн |
| C058907A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 060 PERM KHAKI 906 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 3.108" (78.94mm)
Height: 0.669" (17.00mm)
Core Type: Toroid
Inductance Factor (Al): 85 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 196.0
Effective Area (Ae) mm²: 221.0
Effective Magnetic Volume (Ve) mm³: 43400.0
Description: HIGH FLUX 060 PERM KHAKI 906 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 3.108" (78.94mm)
Height: 0.669" (17.00mm)
Core Type: Toroid
Inductance Factor (Al): 85 nH
Initial Permeability (µi): 60
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 196.0
Effective Area (Ae) mm²: 221.0
Effective Magnetic Volume (Ve) mm³: 43400.0
товару немає в наявності
Мінімальне замовлення: 40 шт
В кошику
од. на суму грн.
| C058928A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 201NH HI FLX
Effective Magnetic Volume (Ve) mm³: 4150.0
Effective Area (Ae) mm²: 65.4
Effective Length (le) mm: 63.5
Part Status: Active
Gap: Ungapped
Finish: Coated
Initial Permeability (µi): 160
Inductance Factor (Al): 201 nH
Core Type: Toroid
Height: 0.440" (11.18mm)
Diameter: 1.060" (26.92mm)
Material: High Flux
Tolerance: ±8%
Packaging: Bulk
Description: FERRITE CORE TOROID 201NH HI FLX
Effective Magnetic Volume (Ve) mm³: 4150.0
Effective Area (Ae) mm²: 65.4
Effective Length (le) mm: 63.5
Part Status: Active
Gap: Ungapped
Finish: Coated
Initial Permeability (µi): 160
Inductance Factor (Al): 201 nH
Core Type: Toroid
Height: 0.440" (11.18mm)
Diameter: 1.060" (26.92mm)
Material: High Flux
Tolerance: ±8%
Packaging: Bulk
на замовлення 315 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1485.50 грн |
| 10+ | 937.68 грн |
| 25+ | 772.65 грн |
| 50+ | 712.67 грн |
| C058930A2 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE TOROID 157NH
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.060" (26.92mm)
Height: 0.440" (11.18mm)
Core Type: Toroid
Inductance Factor (Al): 157 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Part Status: Active
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 65.4
Effective Magnetic Volume (Ve) mm³: 4150.0
Description: FERRITE CORE TOROID 157NH
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.060" (26.92mm)
Height: 0.440" (11.18mm)
Core Type: Toroid
Inductance Factor (Al): 157 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Part Status: Active
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 65.4
Effective Magnetic Volume (Ve) mm³: 4150.0
на замовлення 305 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 640.85 грн |
| 10+ | 414.97 грн |
| 25+ | 347.82 грн |
| 50+ | 282.57 грн |
| 100+ | 250.72 грн |
| C058930A2HT19 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 125 PERM KHAKI 930 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 0.748" (19.00mm)
Core Type: Toroid
Inductance Factor (Al): 253 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 105.0
Effective Magnetic Volume (Ve) mm³: 6670.0
Description: HIGH FLUX 125 PERM KHAKI 930 SIZ
Tolerance: ±8%
Packaging: Bulk
Material: High Flux
Diameter: 1.090" (27.69mm)
Height: 0.748" (19.00mm)
Core Type: Toroid
Inductance Factor (Al): 253 nH
Initial Permeability (µi): 125
Finish: Coated
Gap: Ungapped
Effective Length (le) mm: 63.5
Effective Area (Ae) mm²: 105.0
Effective Magnetic Volume (Ve) mm³: 6670.0
товару немає в наявності
Мінімальне замовлення: 280 шт
В кошику
од. на суму грн.
| CAP0102B1 |
Виробник: Magnetics, a division of Spang & Co.
Description: CAP (FOR 00K102TC SEG TOROID)
Packaging: Bulk
Description: CAP (FOR 00K102TC SEG TOROID)
Packaging: Bulk
товару немає в наявності
Мінімальне замовлення: 100 шт
В кошику
од. на суму грн.
| CL41434EC |
Виробник: Magnetics, a division of Spang & Co.
Description: PE CS CORE
Tolerance: ±25%
Packaging: Bulk
Material: L
Length: 0.551" (14.00mm)
Width: 0.197" (5.00mm)
Height: 0.138" (3.50mm)
Core Type: Planar E/I
Inductance Factor (Al): 600 nH
Initial Permeability (µi): 900
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 20.1
Effective Area (Ae) mm²: 12.8
Minimum Core Cross Section (Amin) mm²: 11.4
Effective Magnetic Volume (Ve) mm³: 304
Description: PE CS CORE
Tolerance: ±25%
Packaging: Bulk
Material: L
Length: 0.551" (14.00mm)
Width: 0.197" (5.00mm)
Height: 0.138" (3.50mm)
Core Type: Planar E/I
Inductance Factor (Al): 600 nH
Initial Permeability (µi): 900
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 20.1
Effective Area (Ae) mm²: 12.8
Minimum Core Cross Section (Amin) mm²: 11.4
Effective Magnetic Volume (Ve) mm³: 304
товару немає в наявності
Мінімальне замовлення: 4900 шт
В кошику
од. на суму грн.
| CL41434IC |
Виробник: Magnetics, a division of Spang & Co.
Description: PI CS CORE
Tolerance: ±25%
Packaging: Bulk
Material: L
Length: 0.551" (14.00mm)
Width: 0.197" (5.00mm)
Height: 0.071" (1.80mm)
Core Type: Planar E/I
Inductance Factor (Al): 780 nH
Initial Permeability (µi): 900
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 16.4
Effective Area (Ae) mm²: 14.2
Minimum Core Cross Section (Amin) mm²: 11.4
Effective Magnetic Volume (Ve) mm³: 230
Description: PI CS CORE
Tolerance: ±25%
Packaging: Bulk
Material: L
Length: 0.551" (14.00mm)
Width: 0.197" (5.00mm)
Height: 0.071" (1.80mm)
Core Type: Planar E/I
Inductance Factor (Al): 780 nH
Initial Permeability (µi): 900
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 16.4
Effective Area (Ae) mm²: 14.2
Minimum Core Cross Section (Amin) mm²: 11.4
Effective Magnetic Volume (Ve) mm³: 230
товару немає в наявності
Мінімальне замовлення: 4410 шт
В кошику
од. на суму грн.
| CMC016010006H |
|
Виробник: Magnetics, a division of Spang & Co.
Description: NANOCRYSTALLINE CORE TOROID 43UH
Effective Area (Ae) mm²: 15.0
Effective Length (le) mm: 41.0
Part Status: Active
Gap: Ungapped
Finish: Polyester
Initial Permeability (µi): 80000
Inductance Factor (Al): 43 µH
Core Type: Toroid
Height: 0.236" (6.00mm)
Diameter: 0.630" (16.00mm)
Material: Nanocrystalline
Tolerance: ±30%
Packaging: Bulk
Description: NANOCRYSTALLINE CORE TOROID 43UH
Effective Area (Ae) mm²: 15.0
Effective Length (le) mm: 41.0
Part Status: Active
Gap: Ungapped
Finish: Polyester
Initial Permeability (µi): 80000
Inductance Factor (Al): 43 µH
Core Type: Toroid
Height: 0.236" (6.00mm)
Diameter: 0.630" (16.00mm)
Material: Nanocrystalline
Tolerance: ±30%
Packaging: Bulk
на замовлення 752 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 106.16 грн |
| 10+ | 70.82 грн |
| 25+ | 60.56 грн |
| 50+ | 50.24 грн |
| 100+ | 47.87 грн |
| CMC020012008H |
|
Виробник: Magnetics, a division of Spang & Co.
Description: NANOCRYSTAL CORE TOROID 61.5UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 0.787" (20.00mm)
Height: 0.315" (8.00mm)
Core Type: Toroid
Inductance Factor (Al): 61.5 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 50.2
Effective Area (Ae) mm²: 26.9
Description: NANOCRYSTAL CORE TOROID 61.5UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 0.787" (20.00mm)
Height: 0.315" (8.00mm)
Core Type: Toroid
Inductance Factor (Al): 61.5 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 50.2
Effective Area (Ae) mm²: 26.9
на замовлення 204 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 244.87 грн |
| 10+ | 161.55 грн |
| 25+ | 137.63 грн |
| 50+ | 113.71 грн |
| 100+ | 99.46 грн |
| CMC025016010H |
|
Виробник: Magnetics, a division of Spang & Co.
Description: NANOCRYSTAL CORE TOROID 65.5UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 0.984" (25.00mm)
Height: 0.394" (10.00mm)
Core Type: Toroid
Inductance Factor (Al): 65.5 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 64.3
Effective Area (Ae) mm²: 37.0
Description: NANOCRYSTAL CORE TOROID 65.5UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 0.984" (25.00mm)
Height: 0.394" (10.00mm)
Core Type: Toroid
Inductance Factor (Al): 65.5 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 64.3
Effective Area (Ae) mm²: 37.0
на замовлення 201 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 237.90 грн |
| 10+ | 157.30 грн |
| 25+ | 133.63 грн |
| 50+ | 110.00 грн |
| 100+ | 95.68 грн |
| CMC030020010H |
|
Виробник: Magnetics, a division of Spang & Co.
Description: NANOCRYSTAL CORE TOROID 59.3UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.181" (30.00mm)
Height: 0.394" (10.00mm)
Core Type: Toroid
Inductance Factor (Al): 59.3 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 78.5
Effective Area (Ae) mm²: 41.0
Description: NANOCRYSTAL CORE TOROID 59.3UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.181" (30.00mm)
Height: 0.394" (10.00mm)
Core Type: Toroid
Inductance Factor (Al): 59.3 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 78.5
Effective Area (Ae) mm²: 41.0
на замовлення 191 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 401.40 грн |
| 10+ | 262.96 грн |
| 25+ | 222.85 грн |
| 50+ | 183.20 грн |
| 100+ | 159.18 грн |
| CMC030020012H |
|
Виробник: Magnetics, a division of Spang & Co.
Description: NANOCRYSTALLINE CORE TOROID 55UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.181" (30.00mm)
Height: 0.472" (12.00mm)
Core Type: Toroid
Inductance Factor (Al): 55 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 79
Effective Area (Ae) mm²: 49
Description: NANOCRYSTALLINE CORE TOROID 55UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.181" (30.00mm)
Height: 0.472" (12.00mm)
Core Type: Toroid
Inductance Factor (Al): 55 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 79
Effective Area (Ae) mm²: 49
на замовлення 90 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1508.75 грн |
| 10+ | 1307.88 грн |
| 25+ | 988.22 грн |
| 50+ | 900.12 грн |
| CMC030020015H |
|
Виробник: Magnetics, a division of Spang & Co.
Description: NANOCRYSTALLINE CORE TOROID 88UH
Core Type: Toroid
Height: 0.591" (15.00mm)
Diameter: 1.181" (30.00mm)
Material: Nanocrystalline
Tolerance: ±30%
Packaging: Bulk
Effective Area (Ae) mm²: 63.0
Effective Length (le) mm: 79.0
Gap: Ungapped
Finish: Polyester
Initial Permeability (µi): 80000
Inductance Factor (Al): 88 µH
Description: NANOCRYSTALLINE CORE TOROID 88UH
Core Type: Toroid
Height: 0.591" (15.00mm)
Diameter: 1.181" (30.00mm)
Material: Nanocrystalline
Tolerance: ±30%
Packaging: Bulk
Effective Area (Ae) mm²: 63.0
Effective Length (le) mm: 79.0
Gap: Ungapped
Finish: Polyester
Initial Permeability (µi): 80000
Inductance Factor (Al): 88 µH
на замовлення 128 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 573.43 грн |
| 10+ | 373.33 грн |
| 25+ | 314.93 грн |
| 50+ | 257.73 грн |
| 100+ | 231.79 грн |
| CMC040025015H |
|
Виробник: Magnetics, a division of Spang & Co.
Description: NANOCRYSTAL CORE TOROID 101UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.575" (40.00mm)
Height: 0.591" (15.00mm)
Core Type: Toroid
Inductance Factor (Al): 101 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 102.0
Effective Area (Ae) mm²: 92.0
Description: NANOCRYSTAL CORE TOROID 101UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.575" (40.00mm)
Height: 0.591" (15.00mm)
Core Type: Toroid
Inductance Factor (Al): 101 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 102.0
Effective Area (Ae) mm²: 92.0
на замовлення 574 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 888.04 грн |
| 10+ | 570.48 грн |
| 25+ | 475.48 грн |
| 50+ | 384.12 грн |
| 128+ | 367.63 грн |
| CMC040032015H |
|
Виробник: Magnetics, a division of Spang & Co.
Description: NANOCRYSTAL CORE TOROID 47.2UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.575" (40.00mm)
Height: 0.591" (15.00mm)
Core Type: Toroid
Inductance Factor (Al): 47.2 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 113.0
Effective Area (Ae) mm²: 50.0
Description: NANOCRYSTAL CORE TOROID 47.2UH
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.575" (40.00mm)
Height: 0.591" (15.00mm)
Core Type: Toroid
Inductance Factor (Al): 47.2 µH
Initial Permeability (µi): 80000
Finish: Polyester
Gap: Ungapped
Effective Length (le) mm: 113.0
Effective Area (Ae) mm²: 50.0
на замовлення 418 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 433.95 грн |
| 10+ | 283.63 грн |
| 25+ | 239.23 грн |
| 50+ | 195.56 грн |
| 100+ | 168.61 грн |
| 300+ | 158.20 грн |
| CMF045030015H |
Виробник: Magnetics, a division of Spang & Co.
Description: CMF045030015H
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.772" (45.00mm)
Height: 0.591" (15.00mm)
Core Type: Toroid
Inductance Factor (Al): 78 µH
Initial Permeability (µi): 80000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 118.0
Effective Area (Ae) mm²: 92.0
Description: CMF045030015H
Tolerance: ±30%
Packaging: Bulk
Material: Nanocrystalline
Diameter: 1.772" (45.00mm)
Height: 0.591" (15.00mm)
Core Type: Toroid
Inductance Factor (Al): 78 µH
Initial Permeability (µi): 80000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 118.0
Effective Area (Ae) mm²: 92.0
товару немає в наявності
Мінімальне замовлення: 120 шт
В кошику
од. на суму грн.
| CMF100080020H |
Виробник: Magnetics, a division of Spang & Co.
Description: CMF100080020H
Effective Area (Ae) mm²: 167.0
Effective Length (le) mm: 282.0
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 80000
Inductance Factor (Al): 57 µH
Core Type: Toroid
Height: 0.787" (20.00mm)
Diameter: 3.937" (100.00mm)
Material: Nanocrystalline
Tolerance: ±30%
Packaging: Bulk
Description: CMF100080020H
Effective Area (Ae) mm²: 167.0
Effective Length (le) mm: 282.0
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 80000
Inductance Factor (Al): 57 µH
Core Type: Toroid
Height: 0.787" (20.00mm)
Diameter: 3.937" (100.00mm)
Material: Nanocrystalline
Tolerance: ±30%
Packaging: Bulk
товару немає в наявності
Мінімальне замовлення: 18 шт
В кошику
од. на суму грн.
| CP42014EC |
Виробник: Magnetics, a division of Spang & Co.
Description: ER CORE
Packaging: Bulk
Material: P
Length: 0.787" (20.00mm)
Width: 0.551" (14.00mm)
Height: 0.268" (6.80mm)
Core Type: ER
Inductance Factor (Al): 4.026 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 33.2
Effective Area (Ae) mm²: 59.0
Effective Magnetic Volume (Ve) mm³: 55.0
Description: ER CORE
Packaging: Bulk
Material: P
Length: 0.787" (20.00mm)
Width: 0.551" (14.00mm)
Height: 0.268" (6.80mm)
Core Type: ER
Inductance Factor (Al): 4.026 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 33.2
Effective Area (Ae) mm²: 59.0
Effective Magnetic Volume (Ve) mm³: 55.0
товару немає в наявності
Мінімальне замовлення: 2016 шт
В кошику
од. на суму грн.
| CP43208EC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: E-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: P
Length: 1.250" (31.75mm)
Width: 0.800" (20.32mm)
Height: 0.250" (6.35mm)
Core Type: Planar E
Inductance Factor (Al): 6.918 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 41.4
Effective Area (Ae) mm²: 130.0
Minimum Core Cross Section (Amin) mm²: 130.0
Effective Magnetic Volume (Ve) mm³: 5380.0
Description: E-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: P
Length: 1.250" (31.75mm)
Width: 0.800" (20.32mm)
Height: 0.250" (6.35mm)
Core Type: Planar E
Inductance Factor (Al): 6.918 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 41.4
Effective Area (Ae) mm²: 130.0
Minimum Core Cross Section (Amin) mm²: 130.0
Effective Magnetic Volume (Ve) mm³: 5380.0
товару немає в наявності
Мінімальне замовлення: 1920 шт
В кошику
од. на суму грн.
| CP43208IC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: I-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: P
Length: 1.250" (31.75mm)
Width: 0.800" (20.32mm)
Height: 0.125" (3.18mm)
Core Type: Planar E/I
Inductance Factor (Al): 7.745 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 35.1
Effective Area (Ae) mm²: 130.0
Minimum Core Cross Section (Amin) mm²: 130.0
Effective Magnetic Volume (Ve) mm³: 4560.0
Description: I-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: P
Length: 1.250" (31.75mm)
Width: 0.800" (20.32mm)
Height: 0.125" (3.18mm)
Core Type: Planar E/I
Inductance Factor (Al): 7.745 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 35.1
Effective Area (Ae) mm²: 130.0
Minimum Core Cross Section (Amin) mm²: 130.0
Effective Magnetic Volume (Ve) mm³: 4560.0
товару немає в наявності
Мінімальне замовлення: 1920 шт
В кошику
од. на суму грн.
| CR41434EC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: E-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 0.551" (14.00mm)
Width: 0.197" (5.00mm)
Height: 0.138" (3.50mm)
Core Type: Planar E
Inductance Factor (Al): 1.327 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 20.7
Effective Area (Ae) mm²: 14.66
Minimum Core Cross Section (Amin) mm²: 14.66
Effective Magnetic Volume (Ve) mm³: 304.0
Description: E-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 0.551" (14.00mm)
Width: 0.197" (5.00mm)
Height: 0.138" (3.50mm)
Core Type: Planar E
Inductance Factor (Al): 1.327 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 20.7
Effective Area (Ae) mm²: 14.66
Minimum Core Cross Section (Amin) mm²: 14.66
Effective Magnetic Volume (Ve) mm³: 304.0
на замовлення 11730 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 13+ | 25.57 грн |
| 18+ | 17.31 грн |
| 25+ | 14.95 грн |
| 50+ | 12.52 грн |
| 100+ | 11.16 грн |
| 250+ | 9.51 грн |
| 500+ | 8.25 грн |
| 1000+ | 7.23 грн |
| 5000+ | 5.92 грн |
| CR41434IC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: I-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 0.551" (14.00mm)
Width: 0.197" (5.00mm)
Height: 0.071" (1.80mm)
Core Type: Planar E/I
Inductance Factor (Al): 1.504 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 16.4
Effective Area (Ae) mm²: 14.2
Minimum Core Cross Section (Amin) mm²: 11.4
Effective Magnetic Volume (Ve) mm³: 230.0
Description: I-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 0.551" (14.00mm)
Width: 0.197" (5.00mm)
Height: 0.071" (1.80mm)
Core Type: Planar E/I
Inductance Factor (Al): 1.504 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 16.4
Effective Area (Ae) mm²: 14.2
Minimum Core Cross Section (Amin) mm²: 11.4
Effective Magnetic Volume (Ve) mm³: 230.0
товару немає в наявності
Мінімальне замовлення: 5880 шт
В кошику
од. на суму грн.
| CR41805EC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: E-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 0.709" (18.00mm)
Width: 0.394" (10.00mm)
Height: 0.157" (4.00mm)
Core Type: Planar E
Inductance Factor (Al): 3.244 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 24.2
Effective Area (Ae) mm²: 40.1
Minimum Core Cross Section (Amin) mm²: 39.9
Effective Magnetic Volume (Ve) mm³: 972.0
Description: E-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 0.709" (18.00mm)
Width: 0.394" (10.00mm)
Height: 0.157" (4.00mm)
Core Type: Planar E
Inductance Factor (Al): 3.244 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 24.2
Effective Area (Ae) mm²: 40.1
Minimum Core Cross Section (Amin) mm²: 39.9
Effective Magnetic Volume (Ve) mm³: 972.0
товару немає в наявності
Мінімальне замовлення: 3840 шт
В кошику
од. на суму грн.
| CR41805IC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: I-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 0.709" (18.00mm)
Width: 0.394" (10.00mm)
Height: 0.094" (2.40mm)
Core Type: I
Inductance Factor (Al): 3.606 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 20.3
Effective Area (Ae) mm²: 39.5
Minimum Core Cross Section (Amin) mm²: 35.9
Effective Magnetic Volume (Ve) mm³: 830.0
Description: I-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 0.709" (18.00mm)
Width: 0.394" (10.00mm)
Height: 0.094" (2.40mm)
Core Type: I
Inductance Factor (Al): 3.606 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 20.3
Effective Area (Ae) mm²: 39.5
Minimum Core Cross Section (Amin) mm²: 35.9
Effective Magnetic Volume (Ve) mm³: 830.0
товару немає в наявності
Мінімальне замовлення: 3840 шт
В кошику
од. на суму грн.
| CR42014EC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: ER CORE
Packaging: Bulk
Material: R
Length: 0.787" (20.00mm)
Width: 0.551" (14.00mm)
Height: 0.248" (6.30mm)
Core Type: ER
Inductance Factor (Al): 3.788 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 33.2
Effective Area (Ae) mm²: 59.0
Minimum Core Cross Section (Amin) mm²: 55.0
Effective Magnetic Volume (Ve) mm³: 1960.0
Description: ER CORE
Packaging: Bulk
Material: R
Length: 0.787" (20.00mm)
Width: 0.551" (14.00mm)
Height: 0.248" (6.30mm)
Core Type: ER
Inductance Factor (Al): 3.788 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 33.2
Effective Area (Ae) mm²: 59.0
Minimum Core Cross Section (Amin) mm²: 55.0
Effective Magnetic Volume (Ve) mm³: 1960.0
товару немає в наявності
Мінімальне замовлення: 2016 шт
В кошику
од. на суму грн.
| CR42014IC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: IC CORE
Packaging: Bulk
Material: R
Length: 0.787" (20.00mm)
Width: 0.551" (14.00mm)
Height: 0.091" (2.30mm)
Core Type: Planar E/I
Inductance Factor (Al): 4.5 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 25.1
Effective Area (Ae) mm²: 59.8
Minimum Core Cross Section (Amin) mm²: 55.0
Effective Magnetic Volume (Ve) mm³: 1500.0
Description: IC CORE
Packaging: Bulk
Material: R
Length: 0.787" (20.00mm)
Width: 0.551" (14.00mm)
Height: 0.091" (2.30mm)
Core Type: Planar E/I
Inductance Factor (Al): 4.5 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 25.1
Effective Area (Ae) mm²: 59.8
Minimum Core Cross Section (Amin) mm²: 55.0
Effective Magnetic Volume (Ve) mm³: 1500.0
товару немає в наявності
Мінімальне замовлення: 2016 шт
В кошику
од. на суму грн.
| CR42216EC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE E 5.066UH
Effective Magnetic Volume (Ve) mm³: 2451.0
Effective Area (Ae) mm²: 76.0
Effective Length (le) mm: 32.3
Part Status: Active
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 2300
Inductance Factor (Al): 5.066 µH
Core Type: E
Height: 0.224" (5.70mm)
Width: 0.622" (15.80mm)
Length: 0.858" (21.80mm)
Packaging: Bulk
Description: FERRITE CORE E 5.066UH
Effective Magnetic Volume (Ve) mm³: 2451.0
Effective Area (Ae) mm²: 76.0
Effective Length (le) mm: 32.3
Part Status: Active
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 2300
Inductance Factor (Al): 5.066 µH
Core Type: E
Height: 0.224" (5.70mm)
Width: 0.622" (15.80mm)
Length: 0.858" (21.80mm)
Packaging: Bulk
на замовлення 9151 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 6+ | 58.89 грн |
| 10+ | 39.85 грн |
| 25+ | 34.27 грн |
| 50+ | 28.59 грн |
| 100+ | 25.27 грн |
| 250+ | 21.26 грн |
| 560+ | 17.73 грн |
| 1120+ | 16.06 грн |
| CR42216IC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: FERRITE CORE I 5.956UH
Effective Magnetic Volume (Ve) mm³: 2100.0
Effective Area (Ae) mm²: 80.4
Effective Length (le) mm: 26.1
Part Status: Active
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 2300
Inductance Factor (Al): 5.956 µH
Core Type: I
Height: 0.114" (2.90mm)
Width: 0.622" (15.80mm)
Length: 0.858" (21.80mm)
Packaging: Bulk
Description: FERRITE CORE I 5.956UH
Effective Magnetic Volume (Ve) mm³: 2100.0
Effective Area (Ae) mm²: 80.4
Effective Length (le) mm: 26.1
Part Status: Active
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 2300
Inductance Factor (Al): 5.956 µH
Core Type: I
Height: 0.114" (2.90mm)
Width: 0.622" (15.80mm)
Length: 0.858" (21.80mm)
Packaging: Bulk
на замовлення 12508 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 5+ | 64.32 грн |
| 10+ | 43.13 грн |
| 25+ | 37.01 грн |
| 50+ | 30.83 грн |
| 100+ | 27.19 грн |
| 250+ | 22.78 грн |
| 560+ | 21.34 грн |
| CR43208EC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: E-CORE WITH CLIP SLOTS
Effective Magnetic Volume (Ve) mm³: 5380.0
Minimum Core Cross Section (Amin) mm²: 130.0
Effective Area (Ae) mm²: 130.0
Effective Length (le) mm: 41.4
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 2300
Inductance Factor (Al): 6.521 µH
Core Type: Planar E
Height: 0.250" (6.35mm)
Width: 0.800" (20.32mm)
Length: 1.250" (31.75mm)
Material: R
Packaging: Bulk
Description: E-CORE WITH CLIP SLOTS
Effective Magnetic Volume (Ve) mm³: 5380.0
Minimum Core Cross Section (Amin) mm²: 130.0
Effective Area (Ae) mm²: 130.0
Effective Length (le) mm: 41.4
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 2300
Inductance Factor (Al): 6.521 µH
Core Type: Planar E
Height: 0.250" (6.35mm)
Width: 0.800" (20.32mm)
Length: 1.250" (31.75mm)
Material: R
Packaging: Bulk
товару немає в наявності
Мінімальне замовлення: 1536 шт
В кошику
од. на суму грн.
| CR43208IC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: I-CORE WITH CLIP SLOTS
Effective Magnetic Volume (Ve) mm³: 4560.0
Minimum Core Cross Section (Amin) mm²: 130.0
Effective Area (Ae) mm²: 130.0
Effective Length (le) mm: 35.1
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 2300
Inductance Factor (Al): 7.321 µH
Core Type: I
Height: 0.125" (3.18mm)
Width: 0.800" (20.32mm)
Length: 1.250" (31.75mm)
Material: R
Packaging: Bulk
Description: I-CORE WITH CLIP SLOTS
Effective Magnetic Volume (Ve) mm³: 4560.0
Minimum Core Cross Section (Amin) mm²: 130.0
Effective Area (Ae) mm²: 130.0
Effective Length (le) mm: 35.1
Gap: Ungapped
Finish: Uncoated
Initial Permeability (µi): 2300
Inductance Factor (Al): 7.321 µH
Core Type: I
Height: 0.125" (3.18mm)
Width: 0.800" (20.32mm)
Length: 1.250" (31.75mm)
Material: R
Packaging: Bulk
товару немає в наявності
Мінімальне замовлення: 1536 шт
В кошику
од. на суму грн.
| CR45810EC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: CLIP SLOT E-CORE
Packaging: Bulk
Material: R
Length: 2.300" (58.42mm)
Width: 1.500" (38.10mm)
Height: 0.415" (10.54mm)
Core Type: Planar E
Inductance Factor (Al): 8.498 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 80.6
Effective Area (Ae) mm²: 308.0
Minimum Core Cross Section (Amin) mm²: 308.0
Effective Magnetic Volume (Ve) mm³: 24600.0
Description: CLIP SLOT E-CORE
Packaging: Bulk
Material: R
Length: 2.300" (58.42mm)
Width: 1.500" (38.10mm)
Height: 0.415" (10.54mm)
Core Type: Planar E
Inductance Factor (Al): 8.498 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 80.6
Effective Area (Ae) mm²: 308.0
Minimum Core Cross Section (Amin) mm²: 308.0
Effective Magnetic Volume (Ve) mm³: 24600.0
товару немає в наявності
Мінімальне замовлення: 480 шт
В кошику
од. на суму грн.
| CR45810IC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: CLIP SLOT I-CORE
Packaging: Bulk
Material: R
Length: 2.300" (58.42mm)
Width: 1.500" (38.10mm)
Height: 0.160" (4.06mm)
Core Type: Planar E/I
Inductance Factor (Al): 9.821 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 68.3
Effective Area (Ae) mm²: 305.0
Minimum Core Cross Section (Amin) mm²: 281.0
Effective Magnetic Volume (Ve) mm³: 20829.0
Description: CLIP SLOT I-CORE
Packaging: Bulk
Material: R
Length: 2.300" (58.42mm)
Width: 1.500" (38.10mm)
Height: 0.160" (4.06mm)
Core Type: Planar E/I
Inductance Factor (Al): 9.821 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 68.3
Effective Area (Ae) mm²: 305.0
Minimum Core Cross Section (Amin) mm²: 281.0
Effective Magnetic Volume (Ve) mm³: 20829.0
товару немає в наявності
Мінімальне замовлення: 480 шт
В кошику
од. на суму грн.
| CR46410EC |
|
Виробник: Magnetics, a division of Spang & Co.
Description: E-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 2.520" (64.00mm)
Width: 2.000" (50.80mm)
Height: 0.402" (10.20mm)
Core Type: Planar E
Inductance Factor (Al): 14.618 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 80.2
Effective Area (Ae) mm²: 516.0
Minimum Core Cross Section (Amin) mm²: 516.0
Effective Magnetic Volume (Ve) mm³: 41400.0
Description: E-CORE WITH CLIP SLOTS
Packaging: Bulk
Material: R
Length: 2.520" (64.00mm)
Width: 2.000" (50.80mm)
Height: 0.402" (10.20mm)
Core Type: Planar E
Inductance Factor (Al): 14.618 µH
Initial Permeability (µi): 2300
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 80.2
Effective Area (Ae) mm²: 516.0
Minimum Core Cross Section (Amin) mm²: 516.0
Effective Magnetic Volume (Ve) mm³: 41400.0
на замовлення 249 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 456.42 грн |
| 10+ | 297.74 грн |
| 25+ | 250.76 грн |
| 72+ | 189.46 грн |
| 144+ | 177.67 грн |
| DF42311A315 |
Виробник: Magnetics, a division of Spang & Co.
Description: GAPPED DOUBLE SLAB POT CORE
Packaging: Bulk
Material: F
Length: 0.900" (22.86mm)
Width: 0.600" (15.25mm)
Height: 0.436" (11.08mm)
Core Type: EQ
Inductance Factor (Al): 315 nH
Initial Permeability (µi): 3000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 26.8
Effective Area (Ae) mm²: 51.2
Effective Magnetic Volume (Ve) mm³: 1370.0
Description: GAPPED DOUBLE SLAB POT CORE
Packaging: Bulk
Material: F
Length: 0.900" (22.86mm)
Width: 0.600" (15.25mm)
Height: 0.436" (11.08mm)
Core Type: EQ
Inductance Factor (Al): 315 nH
Initial Permeability (µi): 3000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 26.8
Effective Area (Ae) mm²: 51.2
Effective Magnetic Volume (Ve) mm³: 1370.0
товару немає в наявності
Мінімальне замовлення: 576 шт
В кошику
од. на суму грн.
| DF42311UG |
Виробник: Magnetics, a division of Spang & Co.
Description: DOUBLE SLAB SCP POT CORE
Tolerance: ±25%
Packaging: Bulk
Material: F
Length: 0.900" (22.86mm)
Width: 0.600" (15.25mm)
Height: 0.436" (11.08mm)
Core Type: EQ
Inductance Factor (Al): 4.46 µH
Initial Permeability (µi): 3000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 26.8
Effective Area (Ae) mm²: 51.2
Minimum Core Cross Section (Amin) mm²: 37.8
Effective Magnetic Volume (Ve) mm³: 1370.0
Description: DOUBLE SLAB SCP POT CORE
Tolerance: ±25%
Packaging: Bulk
Material: F
Length: 0.900" (22.86mm)
Width: 0.600" (15.25mm)
Height: 0.436" (11.08mm)
Core Type: EQ
Inductance Factor (Al): 4.46 µH
Initial Permeability (µi): 3000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 26.8
Effective Area (Ae) mm²: 51.2
Minimum Core Cross Section (Amin) mm²: 37.8
Effective Magnetic Volume (Ve) mm³: 1370.0
товару немає в наявності
Мінімальне замовлення: 1152 шт
В кошику
од. на суму грн.
| DF42318UG |
Виробник: Magnetics, a division of Spang & Co.
Description: DOUBLE SLAB SCP
Tolerance: ±25%
Packaging: Bulk
Material: F
Length: 0.900" (22.86mm)
Width: 0.600" (15.25mm)
Height: 0.709" (18.00mm)
Core Type: EQ
Inductance Factor (Al): 3.8 µH
Initial Permeability (µi): 3000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 39.9
Effective Area (Ae) mm²: 58.0
Minimum Core Cross Section (Amin) mm²: 40.7
Effective Magnetic Volume (Ve) mm³: 2310.0
Description: DOUBLE SLAB SCP
Tolerance: ±25%
Packaging: Bulk
Material: F
Length: 0.900" (22.86mm)
Width: 0.600" (15.25mm)
Height: 0.709" (18.00mm)
Core Type: EQ
Inductance Factor (Al): 3.8 µH
Initial Permeability (µi): 3000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 39.9
Effective Area (Ae) mm²: 58.0
Minimum Core Cross Section (Amin) mm²: 40.7
Effective Magnetic Volume (Ve) mm³: 2310.0
товару немає в наявності
Мінімальне замовлення: 960 шт
В кошику
од. на суму грн.
| DP42318UG |
Виробник: Magnetics, a division of Spang & Co.
Description: DOUBLE SLAB SCP
Packaging: Bulk
Material: P
Length: 0.900" (22.86mm)
Width: 0.600" (15.25mm)
Height: 0.354" (9.00mm)
Core Type: DS
Inductance Factor (Al): 3.16 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 39.9
Effective Area (Ae) mm²: 58.0
Minimum Core Cross Section (Amin) mm²: 40.7
Effective Magnetic Volume (Ve) mm³: 2310.0
Description: DOUBLE SLAB SCP
Packaging: Bulk
Material: P
Length: 0.900" (22.86mm)
Width: 0.600" (15.25mm)
Height: 0.354" (9.00mm)
Core Type: DS
Inductance Factor (Al): 3.16 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 39.9
Effective Area (Ae) mm²: 58.0
Minimum Core Cross Section (Amin) mm²: 40.7
Effective Magnetic Volume (Ve) mm³: 2310.0
товару немає в наявності
Мінімальне замовлення: 864 шт
В кошику
од. на суму грн.
| DP43622UG |
Виробник: Magnetics, a division of Spang & Co.
Description: DOUBLE SLAB SCP
Packaging: Bulk
Material: P
Length: 1.402" (35.61mm)
Width: 0.939" (23.85mm)
Height: 0.427" (10.85mm)
Core Type: DS
Inductance Factor (Al): 5.827 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 56.9
Effective Area (Ae) mm²: 162.0
Minimum Core Cross Section (Amin) mm²: 140.0
Effective Magnetic Volume (Ve) mm³: 9250.0
Description: DOUBLE SLAB SCP
Packaging: Bulk
Material: P
Length: 1.402" (35.61mm)
Width: 0.939" (23.85mm)
Height: 0.427" (10.85mm)
Core Type: DS
Inductance Factor (Al): 5.827 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 56.9
Effective Area (Ae) mm²: 162.0
Minimum Core Cross Section (Amin) mm²: 140.0
Effective Magnetic Volume (Ve) mm³: 9250.0
товару немає в наявності
Мінімальне замовлення: 216 шт
В кошику
од. на суму грн.
| DP44229A250 |
Виробник: Magnetics, a division of Spang & Co.
Description: GAPPED DOUBLE SLAB POT CORE
Packaging: Bulk
Material: P
Length: 1.669" (42.40mm)
Width: 1.118" (28.40mm)
Height: 1.165" (29.60mm)
Core Type: EQ
Inductance Factor (Al): 250 nH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 76
Effective Area (Ae) mm²: 232
Effective Magnetic Volume (Ve) mm³: 17600
Description: GAPPED DOUBLE SLAB POT CORE
Packaging: Bulk
Material: P
Length: 1.669" (42.40mm)
Width: 1.118" (28.40mm)
Height: 1.165" (29.60mm)
Core Type: EQ
Inductance Factor (Al): 250 nH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 76
Effective Area (Ae) mm²: 232
Effective Magnetic Volume (Ve) mm³: 17600
товару немає в наявності
Мінімальне замовлення: 100 шт
В кошику
од. на суму грн.
| DP44229UG |
Виробник: Magnetics, a division of Spang & Co.
Description: DOUBLE SLAB SCP
Packaging: Bulk
Material: P
Length: 1.669" (42.40mm)
Width: 1.118" (28.40mm)
Height: 1.165" (29.60mm)
Core Type: EQ
Inductance Factor (Al): 7 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 76
Effective Area (Ae) mm²: 232
Minimum Core Cross Section (Amin) mm²: 211
Effective Magnetic Volume (Ve) mm³: 17600
Description: DOUBLE SLAB SCP
Packaging: Bulk
Material: P
Length: 1.669" (42.40mm)
Width: 1.118" (28.40mm)
Height: 1.165" (29.60mm)
Core Type: EQ
Inductance Factor (Al): 7 µH
Initial Permeability (µi): 2500
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 76
Effective Area (Ae) mm²: 232
Minimum Core Cross Section (Amin) mm²: 211
Effective Magnetic Volume (Ve) mm³: 17600
товару немає в наявності
Мінімальне замовлення: 150 шт
В кошику
од. на суму грн.
| DW42616UG |
Виробник: Magnetics, a division of Spang & Co.
Description: DOUBLE SLAB SCP
Packaging: Bulk
Material: W
Length: 1.004" (25.50mm)
Width: 0.673" (17.09mm)
Height: 0.634" (16.10mm)
Core Type: EQ
Inductance Factor (Al): 13 µH
Initial Permeability (µi): 10000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 38.9
Effective Area (Ae) mm²: 77
Minimum Core Cross Section (Amin) mm²: 62.7
Effective Magnetic Volume (Ve) mm³: 3000
Description: DOUBLE SLAB SCP
Packaging: Bulk
Material: W
Length: 1.004" (25.50mm)
Width: 0.673" (17.09mm)
Height: 0.634" (16.10mm)
Core Type: EQ
Inductance Factor (Al): 13 µH
Initial Permeability (µi): 10000
Finish: Uncoated
Gap: Ungapped
Effective Length (le) mm: 38.9
Effective Area (Ae) mm²: 77
Minimum Core Cross Section (Amin) mm²: 62.7
Effective Magnetic Volume (Ve) mm³: 3000
товару немає в наявності
Мінімальне замовлення: 444 шт
В кошику
од. на суму грн.
| EQH2014E026L050 |
|
Виробник: Magnetics, a division of Spang & Co.
Description: HIGH FLUX 026 PERM EQ 2014 SIZE
Initial Permeability (µi): 26
Inductance Factor (Al): 81 nH
Core Type: EQ
Height: 0.197" (5.00mm)
Width: 0.551" (14.00mm)
Length: 0.787" (20.00mm)
Material: High Flux
Tolerance: ±8%
Packaging: Bulk
Effective Magnetic Volume (Ve) mm³: 1780
Effective Area (Ae) mm²: 60.8
Effective Length (le) mm: 29.3
Gap: Ungapped
Finish: Uncoated
Description: HIGH FLUX 026 PERM EQ 2014 SIZE
Initial Permeability (µi): 26
Inductance Factor (Al): 81 nH
Core Type: EQ
Height: 0.197" (5.00mm)
Width: 0.551" (14.00mm)
Length: 0.787" (20.00mm)
Material: High Flux
Tolerance: ±8%
Packaging: Bulk
Effective Magnetic Volume (Ve) mm³: 1780
Effective Area (Ae) mm²: 60.8
Effective Length (le) mm: 29.3
Gap: Ungapped
Finish: Uncoated
товару немає в наявності
Мінімальне замовлення: 672 шт
В кошику
од. на суму грн.
