Результат пошуку "0590 0014" : 10

Вид перегляду :
Фото Назва Виробник Інформація Доступність
Ціна

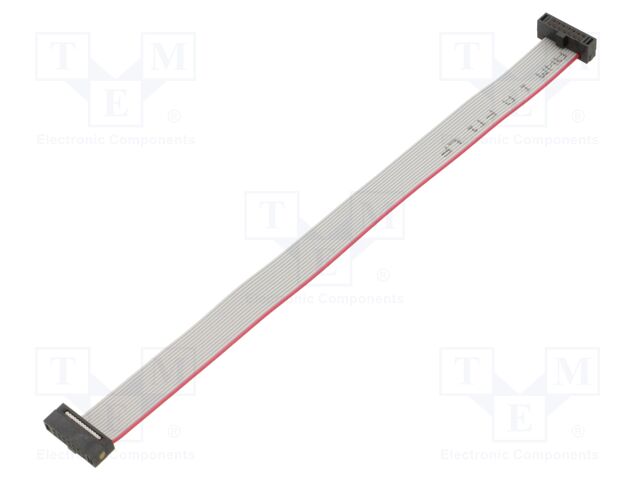

FFSD-07-D-05.90-01-N-R FFSD-07-D-05.90-01-N-R SAMTEC pVersion=0046&contRep=ZT&docId=005056AB281E1FD086ECA799DB2040DC&compId=ffsd-mkt.pdf?ci_sign=364b28d549c370e1079fe97c4fe3da67ba5c7ef4 pVersion=0046&contRep=ZT&docId=005056AB281E1FD086ECA799DAEA20DC&compId=ffsd.pdf?ci_sign=0bfae505030fd0ad0d5422bb78fe1a42f4d3b286 Category: Cables IDC
Description: Ribbon cable with IDC connectors; IDC,both sides; 149.86mm
Cable/adapter structure: both sides; IDC
Contact plating: gold-plated
Insulation colour: grey
Version: polarisation key; reversed
Type of connection cable: ribbon cable with IDC connectors
Shield structure: unshielded
Plating thickness: 10µm
Tape pitch: 0.64mm
Contacts pitch: 1.27mm
Cable length: 149.86mm
Cable length - inch: 5.9"
Number of cores: 14
Cable structure: 14x30AWG
на замовлення 5 шт:
термін постачання 21-30 дні (днів)
1+917.90 грн
В кошику  од. на суму  грн.
0590 0014 0590 0014 TESTO Category: Test Leads - Sets
Description: Test leads; angular banana plug 4mm x2,both sides
Type of test accessories: test leads
Test lead configuration: angular banana plug 4mm x2; both sides
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Standard equipment: test leads ( 2pcs.)
товару немає в наявності
В кошику  од. на суму  грн.
20014059-00 TE Connectivity Acceleration Sensor Modules 64X-2000-590-054
товару немає в наявності
В кошику  од. на суму  грн.

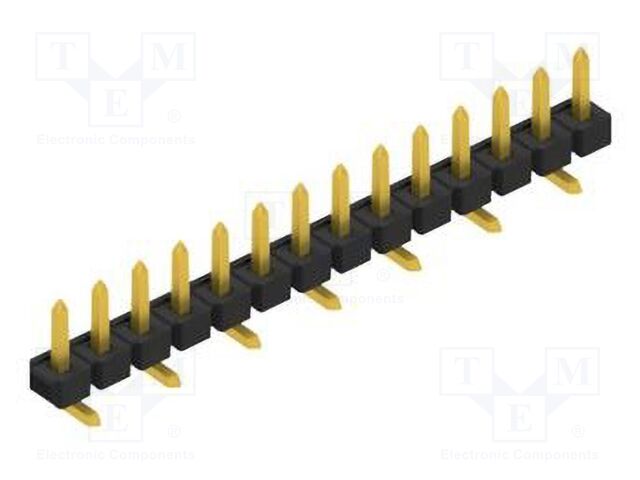

10059037 10059037 FISCHER ELEKTRONIK Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 14; SMT; 3A; 250V; 1x14
Contact material: bronze
Kind of package: bulk
Contact plating: gold-plated
Kind of connector: male
Connector: pin header
Type of connector: pin strips
Body material: polyamide 46
Manufacturer series: SLLP 5 SMD
Electrical mounting: SMT
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Contacts pitch: 2.54mm
Overall length: 6.14mm
Current rating: 3A
Number of pins: 14
Connector pinout layout: 1x14
Rated voltage: 250V
Spatial orientation: angled
Body colour: black
товару немає в наявності
В кошику  од. на суму  грн.
10059038 10059038 FISCHER ELEKTRONIK Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 14; SMT; 3A; 250V; 1x14
Contact material: bronze
Kind of package: bulk
Contact plating: selectively gold plated
Kind of connector: male
Connector: pin header
Type of connector: pin strips
Body material: polyamide 46
Manufacturer series: SLLP 5 SMD
Electrical mounting: SMT
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Contacts pitch: 2.54mm
Overall length: 6.14mm
Current rating: 3A
Number of pins: 14
Connector pinout layout: 1x14
Rated voltage: 250V
Spatial orientation: angled
Body colour: black
товару немає в наявності
В кошику  од. на суму  грн.
10059039 10059039 FISCHER ELEKTRONIK Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 14; SMT; 3A; 250V; 1x14
Contact material: bronze
Kind of package: bulk
Contact plating: tinned
Kind of connector: male
Connector: pin header
Type of connector: pin strips
Body material: polyamide 46
Manufacturer series: SLLP 5 SMD
Electrical mounting: SMT
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Contacts pitch: 2.54mm
Overall length: 6.14mm
Current rating: 3A
Number of pins: 14
Connector pinout layout: 1x14
Rated voltage: 250V
Spatial orientation: angled
Body colour: black
товару немає в наявності
В кошику  од. на суму  грн.
1140590 1140590 BOSSARD pVersion=0046&contRep=ZT&docId=005056AB752F1EE58580535C8D7F6469&compId=BN357.pdf?ci_sign=003523d5e6bc57056351fd92c80d9d9c07a00a37 Category: Bolts
Description: Screw; M4x14; 0.7; Head: countersunk; slotted; 1mm; steel; zinc
Kind of head: countersunk
DIN standard: DIN 963A
ISO standard: ISO 2009
Thread: M4
PN standard: PN 82207
Type of mounting element: screw
Kind of cut: slotted
Material: steel
Plating material: zinc
Cut size: 1mm
Head height: 2.2mm
Head diameter: 7.5mm
Length: 14mm
Thread pitch: 0.7
Strength class: 4.8
BN standard: BN 357
товару немає в наявності
В кошику  од. на суму  грн.
15470590 15470590 Aptiv (formerly Delphi) 4231453633464334304532374332343334444431413237343835333634343939.pdf Automotive Connectors 2.8 Clean Body APEX Female AU Sealed Terminal
товару немає в наявності
В кошику  од. на суму  грн.
15470590-L Aptiv (formerly Delphi) Delphi_Connection_Systems_APEX_2_8.pdf Automotive Connectors APEX2.8 F TERM 16-14AWG SWS AU
товару немає в наявності
В кошику  од. на суму  грн.
FFSD-07-D-05.90-01-N-R pVersion=0046&contRep=ZT&docId=005056AB281E1FD086ECA799DB2040DC&compId=ffsd-mkt.pdf?ci_sign=364b28d549c370e1079fe97c4fe3da67ba5c7ef4 pVersion=0046&contRep=ZT&docId=005056AB281E1FD086ECA799DAEA20DC&compId=ffsd.pdf?ci_sign=0bfae505030fd0ad0d5422bb78fe1a42f4d3b286
FFSD-07-D-05.90-01-N-R
Виробник: SAMTEC
Category: Cables IDC
Description: Ribbon cable with IDC connectors; IDC,both sides; 149.86mm
Cable/adapter structure: both sides; IDC
Contact plating: gold-plated
Insulation colour: grey
Version: polarisation key; reversed
Type of connection cable: ribbon cable with IDC connectors
Shield structure: unshielded
Plating thickness: 10µm
Tape pitch: 0.64mm
Contacts pitch: 1.27mm
Cable length: 149.86mm
Cable length - inch: 5.9"
Number of cores: 14
Cable structure: 14x30AWG
на замовлення 5 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+917.90 грн
В кошику  од. на суму  грн.
0590 0014
0590 0014
Виробник: TESTO
Category: Test Leads - Sets
Description: Test leads; angular banana plug 4mm x2,both sides
Type of test accessories: test leads
Test lead configuration: angular banana plug 4mm x2; both sides
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Standard equipment: test leads ( 2pcs.)
товару немає в наявності
В кошику  од. на суму  грн.
20014059-00
Виробник: TE Connectivity
Acceleration Sensor Modules 64X-2000-590-054
товару немає в наявності
В кошику  од. на суму  грн.
10059037
10059037
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 14; SMT; 3A; 250V; 1x14
Contact material: bronze
Kind of package: bulk
Contact plating: gold-plated
Kind of connector: male
Connector: pin header
Type of connector: pin strips
Body material: polyamide 46
Manufacturer series: SLLP 5 SMD
Electrical mounting: SMT
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Contacts pitch: 2.54mm
Overall length: 6.14mm
Current rating: 3A
Number of pins: 14
Connector pinout layout: 1x14
Rated voltage: 250V
Spatial orientation: angled
Body colour: black
товару немає в наявності
В кошику  од. на суму  грн.
10059038
10059038
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 14; SMT; 3A; 250V; 1x14
Contact material: bronze
Kind of package: bulk
Contact plating: selectively gold plated
Kind of connector: male
Connector: pin header
Type of connector: pin strips
Body material: polyamide 46
Manufacturer series: SLLP 5 SMD
Electrical mounting: SMT
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Contacts pitch: 2.54mm
Overall length: 6.14mm
Current rating: 3A
Number of pins: 14
Connector pinout layout: 1x14
Rated voltage: 250V
Spatial orientation: angled
Body colour: black
товару немає в наявності
В кошику  од. на суму  грн.
10059039
10059039
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 14; SMT; 3A; 250V; 1x14
Contact material: bronze
Kind of package: bulk
Contact plating: tinned
Kind of connector: male
Connector: pin header
Type of connector: pin strips
Body material: polyamide 46
Manufacturer series: SLLP 5 SMD
Electrical mounting: SMT
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Contacts pitch: 2.54mm
Overall length: 6.14mm
Current rating: 3A
Number of pins: 14
Connector pinout layout: 1x14
Rated voltage: 250V
Spatial orientation: angled
Body colour: black
товару немає в наявності
В кошику  од. на суму  грн.
1140590 pVersion=0046&contRep=ZT&docId=005056AB752F1EE58580535C8D7F6469&compId=BN357.pdf?ci_sign=003523d5e6bc57056351fd92c80d9d9c07a00a37
1140590
Виробник: BOSSARD
Category: Bolts
Description: Screw; M4x14; 0.7; Head: countersunk; slotted; 1mm; steel; zinc
Kind of head: countersunk
DIN standard: DIN 963A
ISO standard: ISO 2009
Thread: M4
PN standard: PN 82207
Type of mounting element: screw
Kind of cut: slotted
Material: steel
Plating material: zinc
Cut size: 1mm
Head height: 2.2mm
Head diameter: 7.5mm
Length: 14mm
Thread pitch: 0.7
Strength class: 4.8
BN standard: BN 357
товару немає в наявності
В кошику  од. на суму  грн.
15470590 4231453633464334304532374332343334444431413237343835333634343939.pdf
15470590
Виробник: Aptiv (formerly Delphi)
Automotive Connectors 2.8 Clean Body APEX Female AU Sealed Terminal
товару немає в наявності
В кошику  од. на суму  грн.
15470590-L Delphi_Connection_Systems_APEX_2_8.pdf
Виробник: Aptiv (formerly Delphi)
Automotive Connectors APEX2.8 F TERM 16-14AWG SWS AU
товару немає в наявності
В кошику  од. на суму  грн.
