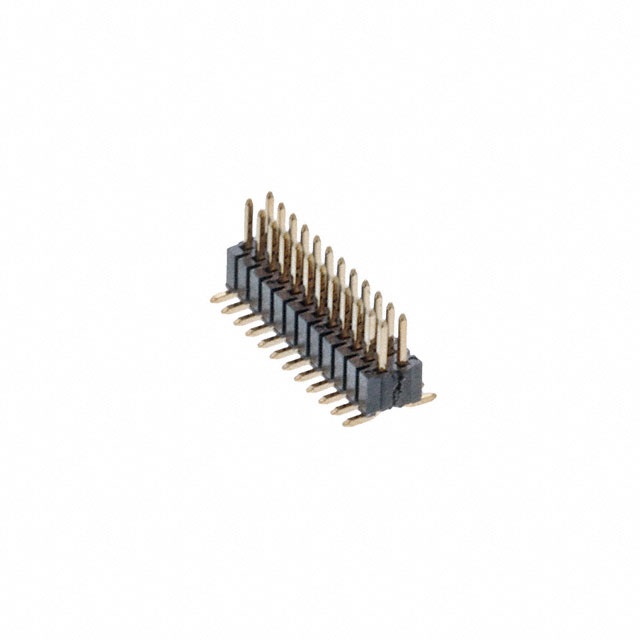

0879332415 Molex

Description: CONN HEADER SMD 24POS 1.27MM, Packaging: Tube, Features: Pick and Place, Connector Type: Header, Breakaway, Voltage Rating: 125V, Current Rating (Amps): 4.3A, Mounting Type: Surface Mount, Number of Positions: 24, Number of Rows: 2, Style: Board to Board, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 2.00µin (0.051µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Square, Insulation Height: 0.099" (2.51mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
