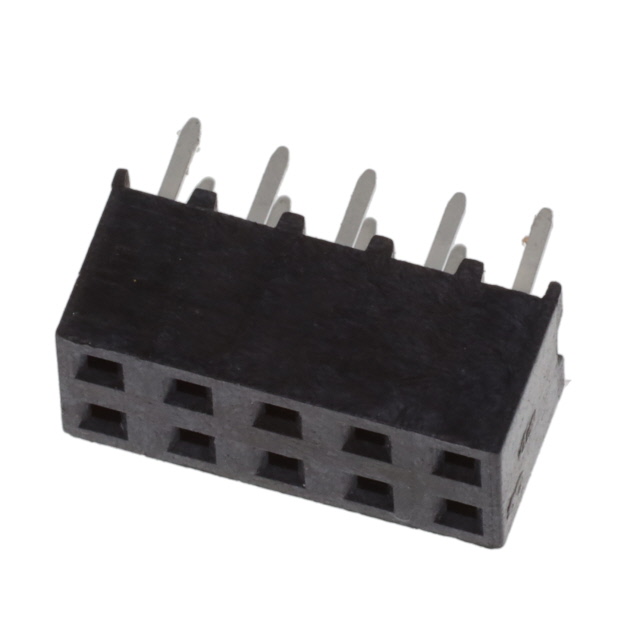

1-2314812-0 TE Connectivity AMP Connectors

Description: 10P,2MM,B-B,REC,DRVT,2.0,0.1AU,T, Features: Pick and Place, Packaging: Tube, Connector Type: Receptacle, Voltage Rating: 125V, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 10, Style: Board to Board, Operating Temperature: -40°C ~ 125°C, Contact Type: Female Socket, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.94µin (0.100µm), Contact Finish - Post: Tin, Part Status: Active, Contact Length - Post: 0.079" (2.00mm), Insulation Height: 0.177" (4.50mm), Row Spacing - Mating: 0.079" (2.00mm), Number of Rows: 2.
