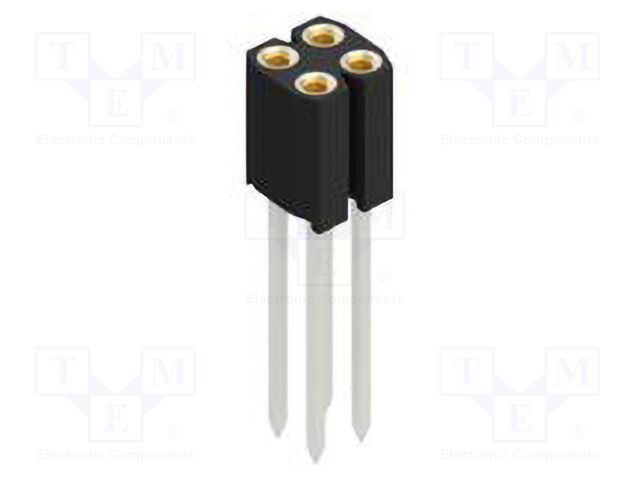

10025488 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 4; BL 10; 3A; 150V; THT, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 4, Manufacturer series: BL 10, Current rating: 3A, Rated voltage: 150V, Spatial orientation: straight, Electrical mounting: THT, Contacts pitch: 2.54mm, Connector pinout layout: 2x2, Contact plating: gold-plated, Flammability rating: UL94V-0, Height: 7mm, Plating thickness: 0.75µm, Contact material: beryllium copper, Overall length: 20.08mm, Operating temperature: -40...163°C, Lead length: 13.08mm, Row pitch: 2.54mm, Connector variant: precision; turned contacts, кількість в упаковці: 1 шт.
