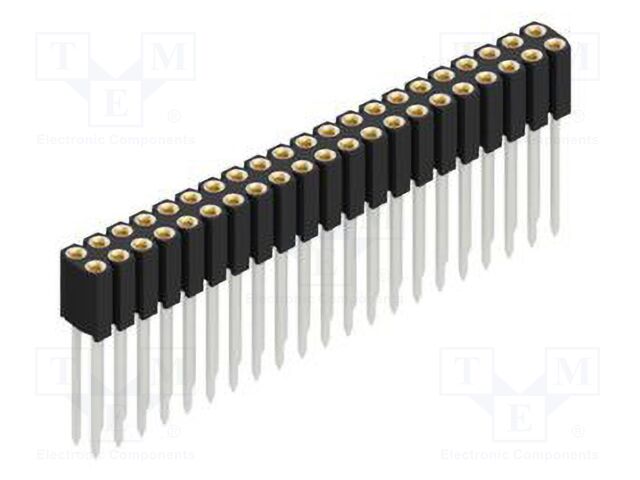

10025507 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 42; THT; 3A; 150V; BL 10, Manufacturer series: BL 10, Contact material: beryllium copper, Operating temperature: -40...163°C, Connector: socket, Spatial orientation: straight, Electrical mounting: THT, Flammability rating: UL94V-0, Plating thickness: 0.75µm, Contacts pitch: 2.54mm, Row pitch: 2.54mm, Connector pinout layout: 2x21, Height: 7mm, Lead length: 13.08mm, Overall length: 20.08mm, Current rating: 3A, Number of pins: 42, Rated voltage: 150V, Kind of connector: female, Contact plating: gold-plated, Type of connector: pin strips, Connector variant: precision; turned contacts, кількість в упаковці: 1 шт.
