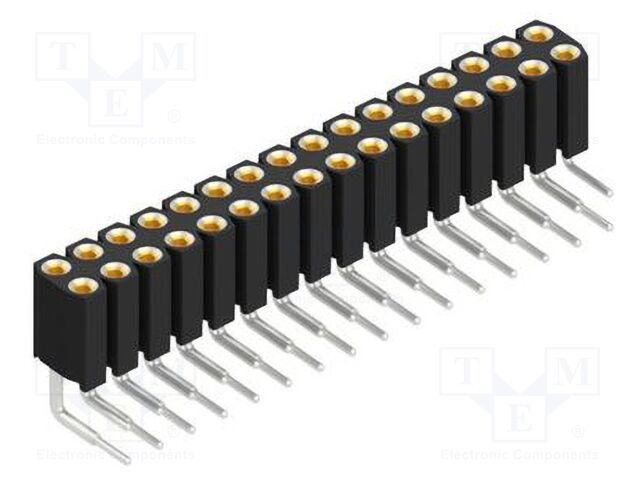

10026853 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 32; THT; 3A; 150V; BL 8
Manufacturer series: BL 8
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Kind of connector: female
Contact plating: gold-plated
Connector: socket
Type of connector: pin strips
Connector variant: precision; turned contacts
Electrical mounting: THT
Plating thickness: 0.75µm
Row pitch: 2.54mm
Contacts pitch: 2.54mm
Height: 5.08mm
Lead length: 3.2mm
Overall length: 8.3mm
Number of pins: 32
Current rating: 3A
Rated voltage: 150V
Connector pinout layout: 2x16
Spatial orientation: angled
Contact material: beryllium copper
кількість в упаковці: 1 шт
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 32; THT; 3A; 150V; BL 8
Manufacturer series: BL 8
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Kind of connector: female
Contact plating: gold-plated
Connector: socket
Type of connector: pin strips
Connector variant: precision; turned contacts
Electrical mounting: THT
Plating thickness: 0.75µm
Row pitch: 2.54mm
Contacts pitch: 2.54mm
Height: 5.08mm
Lead length: 3.2mm
Overall length: 8.3mm
Number of pins: 32
Current rating: 3A
Rated voltage: 150V
Connector pinout layout: 2x16
Spatial orientation: angled
Contact material: beryllium copper
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 10026853 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 32; THT; 3A; 150V; BL 8, Manufacturer series: BL 8, Operating temperature: -40...163°C, Flammability rating: UL94V-0, Kind of connector: female, Contact plating: gold-plated, Connector: socket, Type of connector: pin strips, Connector variant: precision; turned contacts, Electrical mounting: THT, Plating thickness: 0.75µm, Row pitch: 2.54mm, Contacts pitch: 2.54mm, Height: 5.08mm, Lead length: 3.2mm, Overall length: 8.3mm, Number of pins: 32, Current rating: 3A, Rated voltage: 150V, Connector pinout layout: 2x16, Spatial orientation: angled, Contact material: beryllium copper, кількість в упаковці: 1 шт.
Інші пропозиції 10026853
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
|
|
10026853 | Виробник : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; socket; female; PIN: 32; THT; 3A; 150V; BL 8 Manufacturer series: BL 8 Operating temperature: -40...163°C Flammability rating: UL94V-0 Kind of connector: female Contact plating: gold-plated Connector: socket Type of connector: pin strips Connector variant: precision; turned contacts Electrical mounting: THT Plating thickness: 0.75µm Row pitch: 2.54mm Contacts pitch: 2.54mm Height: 5.08mm Lead length: 3.2mm Overall length: 8.3mm Number of pins: 32 Current rating: 3A Rated voltage: 150V Connector pinout layout: 2x16 Spatial orientation: angled Contact material: beryllium copper |
товару немає в наявності |
