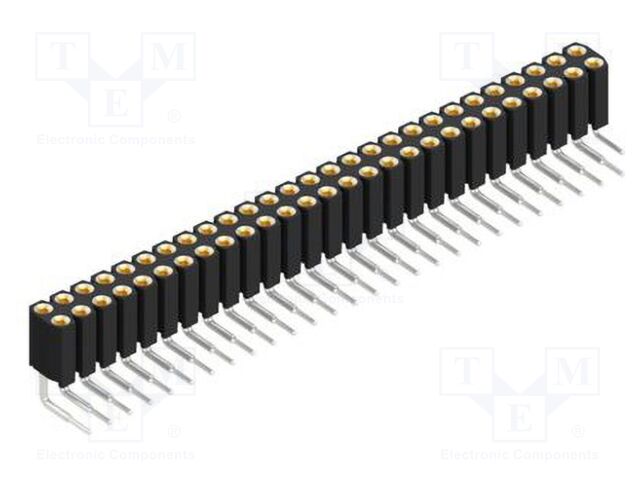

10026864 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 54; BL 8; 3A; 150V; THT, Overall length: 8.3mm, Rated voltage: 150V, Operating temperature: -40...163°C, Current rating: 3A, Flammability rating: UL94V-0, Height: 5.08mm, Number of pins: 54, Contact material: beryllium copper, Connector pinout layout: 2x27, Connector variant: precision; turned contacts, Contacts pitch: 2.54mm, Electrical mounting: THT, Lead length: 3.2mm, Row pitch: 2.54mm, Manufacturer series: BL 8, Plating thickness: 0.75µm, Spatial orientation: angled, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact plating: gold-plated, кількість в упаковці: 1 шт.
