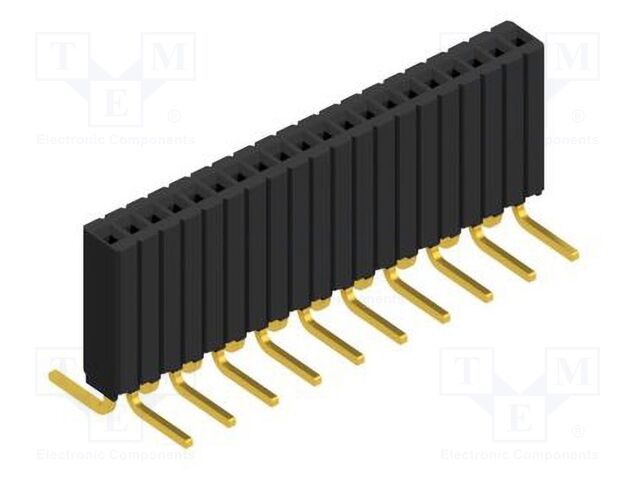

10027160 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 20; BLM 1 SMD; 1.5A
Rated voltage: 125V
Operating temperature: -40...163°C
Current rating: 1.5A
Flammability rating: UL94V-0
Height: 8.5mm
Number of pins: 20
Contact material: bronze
Connector pinout layout: 1x20
Contacts pitch: 1.27mm
Overall length: 10.25mm
Electrical mounting: SMT
Manufacturer series: BLM 1 SMD
Plating thickness: 0.254µm
Spatial orientation: vertical
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
кількість в упаковці: 1 шт
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 20; BLM 1 SMD; 1.5A
Rated voltage: 125V
Operating temperature: -40...163°C
Current rating: 1.5A
Flammability rating: UL94V-0
Height: 8.5mm
Number of pins: 20
Contact material: bronze
Connector pinout layout: 1x20
Contacts pitch: 1.27mm
Overall length: 10.25mm
Electrical mounting: SMT
Manufacturer series: BLM 1 SMD
Plating thickness: 0.254µm
Spatial orientation: vertical
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 10027160 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 20; BLM 1 SMD; 1.5A, Rated voltage: 125V, Operating temperature: -40...163°C, Current rating: 1.5A, Flammability rating: UL94V-0, Height: 8.5mm, Number of pins: 20, Contact material: bronze, Connector pinout layout: 1x20, Contacts pitch: 1.27mm, Overall length: 10.25mm, Electrical mounting: SMT, Manufacturer series: BLM 1 SMD, Plating thickness: 0.254µm, Spatial orientation: vertical, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact plating: gold-plated, кількість в упаковці: 1 шт.
