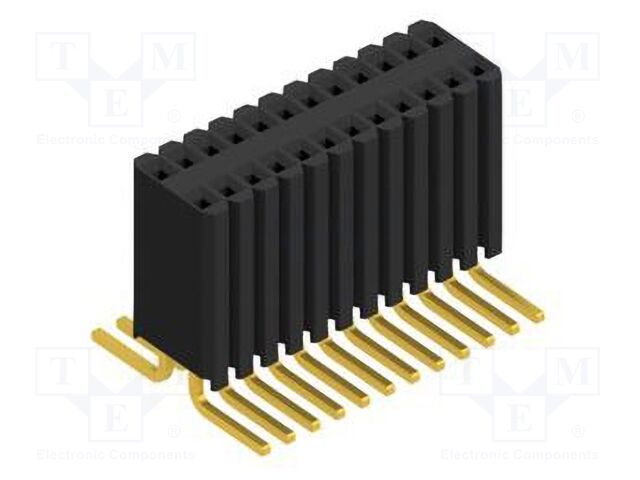

10027174 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 24; SMT; 1.5A; 125V; 2x12
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 24
Electrical mounting: SMT
Current rating: 1.5A
Rated voltage: 125V
Manufacturer series: BLM 2 SMD
Spatial orientation: vertical
Contacts pitch: 1.27mm
Connector pinout layout: 2x12
Contact plating: gold-plated
Row pitch: 1.27mm
Flammability rating: UL94V-0
Height: 10.25mm
Plating thickness: 0.254µm
Contact material: bronze
Operating temperature: -40...163°C
кількість в упаковці: 1 шт
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 24; SMT; 1.5A; 125V; 2x12
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 24
Electrical mounting: SMT
Current rating: 1.5A
Rated voltage: 125V
Manufacturer series: BLM 2 SMD
Spatial orientation: vertical
Contacts pitch: 1.27mm
Connector pinout layout: 2x12
Contact plating: gold-plated
Row pitch: 1.27mm
Flammability rating: UL94V-0
Height: 10.25mm
Plating thickness: 0.254µm
Contact material: bronze
Operating temperature: -40...163°C
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 10027174 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 24; SMT; 1.5A; 125V; 2x12, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 24, Electrical mounting: SMT, Current rating: 1.5A, Rated voltage: 125V, Manufacturer series: BLM 2 SMD, Spatial orientation: vertical, Contacts pitch: 1.27mm, Connector pinout layout: 2x12, Contact plating: gold-plated, Row pitch: 1.27mm, Flammability rating: UL94V-0, Height: 10.25mm, Plating thickness: 0.254µm, Contact material: bronze, Operating temperature: -40...163°C, кількість в упаковці: 1 шт.
