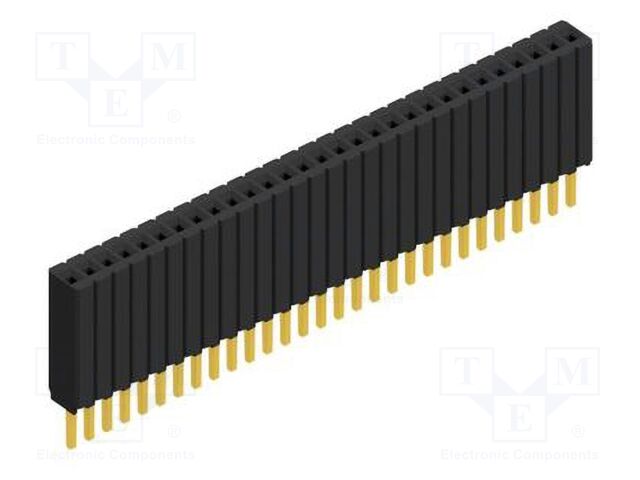

10027275 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 29; BLM KG 1; 1.5A; 125V, Manufacturer series: BLM KG 1, Operating temperature: -40...163°C, Flammability rating: UL94V-0, Current rating: 1.5A, Rated voltage: 125V, Height: 8.5mm, Number of pins: 29, Contact material: bronze, Connector pinout layout: 1x29, Contacts pitch: 1.27mm, Contact plating: gold-plated, Overall length: 11.5mm, Electrical mounting: THT, Lead length: 3mm, Kind of connector: female, Connector: socket, Type of connector: pin strips, Plating thickness: 0.254µm, Spatial orientation: straight, кількість в упаковці: 1 шт.
