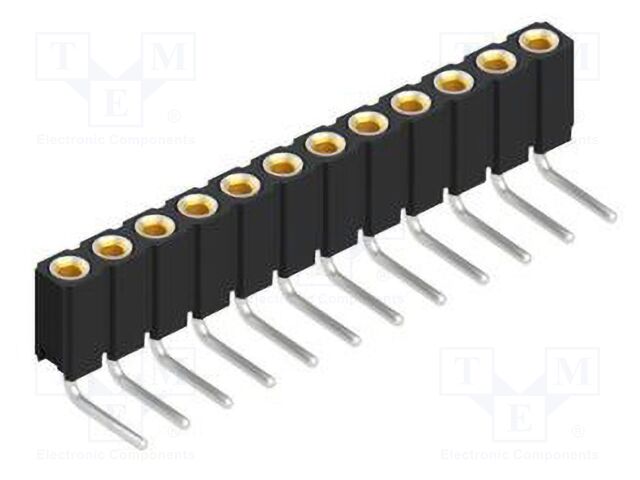

10027740 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 12; BLY 3; 2.5A; 100V, Rated voltage: 100V, Operating temperature: -40...163°C, Leads dimensions: L 3.3mm, Current rating: 2.5A, Flammability rating: UL94V-0, Height: 2mm, Number of pins: 12, Contact material: beryllium copper, Connector pinout layout: 1x12, Connector variant: precision; turned contacts, Contacts pitch: 2mm, Overall length: 5.3mm, Electrical mounting: THT, Manufacturer series: BLY 3, Plating thickness: 0.254µm, Spatial orientation: angled, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact plating: gold-plated, кількість в упаковці: 1 шт.
