10040297 FISCHER ELEKTRONIK

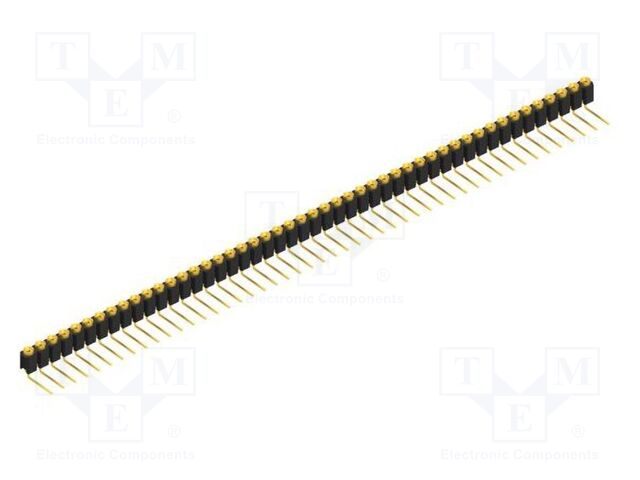

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 48; MK 06; 1.5A; 60V, Operating temperature: -40...163°C, Contact plating: gold-plated, Manufacturer series: MK 06, Type of connector: pin strips, Connector: socket, Connector variant: precision; turned contacts, Electrical mounting: THT, Flammability rating: UL94V-0, Plating thickness: 0.75µm, Contacts pitch: 2.54mm, Height: 2.6mm, Lead length: 4.9mm, Overall length: 7.5mm, Contact material: beryllium copper, Spatial orientation: angled, Current rating: 1.5A, Number of pins: 48, Rated voltage: 60V, Kind of connector: female, Connector pinout layout: 1x48, кількість в упаковці: 1 шт.
