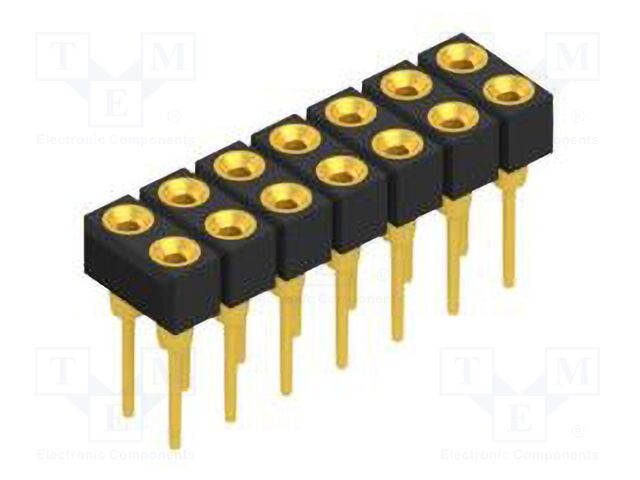

10042487 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 14; MK 217; 1.5A; 60V, Operating temperature: -40...163°C, Flammability rating: UL94V-0, Height: 3.9mm, Spatial orientation: straight, Contact material: beryllium copper, Type of connector: pin strips, Electrical mounting: THT, Kind of connector: female, Contact plating: gold-plated, Connector: socket, Connector variant: precision; turned contacts, Plating thickness: 0.75µm, Contacts pitch: 2.54mm, Row pitch: 2.54mm, Lead length: 4.6mm, Overall length: 8.5mm, Current rating: 1.5A, Number of pins: 14, Rated voltage: 60V, Connector pinout layout: 2x7, Manufacturer series: MK 217, кількість в упаковці: 1 шт.
