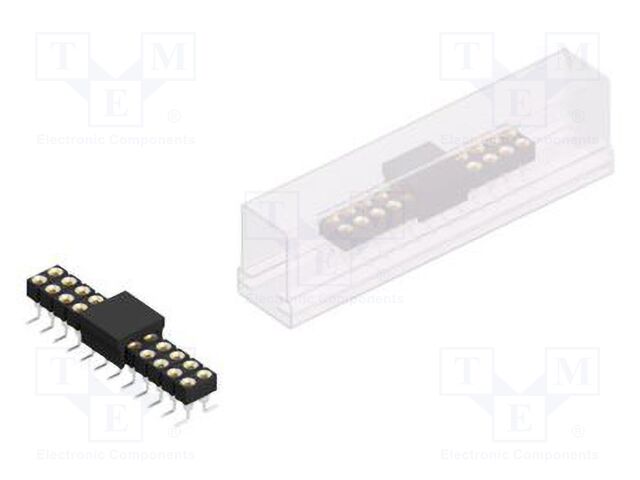

10042679 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 24; MK 223 SMD; 1.5A
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 24
Manufacturer series: MK 223 SMD
Current rating: 1.5A
Rated voltage: 60V
Spatial orientation: straight
Electrical mounting: SMT
Contacts pitch: 2.54mm
Connector pinout layout: 2x12
Contact plating: gold-plated
Connector variant: pick and place; precision; turned contacts
Kind of package: tube
Row pitch: 2.54mm
Flammability rating: UL94V-0
Plating thickness: 0.254µm
Contact material: beryllium copper
Overall length: 5.8mm
Operating temperature: -40...163°C
Lead length: 2.1mm
кількість в упаковці: 1 шт
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 24; MK 223 SMD; 1.5A
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 24
Manufacturer series: MK 223 SMD
Current rating: 1.5A
Rated voltage: 60V
Spatial orientation: straight
Electrical mounting: SMT
Contacts pitch: 2.54mm
Connector pinout layout: 2x12
Contact plating: gold-plated
Connector variant: pick and place; precision; turned contacts
Kind of package: tube
Row pitch: 2.54mm
Flammability rating: UL94V-0
Plating thickness: 0.254µm
Contact material: beryllium copper
Overall length: 5.8mm
Operating temperature: -40...163°C
Lead length: 2.1mm
кількість в упаковці: 1 шт
