1005-572

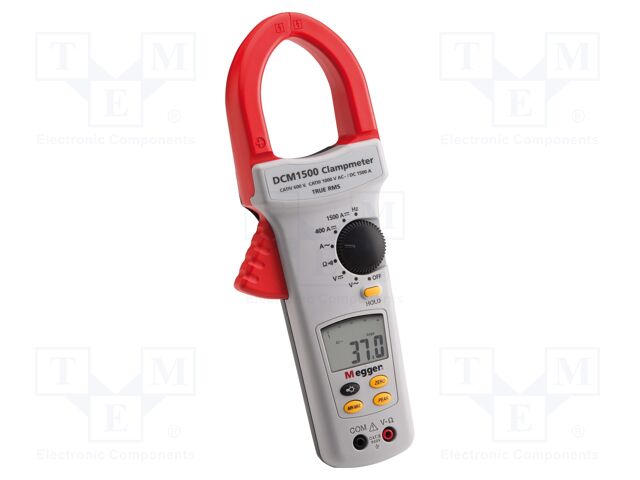

1005-572 MEGGER

pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA7894F2B8DA400C7&compId=DCM1500_DS_en.pdf?ci_sign=c8689484e93277d3a6e4627dc64175570f31eb1e pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA7894F2B8DA580C7&compId=DCM1500_UG_en-fr-es-de-nl.pdf?ci_sign=00d33542d260db0a1f7745a2f645923fcc22b846 Виробник: MEGGER
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 51mm; LCD
Type of meter: multifunction
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; frequency; resistance
Kind of display used: LCD
Display parameters: 3,75 digit (3999)
DC voltage measuring range: 400V; 1kV
DC voltage measuring accuracy: ±(0.7% + 2 digit)
AC voltage measuring range: 400V; 750V
AC voltage measuring accuracy: ±(1% + 5 digit)
DC current measuring range: 400A; 1kA; 1.5kA
DC current measuring accuracy: ±(1% + 3 digit)
AC current measuring range: 400A; 1kA; 1.5kA
AC current measuring accuracy: ±(1.5% + 5 digit)
True effective value measurement: True RMS
Resistance measuring range: 0...400Ω
Frequency measuring range: 20...400Hz
Frequency measuring accuracy: ±(1%+2 digit)
Resistance measuring accuracy: ±(1%+3 digit)
Continuity test: acoustic indication; <30Ω
Weight with battery: 524g
Power supply: battery 6LR61 9V x1
Standard equipment: soft case; test leads; user's manual
Conform to the norm: CAT IV 600V; EN 61010
Measuring instrument features: automatic power-off; HOLD function; MIN/MAX function; PEAK function; REL function
Battery/ rechargeable battery: battery 6LR61 9V x1
Kind of meter: digital; pincers type
Bandwidth for AC voltage measurements: 50...500Hz
Bandwidth for AC current measurements: 50...200Hz
Dimensions: 105x275x48mm
Max. diameter of measured cable: 51mm
