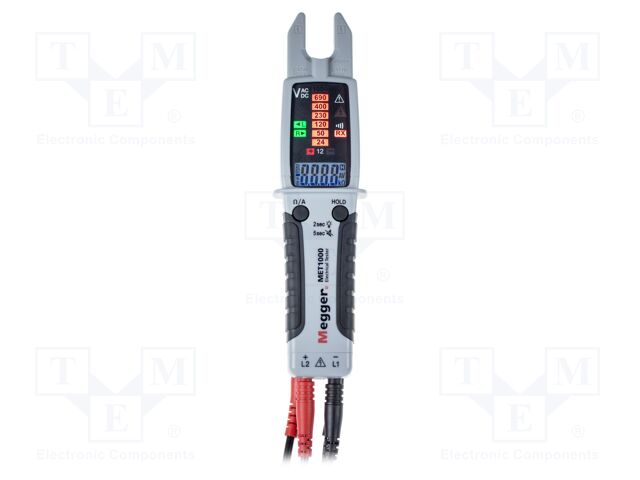

1013-099 MEGGER
Виробник: MEGGER
Category: Multimeters for Electrical Installations
Description: Tester: electrical; LCD,LED; 4 digit (9999); VAC: 6÷999.9V; IP65
Type of tester: electrical
Kind of display used: LCD; LED
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Measuring instrument features: automatic power-off; HOLD function; indicates phase sequence
Bandwidth for AC voltage measurements: 45...400Hz
Power supply: battery LR03 AAA 1,5V x2
DC voltage measuring accuracy: ±(1% + 2 digit)
Standard equipment: soft case; test leads
Bandwidth for AC current measurements: 45...65Hz
Continuity test: acoustic indication; <1.8kΩ
DC voltage measuring range: 7...999.9V
AC current measuring accuracy: ±(3% + 5 digit)
Sampling: 3x/s
Dimensions: 220x57x35mm
AC voltage measuring range: 6...999.9V
Resistance measuring range: 1Ω...50kΩ
Resistance measuring accuracy: ±(1.5%+5 digit)
AC voltage measuring accuracy: ±(1.5% + 5 digit)
Additional functions: white LED torch
IP rating: IP65
Measurement: AC current; AC voltage; continuity; DC voltage; inrush current; phase sequence; resistance
Display parameters: 4 digit (9999)
AC current measuring range: 100mA...200A
Phase-to-phase voltage range for phase sequence indication: 0.09...1kV AC
