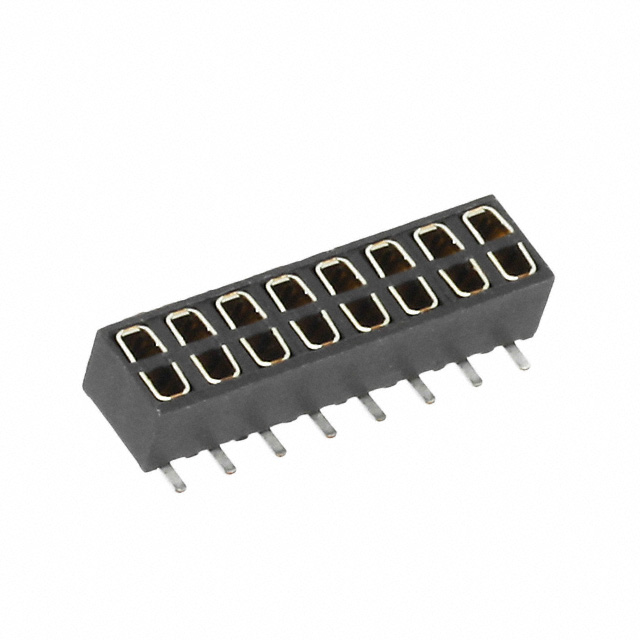

153216-2020-RB 3M Electronic Solutions Division

Description: CONN RCPT 16POS 0.079 GOLD SMD, Number of Rows: 2, Row Spacing - Mating: 0.079" (2.00mm), Insulation Height: 0.129" (3.28mm), Part Status: Obsolete, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Female Socket, Operating Temperature: -55°C ~ 105°C, Style: Board to Board or Cable, Number of Positions: 16, Mounting Type: Surface Mount, Current Rating (Amps): 1A, Voltage Rating: 500VDC, Connector Type: Receptacle, Bottom or Top Entry, Features: Board Guide, Packaging: Tray.
