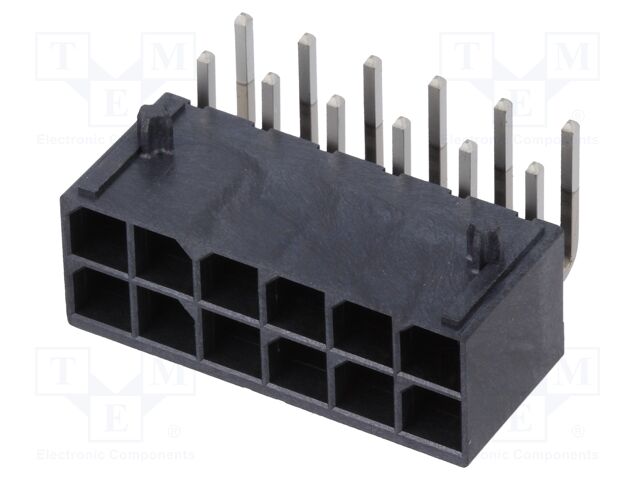

1720640012 Molex
Виробник: Molex
Description: CONN HEADER R/A 12POS 5.7MM
Packaging: Tray
Features: Board Guide, Glow Wire Compliant
Connector Type: Header
Mounting Type: Through Hole, Right Angle
Number of Positions: 12
Number of Rows: 2
Style: Board to Cable/Wire
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper
Insulation Color: Black
Pitch - Mating: 0.224" (5.70mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.142" (3.60mm)
Insulation Height: 0.572" (14.53mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.224" (5.70mm)
Description: CONN HEADER R/A 12POS 5.7MM
Packaging: Tray
Features: Board Guide, Glow Wire Compliant
Connector Type: Header
Mounting Type: Through Hole, Right Angle
Number of Positions: 12
Number of Rows: 2
Style: Board to Cable/Wire
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper
Insulation Color: Black
Pitch - Mating: 0.224" (5.70mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.142" (3.60mm)
Insulation Height: 0.572" (14.53mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.224" (5.70mm)
на замовлення 888 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
1+ | 468.69 грн |
10+ | 394.93 грн |
400+ | 319.72 грн |
Відгуки про товар
Написати відгук
Технічний опис 1720640012 Molex
Description: CONN HEADER R/A 12POS 5.7MM, Packaging: Tray, Features: Board Guide, Glow Wire Compliant, Connector Type: Header, Mounting Type: Through Hole, Right Angle, Number of Positions: 12, Number of Rows: 2, Style: Board to Cable/Wire, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper, Insulation Color: Black, Pitch - Mating: 0.224" (5.70mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.142" (3.60mm), Insulation Height: 0.572" (14.53mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.224" (5.70mm).
Інші пропозиції 1720640012 за ціною від 676.79 грн до 1440.63 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1720640012 | Виробник : MOLEX |
Category: Raster signal connectors 5,70mm Description: Socket; wire-board; male; Mega-Fit; 5.7mm; PIN: 12; UL94V-0; 23A Operating temperature: -40...105°C Maximum current: 23A Flammability rating: UL94V-0 Connector variant: Glow-Wire Contacts pitch: 5.7mm Number of pins: 12 Colour: black Connector series: Mega-Fit Mechanical mounting: on PCBs; PCB snap Electrical mounting: THT Connector pinout layout: 2x6 Type of connector: wire-board Locking system: latch Conform to the norm: EN 60335-1 Kind of connector: male Connector: socket Contact plating: gold-plated Spatial orientation: angled 90° Rated voltage: 600V |
на замовлення 1 шт: термін постачання 21-30 дні (днів) |
|
|||||||||
1720640012 | Виробник : MOLEX |
Category: Raster signal connectors 5,70mm Description: Socket; wire-board; male; Mega-Fit; 5.7mm; PIN: 12; UL94V-0; 23A Operating temperature: -40...105°C Maximum current: 23A Flammability rating: UL94V-0 Connector variant: Glow-Wire Contacts pitch: 5.7mm Number of pins: 12 Colour: black Connector series: Mega-Fit Mechanical mounting: on PCBs; PCB snap Electrical mounting: THT Connector pinout layout: 2x6 Type of connector: wire-board Locking system: latch Conform to the norm: EN 60335-1 Kind of connector: male Connector: socket Contact plating: gold-plated Spatial orientation: angled 90° Rated voltage: 600V кількість в упаковці: 1 шт |
на замовлення 1 шт: термін постачання 7-14 дні (днів) |
|
|||||||||
172064-0012 | Виробник : Molex | Headers & Wire Housings Mega-Fit RA Hdr Assy 12 ckt 15u" Au |
на замовлення 148 шт: термін постачання 21-30 дні (днів) |
