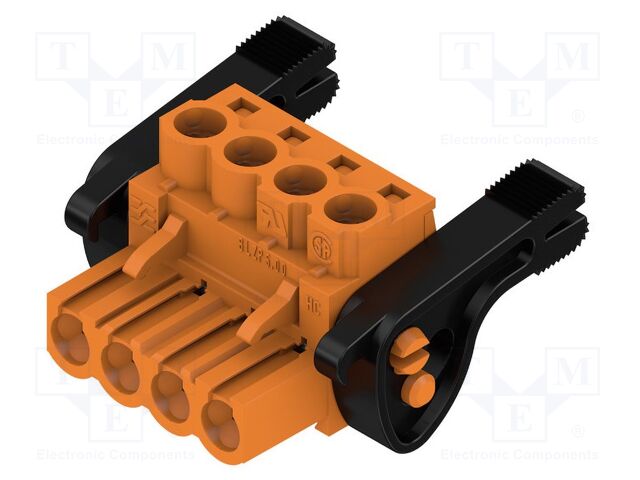

1956350000 WEIDMÜLLER
Виробник: WEIDMÜLLER
Category: Pluggable terminal blocks
Description: Socket; female; 23A; 400V; PIN: 4; straight; Contacts: copper alloy
Operating temperature: -50...100°C
Flammability rating: UL94V-0
Number of pins: 4
Contact material: copper alloy
Spatial orientation: straight
Connector: socket
Kind of connector: female
Contact plating: tinned
Rated voltage: 400V
Current rating: 23A
Category: Pluggable terminal blocks
Description: Socket; female; 23A; 400V; PIN: 4; straight; Contacts: copper alloy
Operating temperature: -50...100°C
Flammability rating: UL94V-0
Number of pins: 4
Contact material: copper alloy
Spatial orientation: straight
Connector: socket
Kind of connector: female
Contact plating: tinned
Rated voltage: 400V
Current rating: 23A
на замовлення 120 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 57+ | 290.50 грн |
Відгуки про товар
Написати відгук
Технічний опис 1956350000 WEIDMÜLLER
Description: TERM BLOCK PLUG 4POS STR 5MM, Packaging: Bulk, Features: Ejector Latches, Retention Latches (Non-Wire Side), Color: Orange, Mounting Type: Free Hanging (In-Line), Number of Positions: 4, Pitch: 0.197" (5.00mm), Type: Plug, Female Sockets, Operating Temperature: -50°C ~ 100°C, Termination Style: Screw - Clamping Yoke (Tension Sleeve), Current - IEC: 23A, Number of Levels: 1, Wire Gauge or Range - AWG: 12-30 AWG, Wire Gauge or Range - mm²: 0.2-4mm², Positions Per Level: 4, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Current - UL: 20 A, Voltage - IEC: 400 V, Voltage - UL: 300 V.
Інші пропозиції 1956350000
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| 1956350000 | Виробник : WEIDMЬLLER | 1956350000-WEI-0 Pluggable terminal blocks |
товару немає в наявності |
||
 |
1956350000 | Виробник : Weidmüller |
Description: TERM BLOCK PLUG 4POS STR 5MM Packaging: Bulk Features: Ejector Latches, Retention Latches (Non-Wire Side) Color: Orange Mounting Type: Free Hanging (In-Line) Number of Positions: 4 Pitch: 0.197" (5.00mm) Type: Plug, Female Sockets Operating Temperature: -50°C ~ 100°C Termination Style: Screw - Clamping Yoke (Tension Sleeve) Current - IEC: 23A Number of Levels: 1 Wire Gauge or Range - AWG: 12-30 AWG Wire Gauge or Range - mm²: 0.2-4mm² Positions Per Level: 4 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - IEC: 400 V Voltage - UL: 300 V |
товару немає в наявності |
|
 |
1956350000 | Виробник : Weidmuller |
 Pluggable Terminal Blocks BLZP 5.00HC/04/180LR SN OR BX |
товару немає в наявності |
