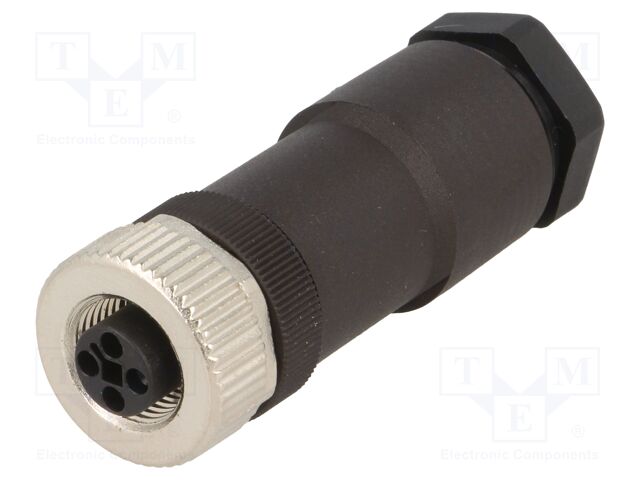

22262011 LAPP
Виробник: LAPPCategory: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; female; straight; IP67; screw terminal
Polarisation: T code - Power
Mechanical mounting: for cable
IP rating: IP67
Connector: plug
Spatial orientation: straight
Operating temperature: -40...85°C
Cable external diameter: 8...10mm
Number of pins: 4
Maximum current: 12A
Wire cross-section: 0.75...1.5mm2
Type of connector: M12
Electrical mounting: screw terminal
Locking system: internal thread
Kind of connector: female
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 22262011 LAPP
Category: M12 plugs and sockets, Description: Connector: M12; plug; PIN: 4; female; straight; IP67; screw terminal, Polarisation: T code - Power, Mechanical mounting: for cable, IP rating: IP67, Connector: plug, Spatial orientation: straight, Operating temperature: -40...85°C, Cable external diameter: 8...10mm, Number of pins: 4, Maximum current: 12A, Wire cross-section: 0.75...1.5mm2, Type of connector: M12, Electrical mounting: screw terminal, Locking system: internal thread, Kind of connector: female.
