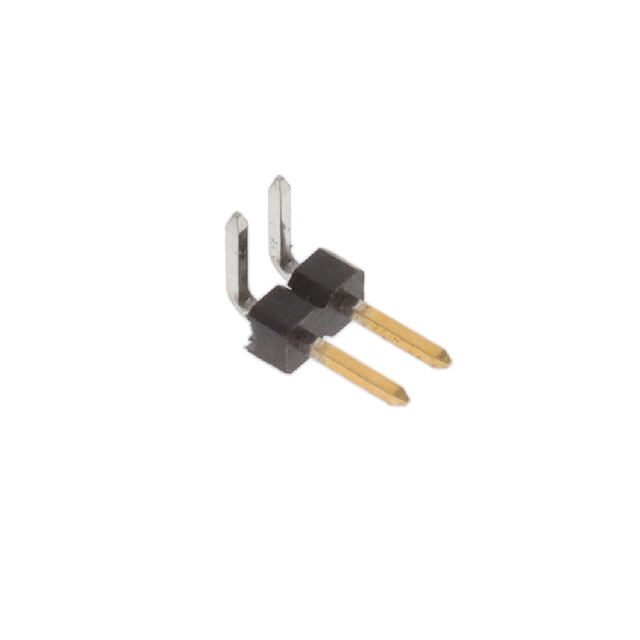

2842123-2 TE Connectivity AMP Connectors

Description: 2P,2MM,BRK HDR,SRRT,2.8,0.38AU,B, Contact Length - Mating: 0.157" (4.00mm), Insulation Material: Thermoplastic, Shrouding: Unshrouded, Insulation Height: 0.059" (1.50mm), Contact Length - Post: 0.110" (2.79mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black, Contact Material: Copper Alloy, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -40°C ~ 125°C, Style: Board to Board, Number of Rows: 1, Number of Positions: 2, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 2A, Voltage Rating: 125VAC/DC, Connector Type: Header, Breakaway, Packaging: Bulk.
