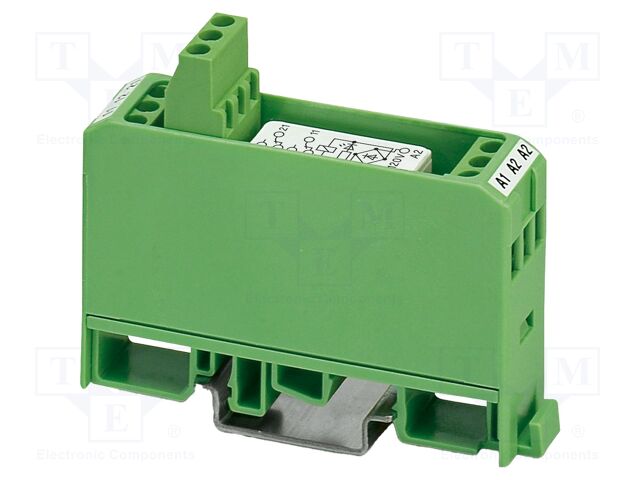

2940414 PHOENIX CONTACT

Category: Electromagnetic Relays - Sets
Description: Relay: interface; DPDT; Ucoil: 60VAC,60VDC; 5A; 5A/250VAC
Contacts configuration: DPDT
Mounting: for DIN rail mounting
Type of relay: interface
Electrical connection: screw terminals
Operating temperature: -20...40°C
Body dimensions: 62.5x17.5x75mm
Max. operating current: 5A
AC contacts rating @R: 5A / 250V AC
DC contacts rating @R: 5A / 250V DC
Rated coil voltage: 60V AC; 60V DC
Switched voltage: max. 250V AC; max. 250V DC
Mechanical durability: 50000000 cycles
Contact material: AgNi
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 2940414 PHOENIX CONTACT
Category: Electromagnetic Relays - Sets, Description: Relay: interface; DPDT; Ucoil: 60VAC,60VDC; 5A; 5A/250VAC, Contacts configuration: DPDT, Mounting: for DIN rail mounting, Type of relay: interface, Electrical connection: screw terminals, Operating temperature: -20...40°C, Body dimensions: 62.5x17.5x75mm, Max. operating current: 5A, AC contacts rating @R: 5A / 250V AC, DC contacts rating @R: 5A / 250V DC, Rated coil voltage: 60V AC; 60V DC, Switched voltage: max. 250V AC; max. 250V DC, Mechanical durability: 50000000 cycles, Contact material: AgNi, кількість в упаковці: 1 шт.
Інші пропозиції 2940414
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
---|---|---|---|---|---|
![]() |
2940414 | Виробник : Phoenix Contact |
![]() |
товару немає в наявності |
|
![]() |
2940414 | Виробник : PHOENIX CONTACT |
![]() Description: Relay: interface; DPDT; Ucoil: 60VAC,60VDC; 5A; 5A/250VAC Contacts configuration: DPDT Mounting: for DIN rail mounting Type of relay: interface Electrical connection: screw terminals Operating temperature: -20...40°C Body dimensions: 62.5x17.5x75mm Max. operating current: 5A AC contacts rating @R: 5A / 250V AC DC contacts rating @R: 5A / 250V DC Rated coil voltage: 60V AC; 60V DC Switched voltage: max. 250V AC; max. 250V DC Mechanical durability: 50000000 cycles Contact material: AgNi |
товару немає в наявності |
