2CMA166506R1000

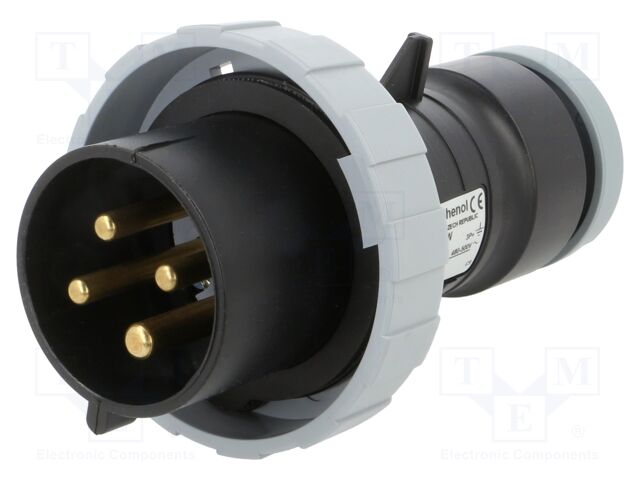

2CMA166506R1000 AMPHENOL

pVersion=0046&contRep=ZT&docId=005056AB281E1FD082AB0FD2F85EC0DC&compId=2CMA166506R1000_datasheet.pdf?ci_sign=db41bd7a70f36e7ff69821407e04ac7b2cedf289 Виробник: AMPHENOL
Category: Industrial IEC 60309 connectors
Description: Connector: AC supply 3-phase; plug; male; 32A; 500VAC; IP&S; IP69K
Manufacturer series: IP&S
Kind of connector: male
Mechanical mounting: for cable
Standard: IEC 60309
IP rating: IP69K
Operating temperature: -25...40°C
Wire cross-section: 2.5...6mm2
Number of pins: 4
Wire size: 12AWG...10AWG
Current rating: 32A
Rated voltage: 500V AC
Connector pinout layout: 3P+PE
Polarisation: 7H
Type of connector: AC supply 3-phase
Spatial orientation: straight
Contact material: brass
Connector: plug
Electrical mounting: screw terminal
на замовлення 5 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+3603.55 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис 2CMA166506R1000 AMPHENOL

Category: Industrial IEC 60309 connectors, Description: Connector: AC supply 3-phase; plug; male; 32A; 500VAC; IP&S; IP69K, Manufacturer series: IP&S, Kind of connector: male, Mechanical mounting: for cable, Standard: IEC 60309, IP rating: IP69K, Operating temperature: -25...40°C, Wire cross-section: 2.5...6mm2, Number of pins: 4, Wire size: 12AWG...10AWG, Current rating: 32A, Rated voltage: 500V AC, Connector pinout layout: 3P+PE, Polarisation: 7H, Type of connector: AC supply 3-phase, Spatial orientation: straight, Contact material: brass, Connector: plug, Electrical mounting: screw terminal.
