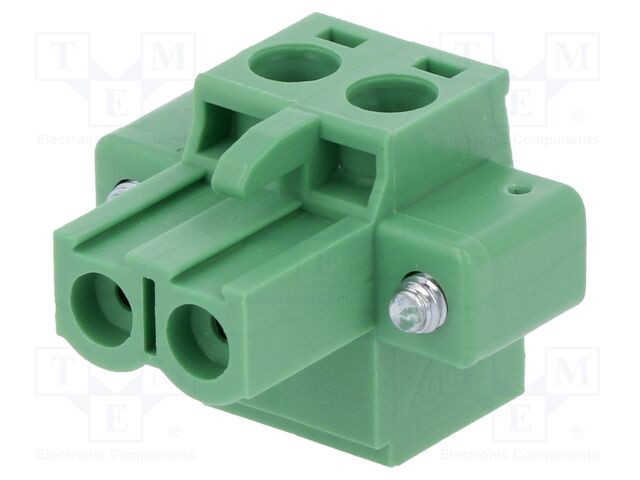

2EDGKFM-5.0-02P-14-00AH DEGSON ELECTRONICS
Виробник: DEGSON ELECTRONICS
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; ways: 2; straight; plug; female
Operating temperature: -40...105°C
Spatial orientation: straight
Conform to the norm: CE; UL
Connector: plug
Contact material: phosphor bronze
Kind of connector: female
Contacts pitch: 5mm
Wire cross-section: 2.5mm2
Wire size: 28AWG...12AWG
Locking system: latch; screws
Type of connector: pluggable terminal block
Colour: green
Electrical mounting: screw terminal
Mechanical mounting: for cable
Number of ways: 2
Number of terminals: 2
Connector pinout layout: 1x2
Rated voltage: 320V
Current rating: 20A
Flammability rating: UL94V-0
Body material: polyamide 66
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; ways: 2; straight; plug; female
Operating temperature: -40...105°C
Spatial orientation: straight
Conform to the norm: CE; UL
Connector: plug
Contact material: phosphor bronze
Kind of connector: female
Contacts pitch: 5mm
Wire cross-section: 2.5mm2
Wire size: 28AWG...12AWG
Locking system: latch; screws
Type of connector: pluggable terminal block
Colour: green
Electrical mounting: screw terminal
Mechanical mounting: for cable
Number of ways: 2
Number of terminals: 2
Connector pinout layout: 1x2
Rated voltage: 320V
Current rating: 20A
Flammability rating: UL94V-0
Body material: polyamide 66
на замовлення 282 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
8+ | 52.16 грн |
24+ | 33.63 грн |
66+ | 31.76 грн |
Відгуки про товар
Написати відгук
Технічний опис 2EDGKFM-5.0-02P-14-00AH DEGSON ELECTRONICS
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 5mm; ways: 2; straight; plug; female, Operating temperature: -40...105°C, Spatial orientation: straight, Conform to the norm: CE; UL, Connector: plug, Contact material: phosphor bronze, Kind of connector: female, Contacts pitch: 5mm, Wire cross-section: 2.5mm2, Wire size: 28AWG...12AWG, Locking system: latch; screws, Type of connector: pluggable terminal block, Colour: green, Electrical mounting: screw terminal, Mechanical mounting: for cable, Number of ways: 2, Number of terminals: 2, Connector pinout layout: 1x2, Rated voltage: 320V, Current rating: 20A, Flammability rating: UL94V-0, Body material: polyamide 66, кількість в упаковці: 1 шт.
Інші пропозиції 2EDGKFM-5.0-02P-14-00AH за ціною від 35.26 грн до 62.59 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2EDGKFM-5.0-02P-14-00AH | Виробник : DEGSON ELECTRONICS |
Category: Pluggable terminal blocks Description: Pluggable terminal block; 5mm; ways: 2; straight; plug; female Operating temperature: -40...105°C Spatial orientation: straight Conform to the norm: CE; UL Connector: plug Contact material: phosphor bronze Kind of connector: female Contacts pitch: 5mm Wire cross-section: 2.5mm2 Wire size: 28AWG...12AWG Locking system: latch; screws Type of connector: pluggable terminal block Colour: green Electrical mounting: screw terminal Mechanical mounting: for cable Number of ways: 2 Number of terminals: 2 Connector pinout layout: 1x2 Rated voltage: 320V Current rating: 20A Flammability rating: UL94V-0 Body material: polyamide 66 кількість в упаковці: 1 шт |
на замовлення 282 шт: термін постачання 7-14 дні (днів) |
|
|||||||||
2EDGKFM5.0-02P1400AH | Виробник : DEGSON |
2 poles, pitch 5.0mm, height 18.2mm, green color 320V, 20A, PA66, UL94V-0, M2.5 2EDGKFM-5.0-02P-14-00AH DEGSON Terminal block Z2EDGKFM-5.0/02 кількість в упаковці: 3 шт |
на замовлення 15 шт: термін постачання 28-31 дні (днів) |
|
