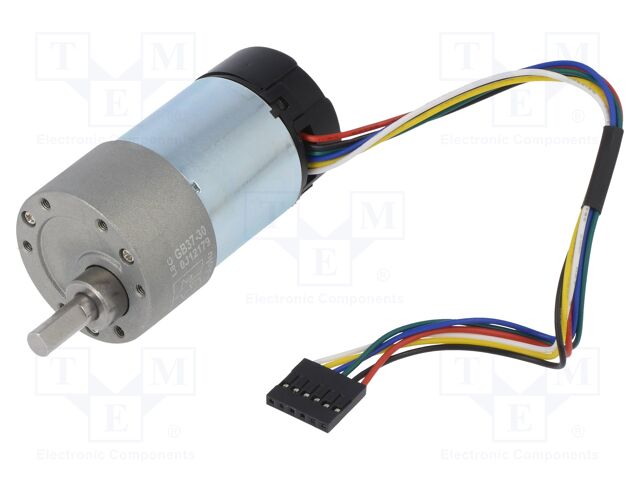

30:1 METAL GEARMOTOR 37DX68L 24V 64 CPR POLOLU
Виробник: POLOLU
Category: DC Motors
Description: Motor: DC; with gearbox; 24VDC; 3A; Shaft: D spring; 330rpm; 30: 1
Diameter: 37mm
Body dimensions: Ø37x68mm
Supply voltage: 24V DC
Torque: max. 0.186Nm
Shaft surface: D spring
Max. operating current: 3A
Resolution: 64imp/revol.
Shaft diameter: 6mm
Gear: 30:1
Type of motor: DC
Kind of motor: with gearbox
Nominal rot. speed measured after gear: 330rpm
Kind of sensor: encoder
Information: product is not a working device, but only component
кількість в упаковці: 1 шт
Category: DC Motors
Description: Motor: DC; with gearbox; 24VDC; 3A; Shaft: D spring; 330rpm; 30: 1
Diameter: 37mm
Body dimensions: Ø37x68mm
Supply voltage: 24V DC
Torque: max. 0.186Nm
Shaft surface: D spring
Max. operating current: 3A
Resolution: 64imp/revol.
Shaft diameter: 6mm
Gear: 30:1
Type of motor: DC
Kind of motor: with gearbox
Nominal rot. speed measured after gear: 330rpm
Kind of sensor: encoder
Information: product is not a working device, but only component
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 30:1 METAL GEARMOTOR 37DX68L 24V 64 CPR POLOLU
Category: DC Motors, Description: Motor: DC; with gearbox; 24VDC; 3A; Shaft: D spring; 330rpm; 30: 1, Diameter: 37mm, Body dimensions: Ø37x68mm, Supply voltage: 24V DC, Torque: max. 0.186Nm, Shaft surface: D spring, Max. operating current: 3A, Resolution: 64imp/revol., Shaft diameter: 6mm, Gear: 30:1, Type of motor: DC, Kind of motor: with gearbox, Nominal rot. speed measured after gear: 330rpm, Kind of sensor: encoder, Information: product is not a working device, but only component, кількість в упаковці: 1 шт.
