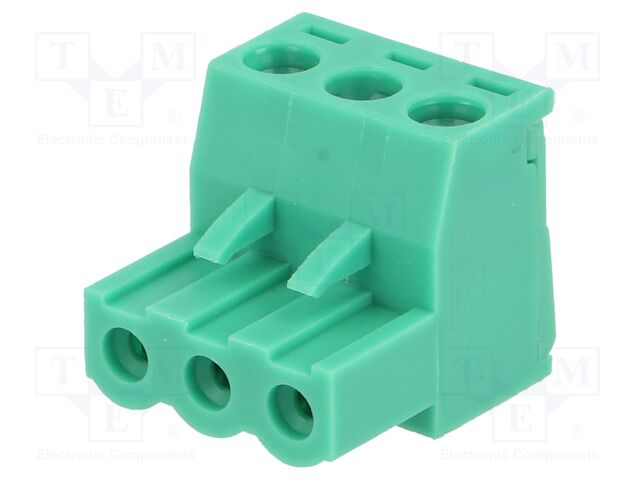

326-031-14 KARSON
Виробник: KARSONCategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 11A; 300V; 1x3
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 11A
Rated voltage: 0.3kV
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact material: brass
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 24AWG...12AWG
Connector pinout layout: 1x3
Wire cross-section: 0.5...2.5mm2
Contacts pitch: 5mm
Number of ways: 3
Locking system: friction lock
Conform to the norm: UL
Number of terminals: 3
Operating temperature: -40...105°C
на замовлення 372 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 6+ | 80.56 грн |
| 10+ | 56.56 грн |
| 50+ | 45.87 грн |
| 200+ | 40.61 грн |
Відгуки про товар
Написати відгук
Технічний опис 326-031-14 KARSON
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 11A; 300V; 1x3, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 11A, Rated voltage: 0.3kV, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact material: brass, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 24AWG...12AWG, Connector pinout layout: 1x3, Wire cross-section: 0.5...2.5mm2, Contacts pitch: 5mm, Number of ways: 3, Locking system: friction lock, Conform to the norm: UL, Number of terminals: 3, Operating temperature: -40...105°C, кількість в упаковці: 1 шт.
