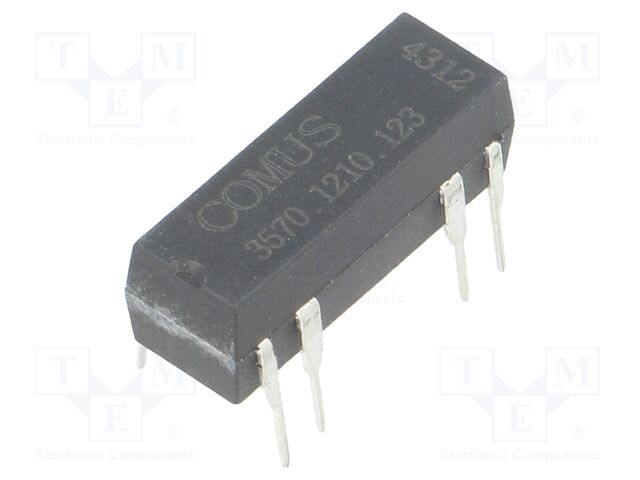

3570.1210.123 COMUS
Виробник: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Case: DIP14
Body dimensions: 19.5x6.9x6.9mm
Coil resistance: 1kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Rated coil voltage: 12V DC
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Optional equipment: diode
Manufacturer series: 3570
Mounting: THT
Terminal pitch: 2.54mm
Operating temperature: -20...85°C
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 3570.1210.123 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W, Case: DIP14, Body dimensions: 19.5x6.9x6.9mm, Coil resistance: 1kΩ, Contacts configuration: SPST-NO, Type of relay: reed switch, Rated coil voltage: 12V DC, Coil voltage min.: 9V DC, Coil voltage max.: 16V DC, Switched voltage: max. 150V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.15Ω, Optional equipment: diode, Manufacturer series: 3570, Mounting: THT, Terminal pitch: 2.54mm, Operating temperature: -20...85°C, кількість в упаковці: 1 шт.
