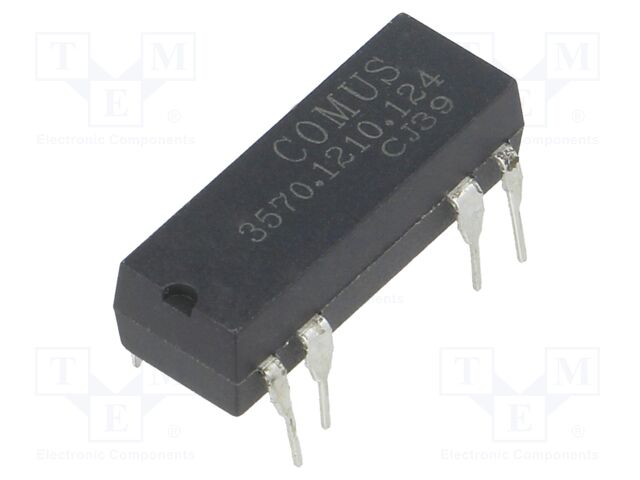

3570.1210.124 COMUS
Виробник: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Mounting: THT
Operating temperature: -20...85°C
Terminal pitch: 2.54mm
Body dimensions: 19.5x6.9x6.9mm
Contact resistance: 0.15Ω
Contact current max.: 0.5A
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Coil voltage max.: 16V DC
Switching capacity: 10W
Switched voltage: max. 150V DC
Manufacturer series: 3570
Coil resistance: 1kΩ
Optional equipment: diode; electrostatic shield
Case: DIP14
Contacts configuration: SPST-NO
Type of relay: reed switch
на замовлення 173 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 134.27 грн |
| 100+ | 112.21 грн |
Відгуки про товар
Написати відгук
Технічний опис 3570.1210.124 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W, Mounting: THT, Operating temperature: -20...85°C, Terminal pitch: 2.54mm, Body dimensions: 19.5x6.9x6.9mm, Contact resistance: 0.15Ω, Contact current max.: 0.5A, Coil voltage min.: 9V DC, Rated coil voltage: 12V DC, Coil voltage max.: 16V DC, Switching capacity: 10W, Switched voltage: max. 150V DC, Manufacturer series: 3570, Coil resistance: 1kΩ, Optional equipment: diode; electrostatic shield, Case: DIP14, Contacts configuration: SPST-NO, Type of relay: reed switch, кількість в упаковці: 1 шт.
