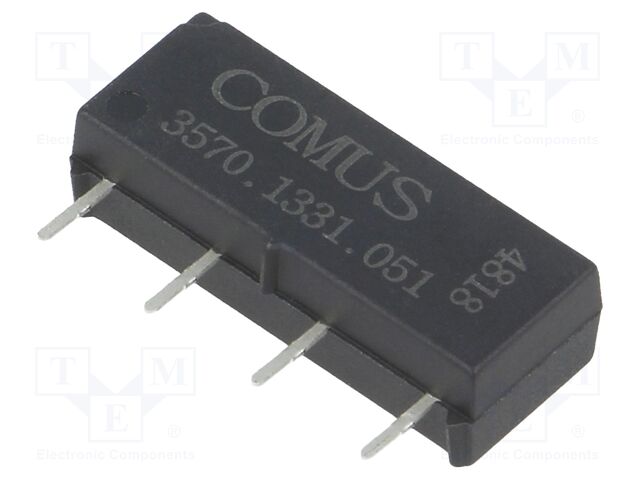

3570.1331.051 COMUS
Виробник: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W
Mounting: THT
Case: SIP
Coil voltage max.: 7V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.2Ω
Manufacturer series: 3570
Type of relay: reed switch
Body dimensions: 19x7.7x5.08mm
Terminal pitch: 5.08mm
Coil resistance: 500Ω
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 3570.1331.051 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W, Mounting: THT, Case: SIP, Coil voltage max.: 7V DC, Switched voltage: max. 150V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.2Ω, Manufacturer series: 3570, Type of relay: reed switch, Body dimensions: 19x7.7x5.08mm, Terminal pitch: 5.08mm, Coil resistance: 500Ω, Contacts configuration: SPST-NO, Operating temperature: -40...85°C, Rated coil voltage: 5V DC, Coil voltage min.: 3.75V DC, кількість в упаковці: 1 шт.
