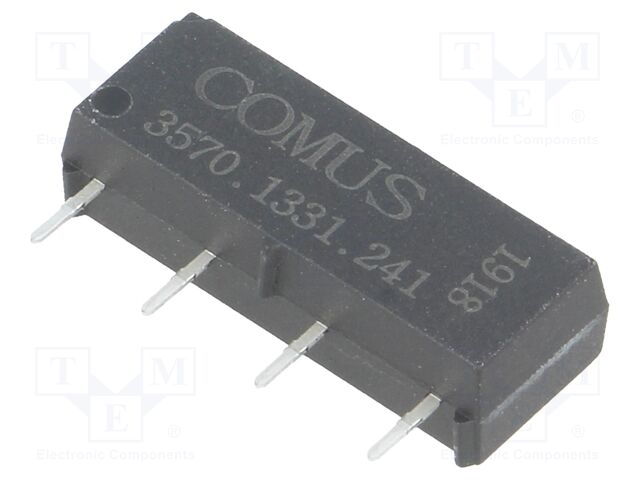

3570.1331.241 COMUS
Виробник: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W
Operating temperature: -40...85°C
Contacts configuration: SPST-NO
Switching capacity: 10W
Switched voltage: max. 150V DC
Coil voltage max.: 32V DC
Case: SIP
Rated coil voltage: 24V DC
Contact resistance: 0.2Ω
Type of relay: reed switch
Terminal pitch: 5.08mm
Mounting: THT
Coil resistance: 2kΩ
Coil voltage min.: 18V DC
Manufacturer series: 3570
Contact current max.: 0.5A
Body dimensions: 19x7.7x5.08mm
| Кількість | Ціна без ПДВ |
|---|---|
| 4+ | 144.08 грн |
| 100+ | 122.15 грн |
Відгуки про товар
Написати відгук
Технічний опис 3570.1331.241 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W, Operating temperature: -40...85°C, Contacts configuration: SPST-NO, Switching capacity: 10W, Switched voltage: max. 150V DC, Coil voltage max.: 32V DC, Case: SIP, Rated coil voltage: 24V DC, Contact resistance: 0.2Ω, Type of relay: reed switch, Terminal pitch: 5.08mm, Mounting: THT, Coil resistance: 2kΩ, Coil voltage min.: 18V DC, Manufacturer series: 3570, Contact current max.: 0.5A, Body dimensions: 19x7.7x5.08mm.
