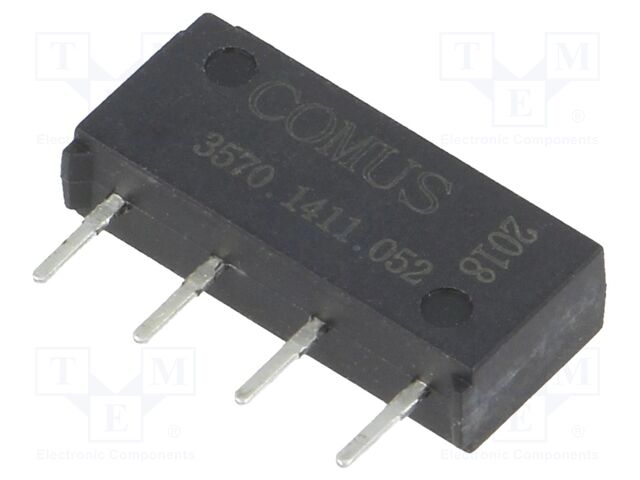

3570.1411.052 COMUS
Виробник: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W
Mounting: THT
Case: SIP
Coil voltage max.: 7V DC
Switched voltage: max. 200V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Relay features: high reliability
Optional equipment: electrostatic shield
Manufacturer series: 3570
Type of relay: reed switch
Body dimensions: 15.24x6.98x3.81mm
Terminal pitch: 3.81mm
Coil resistance: 500Ω
Contacts configuration: SPST-NO
Operating temperature: -40...85°C
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
на замовлення 66 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 146.90 грн |
| 8+ | 124.91 грн |
| 20+ | 118.02 грн |
